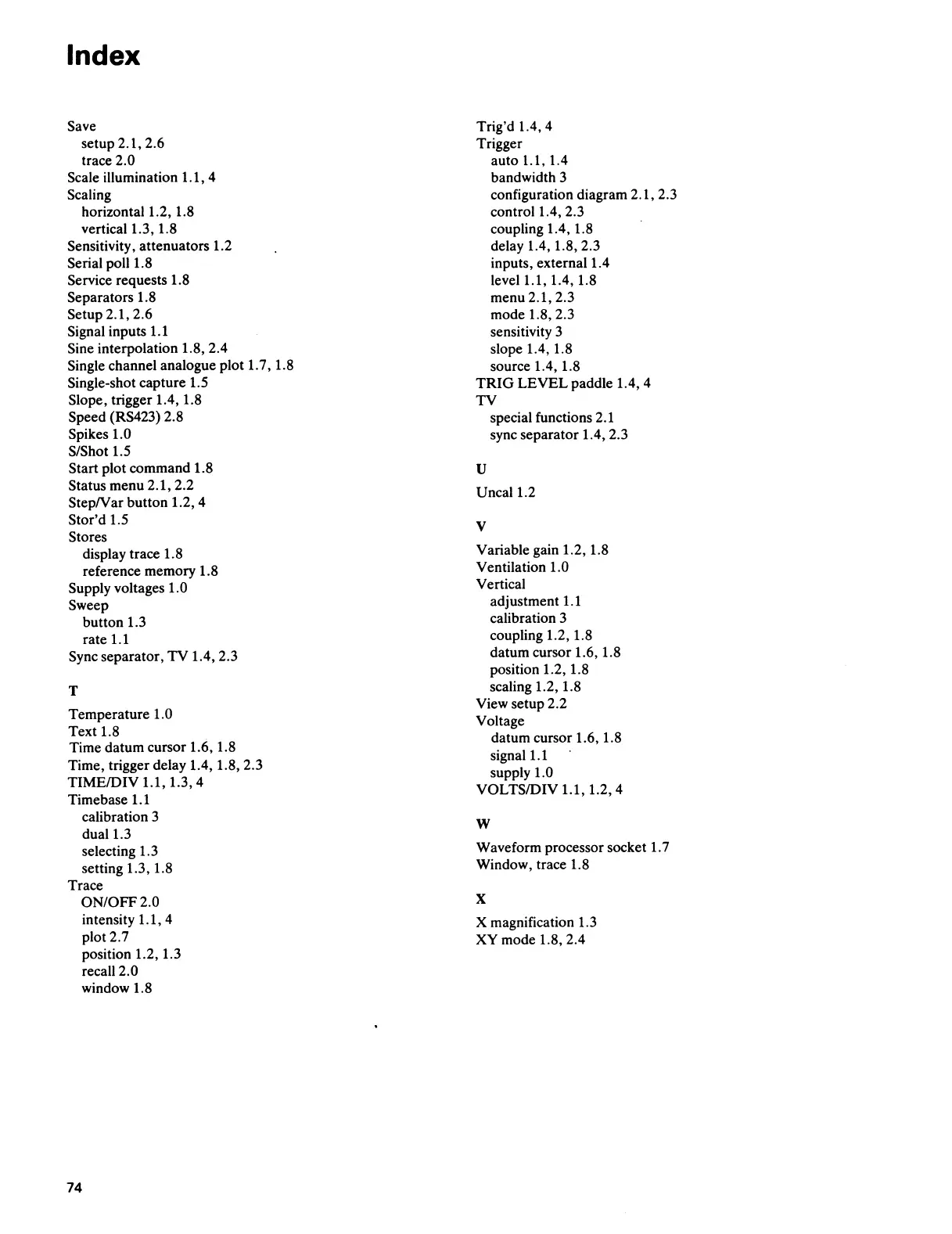

Gould 4070 - Page 74

Index
Save
setup 2.1, 2.6
trace
2.0
Scale illumination 1.1, 4
Scaling
horizontal 1.2, 1.8
vertical 1.3, 1.8
Sensitivity, attenuators 1.2
Serial poll 1.8
Service requests 1.8
Separators 1.8
Setup 2.1, 2.6
Signal inputs 1.1
Sine interpolation 1.8, 2.4
Single channel analogue plot
1. 7, 1.8
Single-shot capture 1.5
Slope, trigger 1.4, 1.8
Speed (RS423) 2.8
Spikes 1.0
S/Shot
1.5
Start plot command 1.8
Status menu 2.1, 2.2
StepNar button 1.2, 4
Stor'd 1.5
Stores
display trace 1.8
reference memory 1.8
Supply voltages
1.0
Sweep
button 1.3
rate 1.1
Sync separator, TV 1.4, 2.3
T
Temperature 1.0
Text 1.8
Time datum cursor 1.6, 1.8
Time, trigger delay 1.4, 1.8, 2.3
TIME/DIV
1.1, 1.3, 4
Timebase 1.1
calibration 3
dual 1.3
selecting 1.3
setting 1.3, 1.8
Trace
ON/OFF2.0
intensity 1.1, 4
plot 2.7
position 1.2, 1.3
recall
2.0
window 1.8
74
Trig'd 1.4, 4
Trigger
auto 1.1, 1.4
bandwidth 3
configuration diagram 2.1, 2.3
control 1.4, 2.3
coupling 1.4, 1.8
delay 1.4, 1.8, 2.3
inputs, external 1.4
level
1.1, 1.4, 1.8
menu 2.1, 2.3
mode 1.8, 2.3
sensitivity 3
slope 1.4, 1.8
source 1.4, 1.8
TRIG LEVEL paddle 1.4, 4
TV
u
special functions 2.1
sync separator 1.4, 2.3
Uncal 1.2
v
Variable gain 1.2, 1.8
Ventilation
1.0
Vertical
adjustment 1.1
calibration 3
coupling 1.2, 1.8
datum cursor 1.6, 1.8
position 1.2, 1.8
scaling 1.2, 1.8
View setup 2.2
Voltage
datum cursor 1.6, 1.8
signal
1.1
supply 1.0
VOLTS/DIV
1.1, 1.2, 4
w
Waveform processor socket 1. 7
Window, trace 1.8
x
X magnification 1.3
XY mode 1.8, 2.4
