Goulds MODEL VIT - Typical Drawings

7
DISCHARGE HEAD ASSEMBLY
ITEM DESCRIPTION
600 DISCHARGE HEAD
601 MOTOR SUPPORT
608 HEADSHAFT
610 COUPLING ASSEMBLY
616 SEAL HOUSING
617 SEAL HOUSING BEARING
620 MECHANICAL SEAL
637 COLUMN FLANGE
779 SEAL HOUSING GASKET
COLUMN ASSEMBLY
642 COLUMN PIPE
645 COLUMN COUPLING
646 LINESHAFT
649 LINESHAFT COUPLING
652 BEARING RETAINER
656 LINESHAFT BEARING
BOWL ASSEMBLY
660 BOWL SHAFT
661 DISCHARGE BOWL
664 DISCHARGE BEARING
670 INTERMEDIATE BOWL
672 INTERMEDIATE BOWL BEARING
673 IMPELLER
677 TAPERLOCK
680 WEAR RING (OPTIONAL)
760 HEX BOLT
692 SAND COLLAR
688 SUCTION BOWL/BELL
690 SUCTION BEARING
698 SUCTION STRAINER
747 PLUG

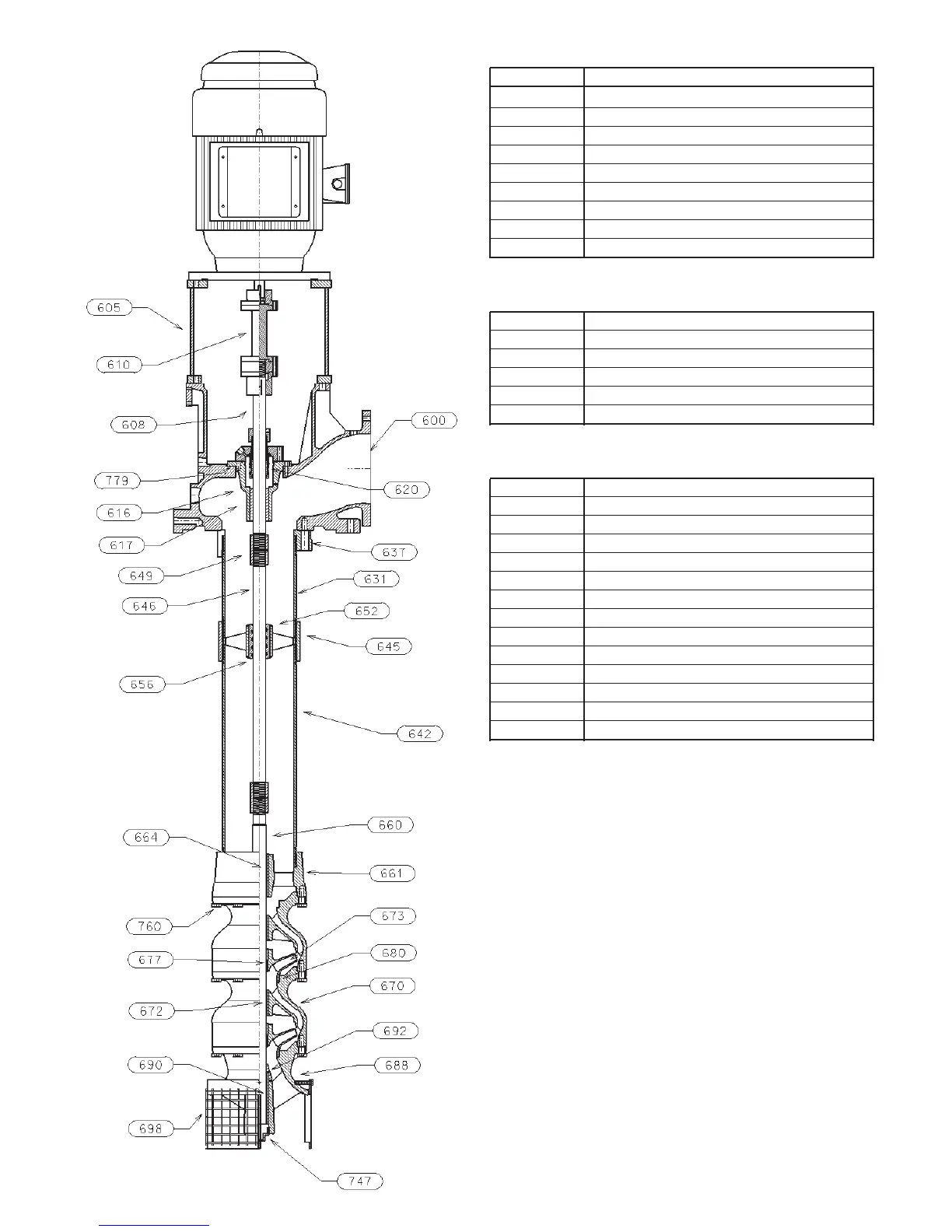

Figure 1 Open Lineshaft Pump with
Threaded Column Pipe
