WARNING
When placing your oven it is important
to maintain proper clearances from
combustible construction. Ensure Arc
has 30cm clearance (back and sides)
and 100cm clearance (front and top)
from any combustible construction.
Under no circumstances is the oven
to be placed under or on top of any
combustible structure.
Always keep the area around the oven
clear of any combustible materials,
gasoline and other flammable vapors
and liquids.
When deciding where to place Arc ensure
the area is large enough to accommodate
the oven with 2” (50mm) around the base
of the dock for air intake. It is important
nothing is blocking this area as this will
affect the performance of Arc.

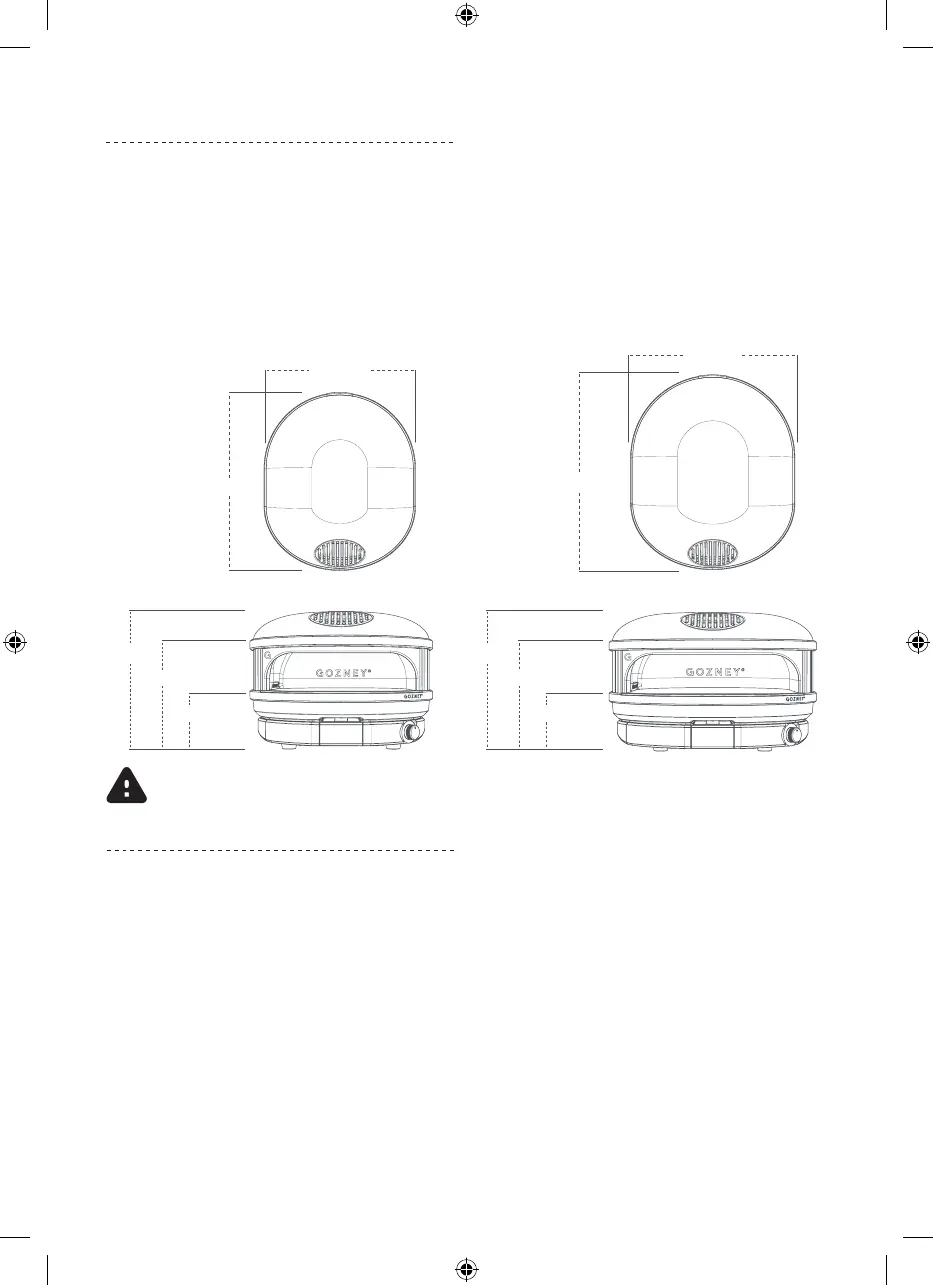

OVEN PLACEMENT
142mm 142mm
342mm342mm
304mm
480mm
530mm
564mm
629mm
Arc Arc XL
307mm
