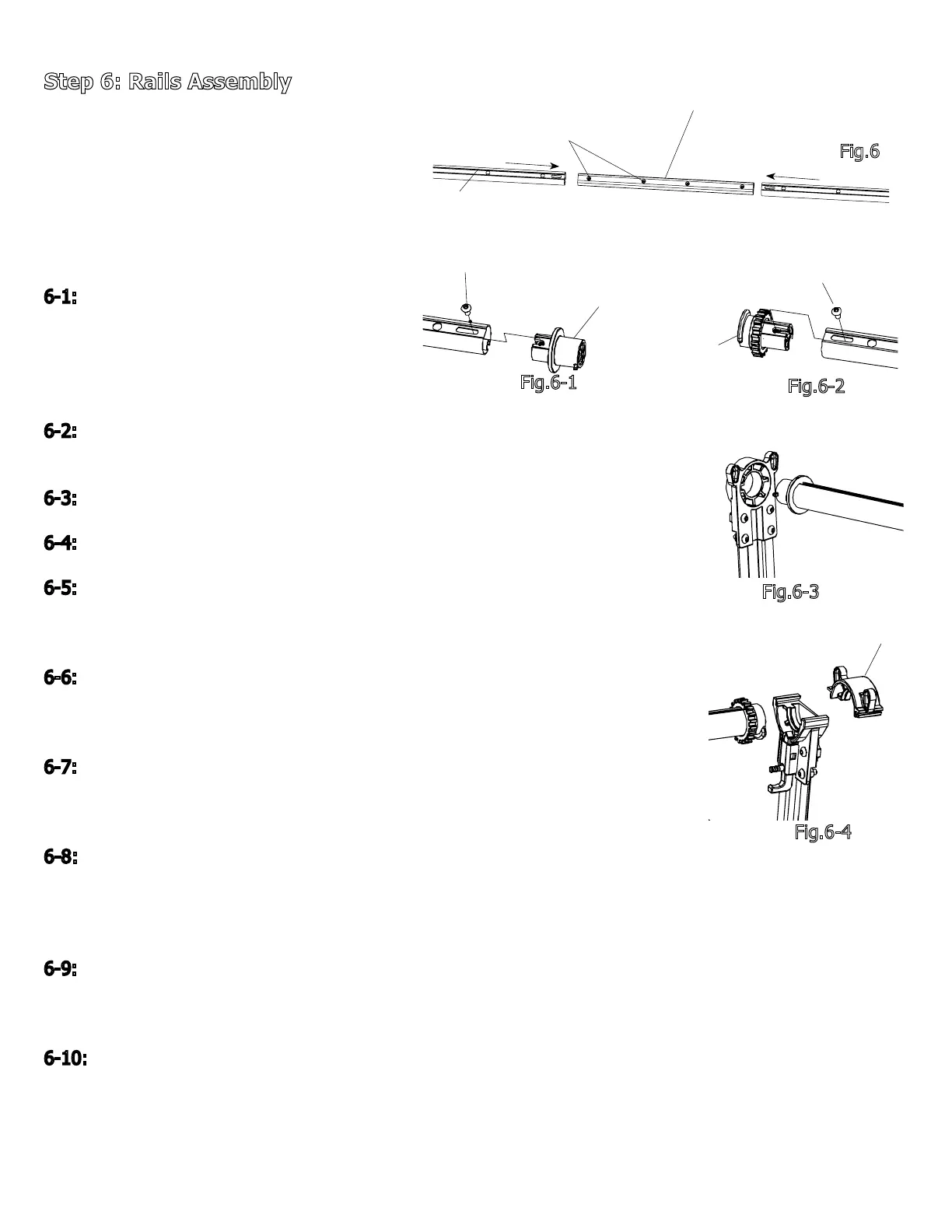

Step 6: Rails Assembly
Parts Needed:
-Rail (4)
-Rail Coupler (2)
-M5 x 10mm SBHCS (4)
-
Non-Ratchet Wheel (2)
-Ratchet Wheel
(2)
-
Ratchet Cap (2)
6-1: Put a Rail Coupler into a Rail, aligning
the two set screws on the Rail coupler with
the two bigger holes on the Rail. Tighten the
(2) M6 x 12mm set screws (pre-installed)
into the Rail through the hole. See Fig. 6.
6-2: Lock the other side of the Rail Coupler to another Rail in the same way
as Step 6-1.
6-3: Assemble the second Rail Coupler by repeating Step 6-1 and 6-2.
6-4: For the crib size frame, Steps 6-1 to 6-3 are not needed.
6-5: Insert the Non-Ratchet Wheel into one end of the rail, making sure the slot
on the rail is aligned with the Square Nut, then screw in (1) M5 x 10mm SBHCS,
as shown in Fig. 6-1.
6-6: Insert the Ratchet Wheel into the other end of the rail, make sure the slot
on the rail is aligned with the Square Nut, then screw in (1) M5 x 10mm SBHCS,
as shown in Fig. 6-2.
6-7: Repeat Step 6-5 through Step 6-6 to assemble the other rail.
Note: Assembly steps are the same for crib size frame.
6-8: Take one assembled rail, make sure that the plastic knob sticking out on
the Non-Ratchet Wheel is in line with the corresponding slot on the Rail Holder Bracket Left plastic, and
then insert the Non-Ratchet Wheel into one of the Rail Holder Bracket Left plastic, roll the rail a little bit
to make sure the Non-Rachet Wheel does not come o, as shown in Fig. 6-3.
6-9: Take the other side of the rail and place the Ratchet Wheel onto the plastic on Rail Holder Bracket
Right. Take a Ratchet Wheel Cap and snap it onto the Rail Holder Bracket Holder plastic to keep the
Rachet Wheel locked and in place, as shown in Fig. 6-4.
6-10: Repeat Steps 6-8 and 6-9 to assemble the other rail. .
