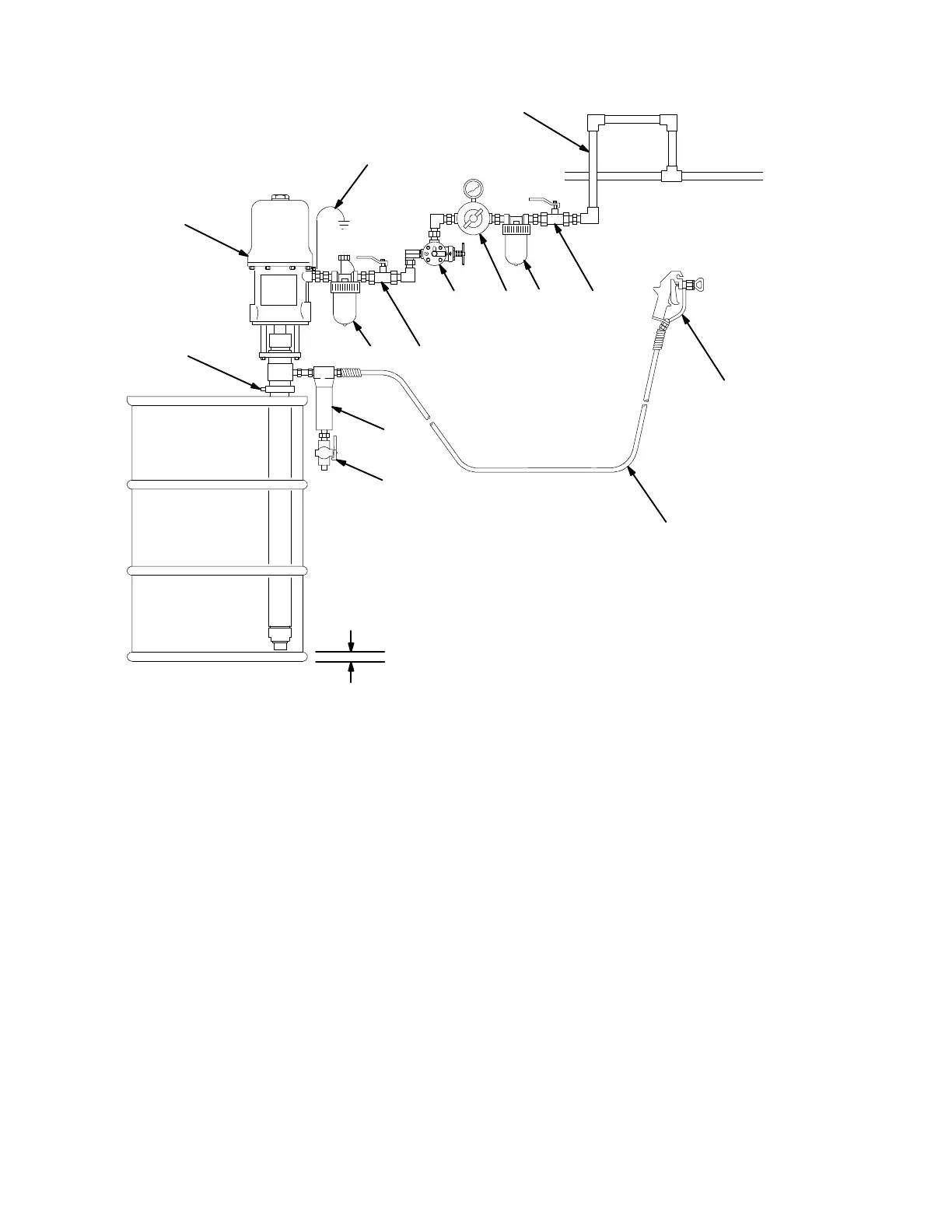

Graco 224350 - Typical Installation

6 308118
Installation
KEY
A Pump
B Pump Runaway Valve
C Air Line Lubricator
D Bleed--Type Master Air Valve (required, for pump)
E Pump Air Regulator
F Air Line Filter
G Bleed--Type Master Air Valve (for accessories)
H Air Supply Hose
J Fluid Drain Valve (required)
K Fluid Filter
L Fluid Supply Hose
M Spray Gun
N Pump Bung Adapter
Y Ground Wire (required; see page 5
for installation instructions)
J
A
B
CD
EF G
H
K
L
M
N
Y
1/2in.(13mm)
0808A
Typical Installation
