Graco 237-004 - Mounting Hole Layout; Manual Change Summary

18
306–694

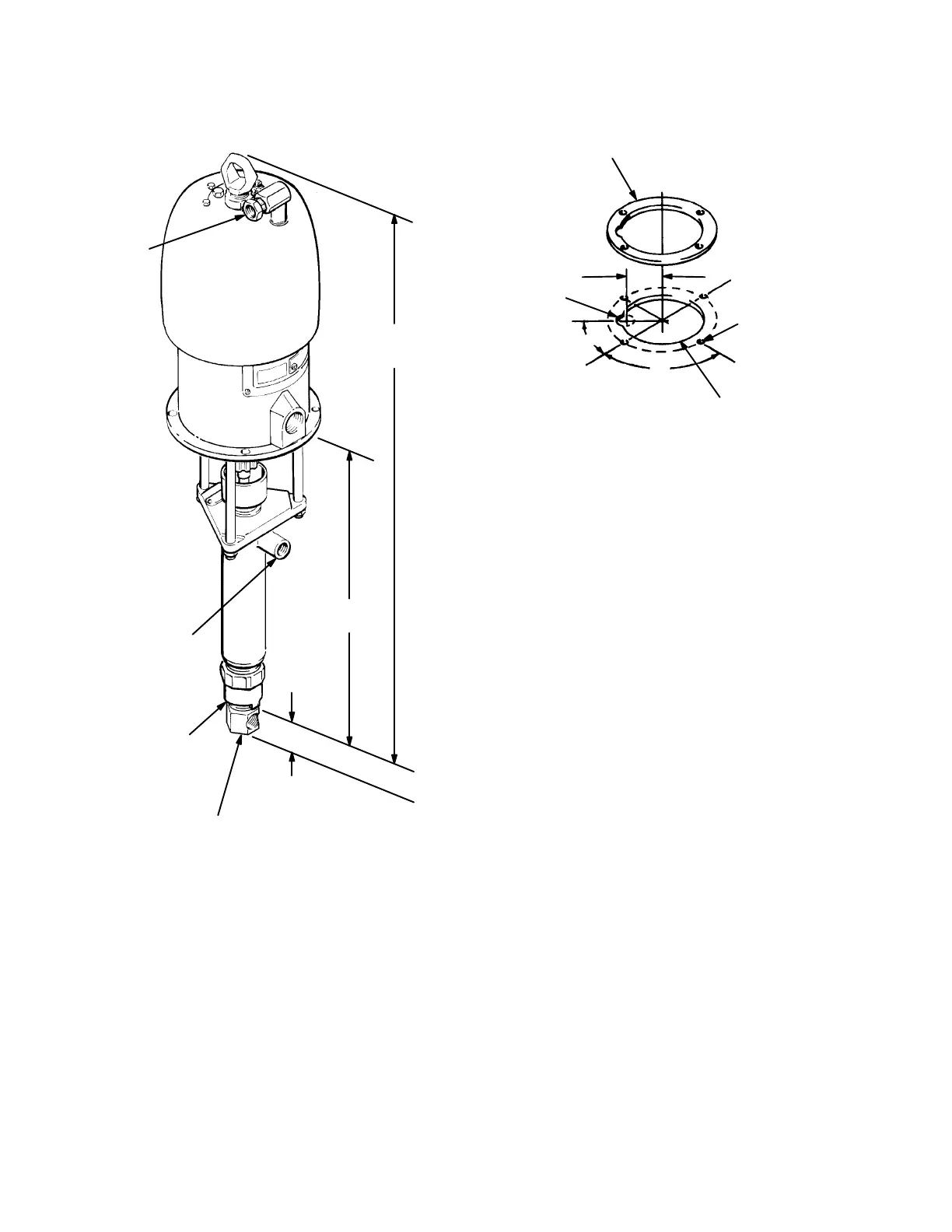

Dimensions
Model 217–579 Shown
3/4 npt(f)
AIR INLET
3/4 npt(f)
FLUID OUTLET
1” npt(f)
FLUID INT AKE ELBOW
See 307–049 or 307–304 for
Air Motor Dimensional Drawing.
OPTIONAL
1–1/2” npt(f)
FLUID INT AKE
42.34 in.
(1075.5 mm)
22.09 in.
(561.1 mm)
2.12 in.
(53.9 mm)
Mounting Hole
Layout
USE GASKET 161–806
4” (102 mm)
1.375”
(34.9 mm) R
Four 0.437” (1 1.1
dia. holes on
10.5” (267 mm)
bolt circle
9.75” (247.7 mm) dia.
90
45
Manual
Change Summary
This manual was updated to include the changes from
PCN W .
