Dimensional Drawings
308647T 25

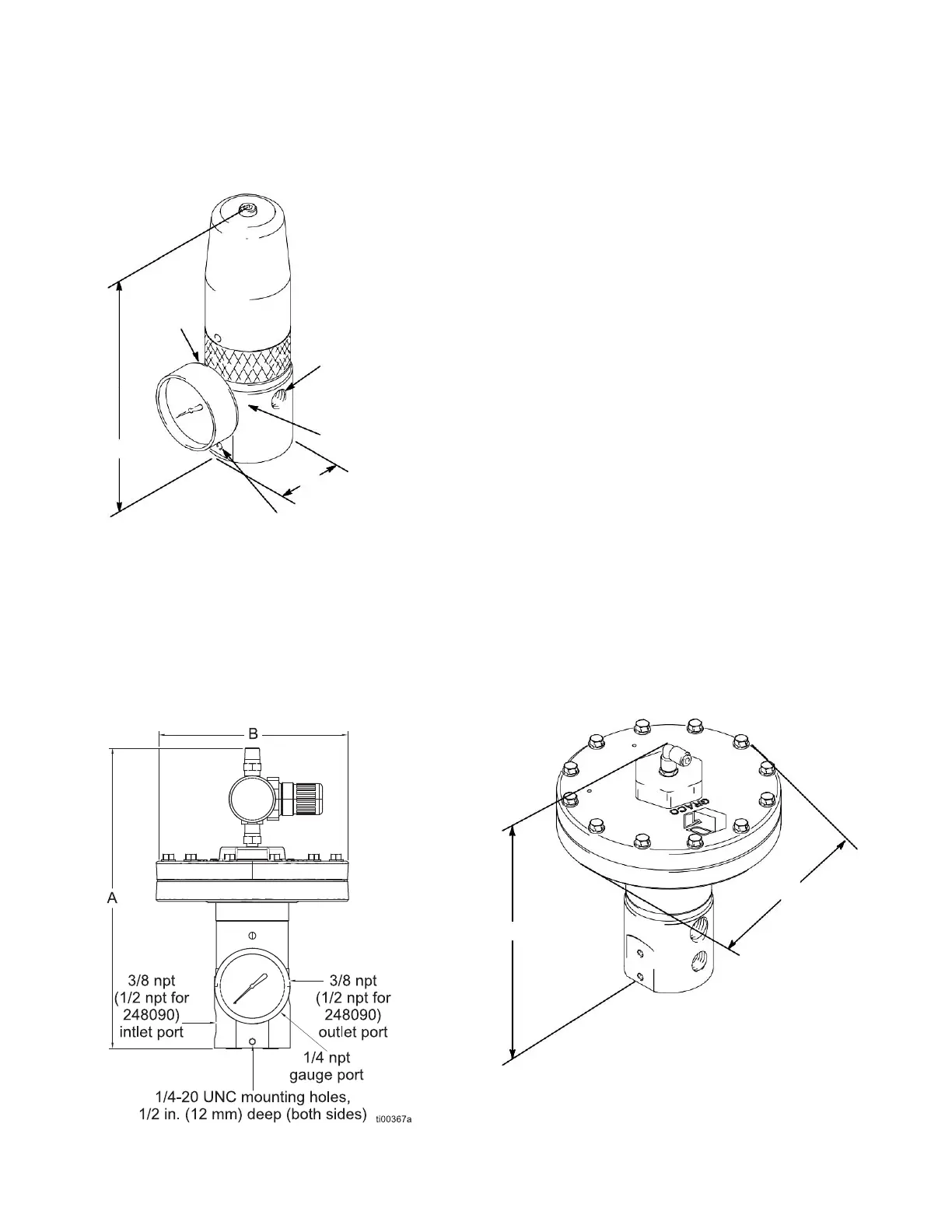

Dimensional Drawings
Models 238889 and 238891 with port plug
Models 238890, 238892, and 26A086 with gauge
(spring operated)
A Height: 8.9 in. (225 mm)
B Diameter of base housing: 2.65 in. (70 mm)
Model 238893 with port plug
Model 238890 with gauge
Models 248090 and 255072 with gauge
and 1/2 npt inlet and outlet ports
(air operated)
A Height: 10.0 in. (254 mm)
B Diameter of diaphragm cover: 7.0 in. (179 mm)
Model 244734
(air operated)
A Height: 8.1 in. (206 mm)
B Diameter of diaphragm cover: 7.0 in. (179 mm)
