Installation
8 308647T
Installation
Key:
A Air regulator
B Bleed-type master air valve
C Pump
D Fluid filter and drain valve
E Main fluid supply line
F Gun fluid supply line
G Fluid pressure regulator, with fluid pressure gauge (H)
H Fluid pressure gauge
J Air-assisted airless spray gun
K Back pressure valve
L Fluid return line
M Main circulating line
N Fluid supply container
P Drain valve
Do not use PTFE tape on pipe threads. Such use
could cause a hazardous condition due to the loss of
grounding continuity. Also, if pieces of the tape break
off, the function of the regulator could be affected.

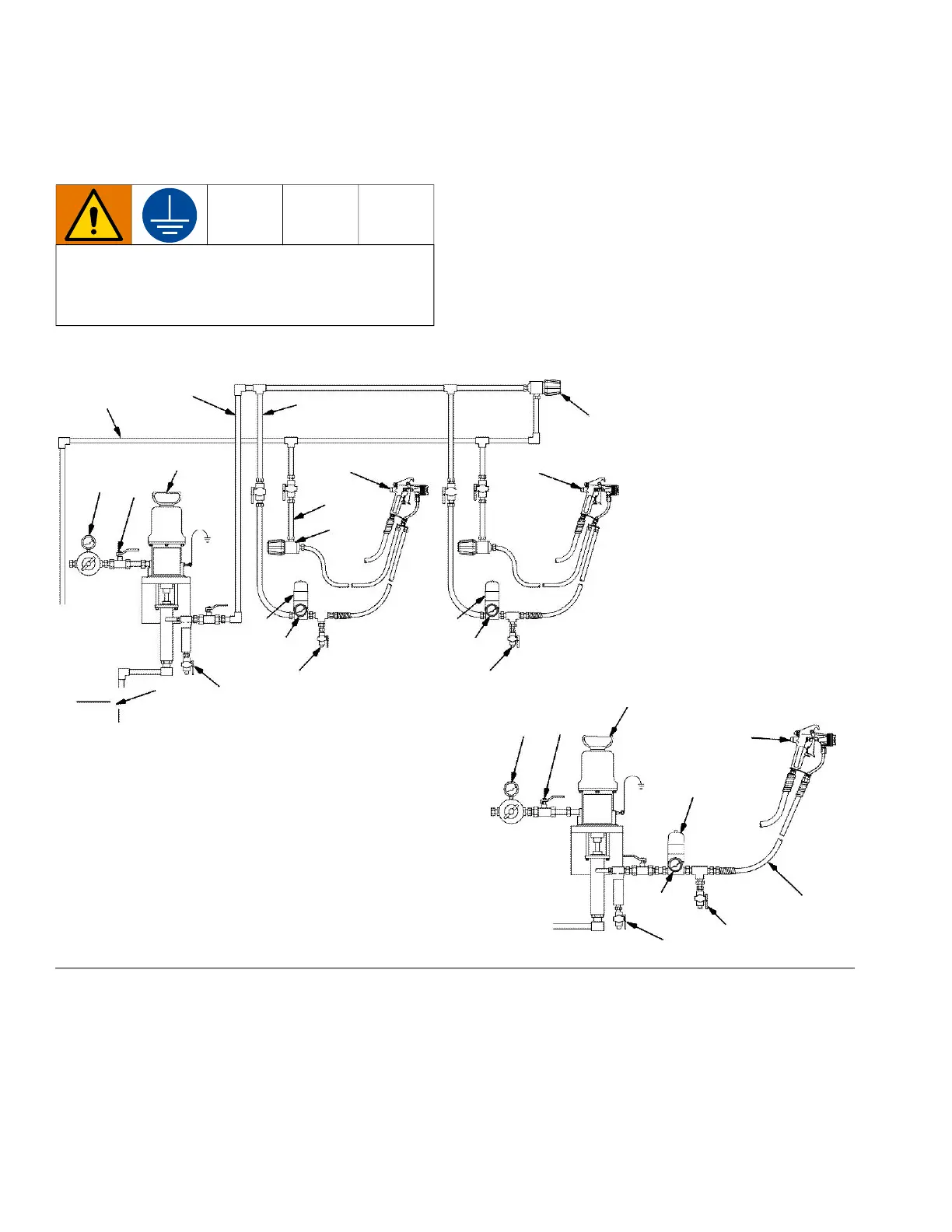

FIG. 1: Typical Installation
Multiple Circulating Spray Station
M E
K
C
A
B
J
G G
06461
N
D
F
A
B
C
J
G
F
P
H
D
Single Direct Spray Station
H
H
K
