Graco 24F150 Instruction & Parts Manual

Parts
3A0732B 29

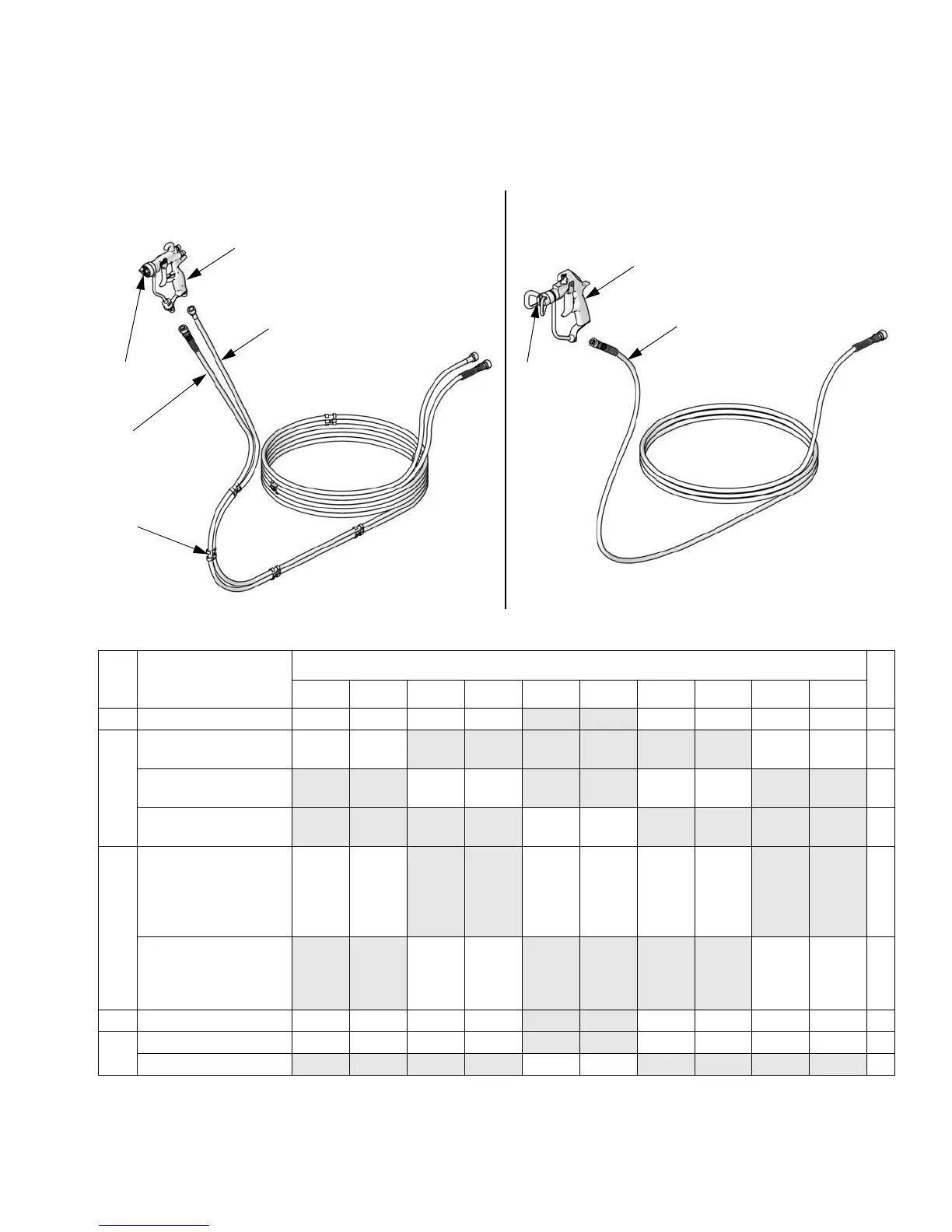

Hose and Gun
★ Additional tip sizes are available. See manual 3A0149 for G15 and G40 AA Guns.
See tip manual 306686 for Silver Plus Airless Guns.
TI16230a
37
TI16231a
30
32
30
32
29
36
36
33
Ai
r-
A
ss
i
ste
d
P
ac
k
ages
Ai
r
l
ess
P
ac
k
ages
Ref.
No. Description
Package
Qty24F150 24F151 24F152 24F153 24F154 24F155 24F156 24F157 24F158 24F159
29 HOSE, air, gun 241811 241811 241811 241811
241811 241811 241811 241811 1
30 GUN, air-assisted, G15;
see 3A0149
24C853 24C853 24C853 24C853 1
GUN, air-assisted, G40;
see 3A0149
24C855 24C855 24C855 24C855 1
GUN, airless; see
311254
235460 235460 1
32 HOSE, fluid; 1/8 in. (3
mm) ID nylon; 1/4
npsm(f) plated steel
couplings; 25 ft (7.6 m)
long
24F165 24F165 24F165 24F165 24F165 24F165 1
HOSE, fluid; 1/8 in. (3
mm) ID nylon; 1/4
npsm(f) sst couplings;
25 ft (7.6 m) long
24F166 24F166 24F166 24F166 1
33 CLIP, hose; pack of 7 24H005 24H005 24H005 24H005
24H005 24H005 24H005 24H005 7
36★ TIP; G15, G40 AAM413 AAM413 AAM413 AAM413
AAM413 AAM413 AAM413 AAM413 1
TIP; airless
163515 163515 1

Graco 24F150 Specifications

General

Brand	Graco
Model	24F150
Category	Paint Sprayer
Language	English
