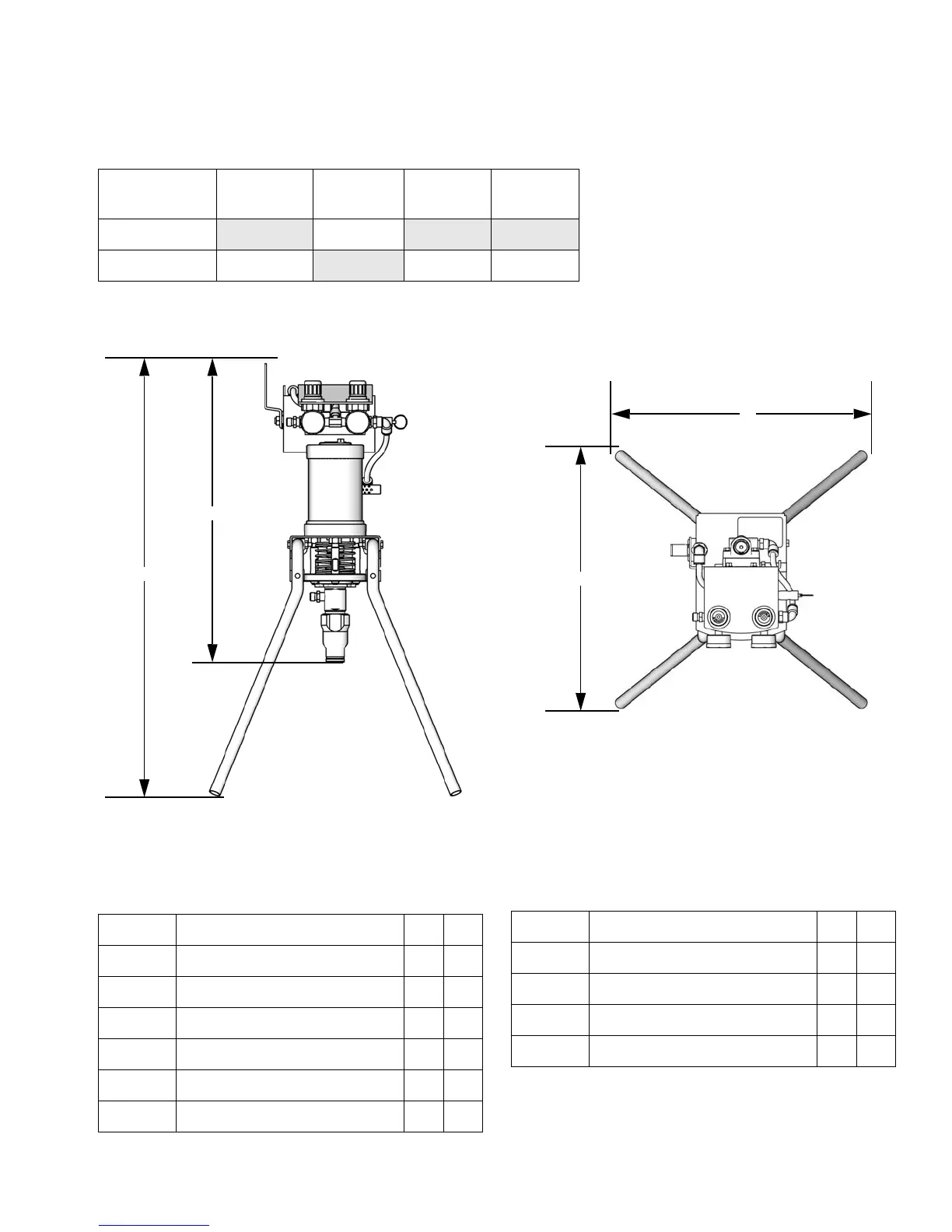

Package Dimensions
3A0732B 39
Package Dimensions
Package Weights
Package
A, inch
(mm)
B, inch
(mm)
C
inch (mm)
D
inch (mm)
Wall Mount
20.2 (513)
Stand Mount
29.0 (737)
17.4 (442) 18.4 (467)
ti16287a
A
B
ti16288a
C
D
Front View Top View
Package Description lb kg
24F150 15:1 plated steel, AA, wall
20 9
24F151 15:1 plated steel, AA, stand
23 10
24F152 30:1 stainless steel, AA, wall
23 10
24F153 30:1 stainless steel, AA, stand
26 12
24F154 30:1 plated steel, airless, wall
22 10
24F155 30:1 plated steel, airless, stand
25 11
24F156 30:1 plated steel, AA, wall
23 10
24F157 30:1 plated steel, AA, stand
26 12
24F158 15:1 stainless steel, AA, wall
20 9
24F159 15:1 stainless steel, AA, stand
23 10
