Graco 25 - Parts Identification; Component Parts List

Parts
10 3A2099D

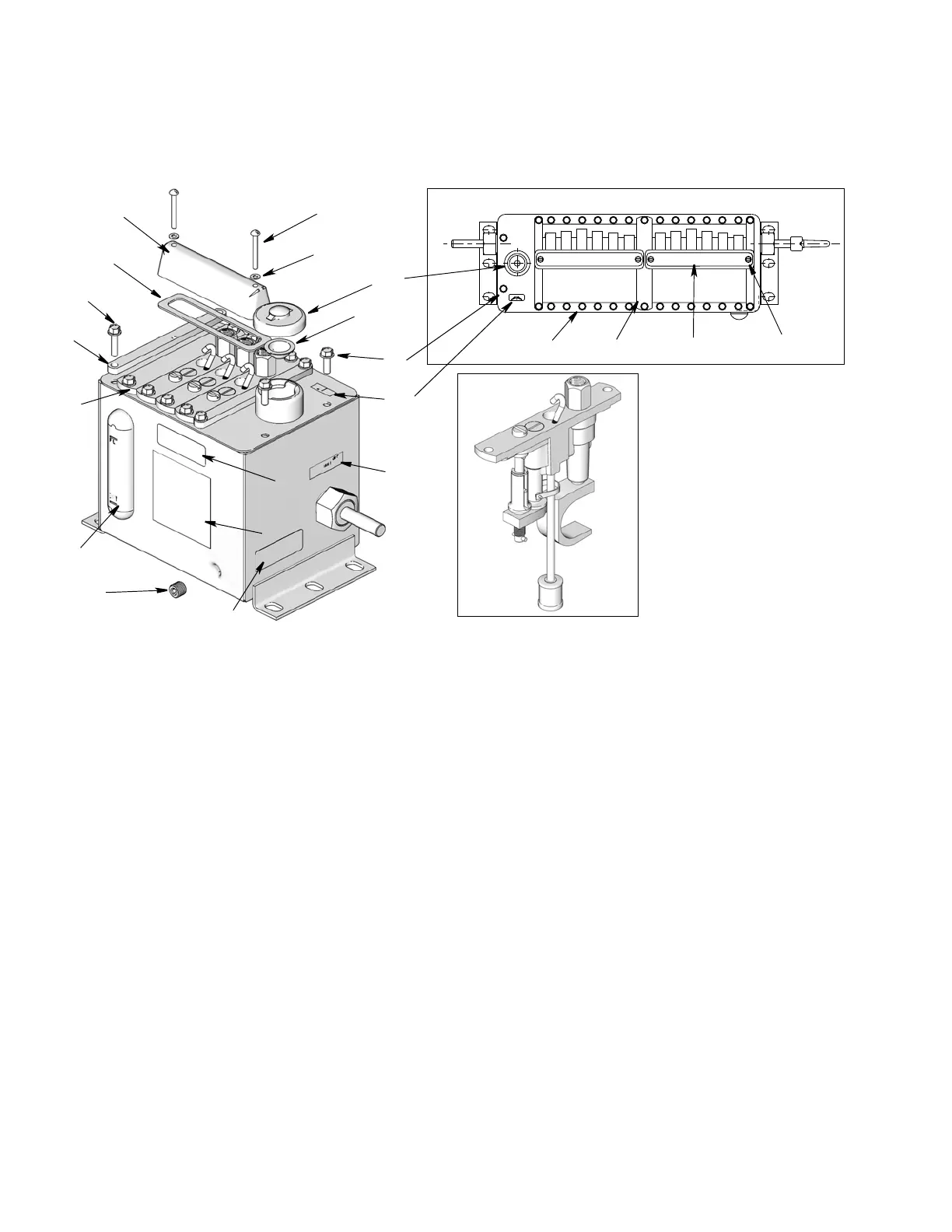

Parts
 Replacement Danger and Warning labels, tags, and
cards are available at no cost.
10
9
8
11
12
13
17
19
18
20
23
31
69
22
21
24
16
Top View
27
9
16
18/19
Pump (7)
Ref Part No. Description Qty
7 562949 PUMP, assembly, 0.187 diameter M25 1
562950 PUMP, assembly, 0.312 diameter M25 1
8 SCREW, 1/4-20X.75 hex 2
9 SCREWS (1-4 pumps) 12
SCREWS (5-8 pumps) 20
SCREWS (9-12 pumps) 30
SCREWS (13-16 pumps) 38
SCREWS (17-20 pumps) 48
10 557171 COVER, oil, hole 1
11 557149 STRAINER, filter
1
12 PLUG, dry seal, 1/4 nptf
1
13 563923 KIT, sight glass with gasket and nuts
1
16 556690 SIGHTGLASS (4 feed) (1-4 pumps)
1
556694 SIGHTGLASS (8 feed) (5-8 pumps) 1
556692 SIGHT GLASS (6 feed) (9-12 pumps) 2
556694 SIGHT GLASS (8 feed) (13-16 pumps) 2
556692 SIGHT GLASS (6 feed) (17-20 pumps) 2
556694 SIGHT GLASS (8 feed) (17-20 pumps) 1
17 556723 GASKET, sight, 4 FD (1-4 pumps) 1
556725 GASKET, sight, 8 FD (5-8 pumps) 1
556724 GASKET, sight, 6 FD (9-12 pumps) 2
556725 GASKET, sight, 8 FD (13-16 pumps) 2
556724 GASKET, sight, 6 FD (17-20 pumps) 2
556725 GASKET, sight, 8 FD (17-20 pumps) 1
18 555744 WASHER (1-4 pumps) 2
WASHER (5-8 pumps) 2
WASHER (9-12 pumps) 4
WASHER (13-16 pumps) 4
WASHER (17-20 pumps) 6
19 SCREW, #10-32 x 1.50 (1-4 pumps) 2
SCREW, #10-32 x 1.50 (5-8 pumps) 2
SCREW, #10-32 x 1.50 (9-12 pumps) 4
SCREW, #10-32 x 1.50(13-16 pumps) 4
SCREW, #10-32 x 1.50(17-20 pumps) 6
20 557035 PLATE, sight glass 2
21a RIGHT SIDE direct drive rotary 1
21b LEFT SIDE direct drive rotary 1
22 LABEL, name, serial number 1
23 LABEL, oil regulating 1
24 LABEL, identification 1
27 557037 PLATE, sight glass (1-4 pumps) 0
PLATE, sight glass (5-8 pumps) 0
PLATE, sight glass (9-12 pumps) 1
PLATE, sight glass (13-16 pumps) 1
PLATE, sight glass (17-20 pumps) 2
31 557036 PLATE, blank - For quantities, see page
11
-
69 16G243 LABEL, safety warning 1
Ref Part No. Description Qty
