Graco 25 - Dimensional Specifications; Dimensional Data Tables and Diagrams

Technical Data
3A2099D 13

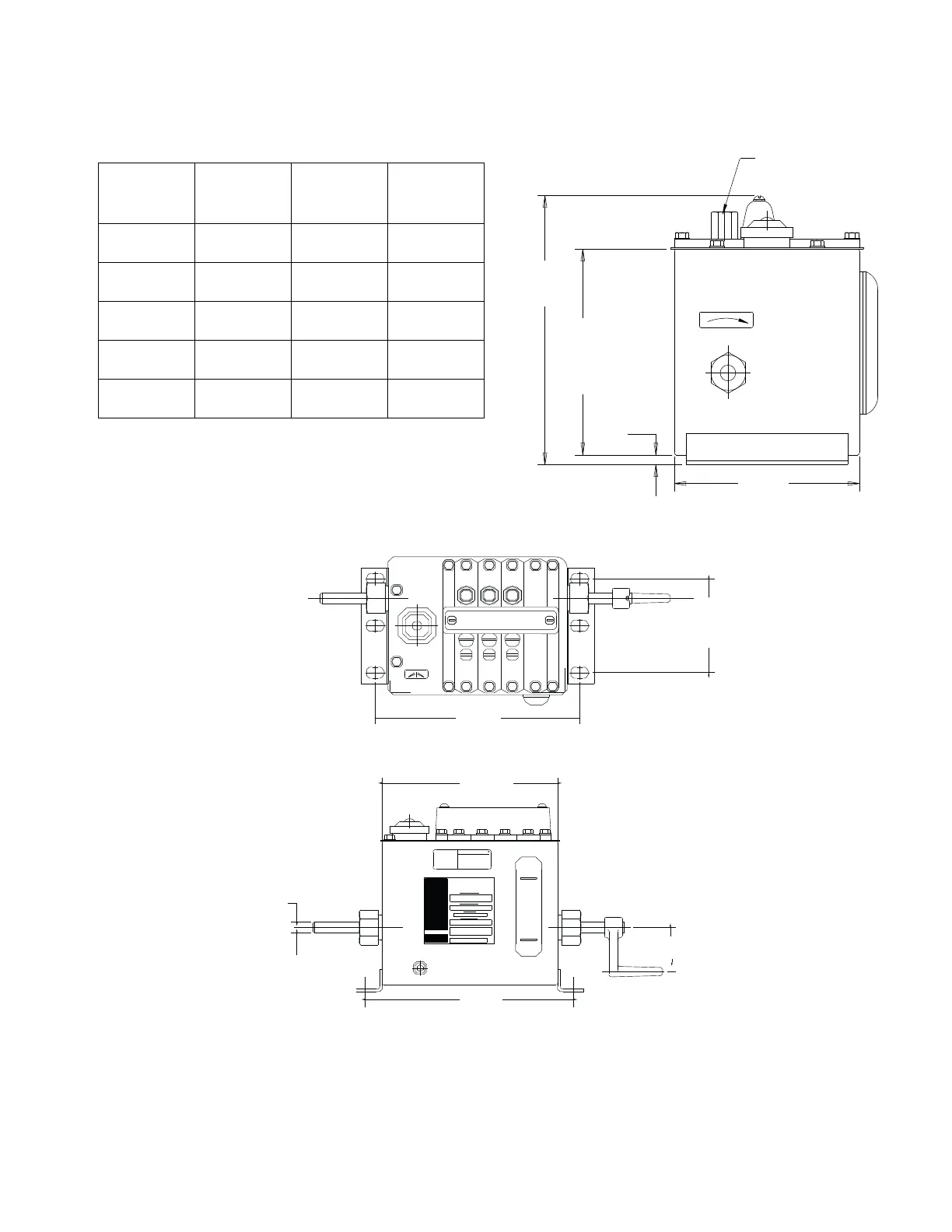

Dimensions
No. of
Feeds
Reservoir
Length (A)
inches (mm)
End Lugs
(B)
inches (mm)
Approximate
Capacity
pints (L)
1 - 4
7-19/32
(192.8)
8-27/32
(224.5)
6-1/4
(2.9)
5 - 8
11-19/32
(294.4)
12-27/32
(326.1)
9-1/4
(4.3)
9 - 12
16-19/32
(421.4)
17-27/32
(453.1)
13
(6.1)
13 - 16
20-19/32
(523)
21-27/32
(554.7)
16
(7.5)
17 - 20
25-19/32
(650)
26-27/32
681.7)
19-3/4
(9.3)
.32
(8.1)
6.50
(165.1)
8.50
(215.9)
6.00
(152.4)
1/4-18 NPSF
LUBE OUTLET
RESER VOIR
Inches (mm)
4.25
(107.9)
"B"
2.00
(50.8)
"A"
FULL
EMPTY
0.50
(12.8)
"B"
Inches (mm)
