Power Cord Replacement
26 310824D
Power Cord Replacement

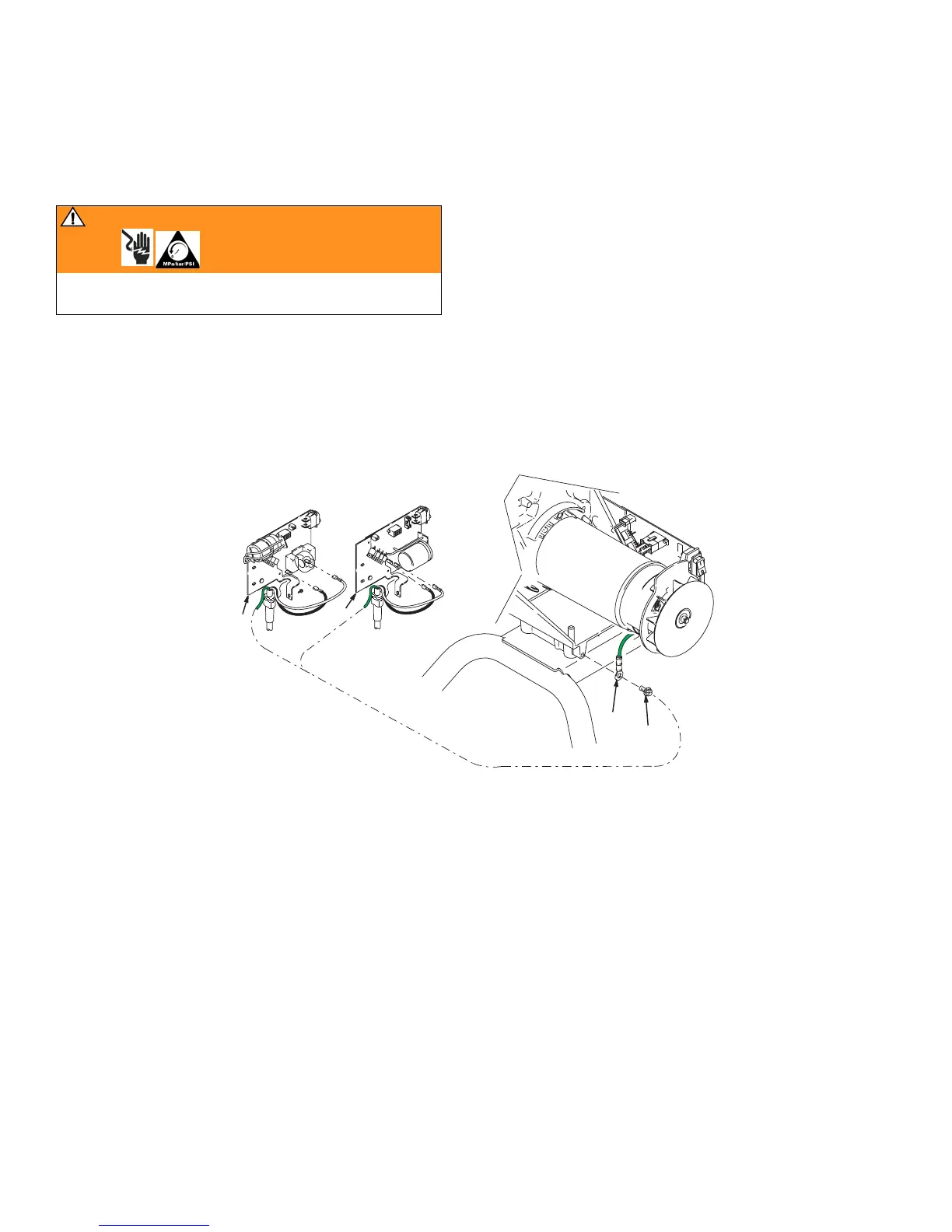

See Wiring Diagram, page 28.
Removal
1. Follow Control Board Replacement removal
instructions, steps 1-8, page 20.
2. Disconnect green ground wire (G) from sprayer by
loosening grounding screw (31).
Installation
1. Follow Control Board Replacement installation
instructions, steps 1-4, page 20.
2. Reconnect, green ground wire (G) to green ground-
ing screw (31) on frame. Be sure terminal on ground
faces UP or wires could get caught in shroud.
3. Reattach motor connector (B) and pressure control
switch connect (A).
4. Install shroud (29) and two screws (30).
WARNING
Read Electric Shock Warning, page 3 and Pressure
Relief Procedure, page 8.
