Graco 309674M - On;Off Switch Replacement

On/Off Switch Replacement
22 309674M

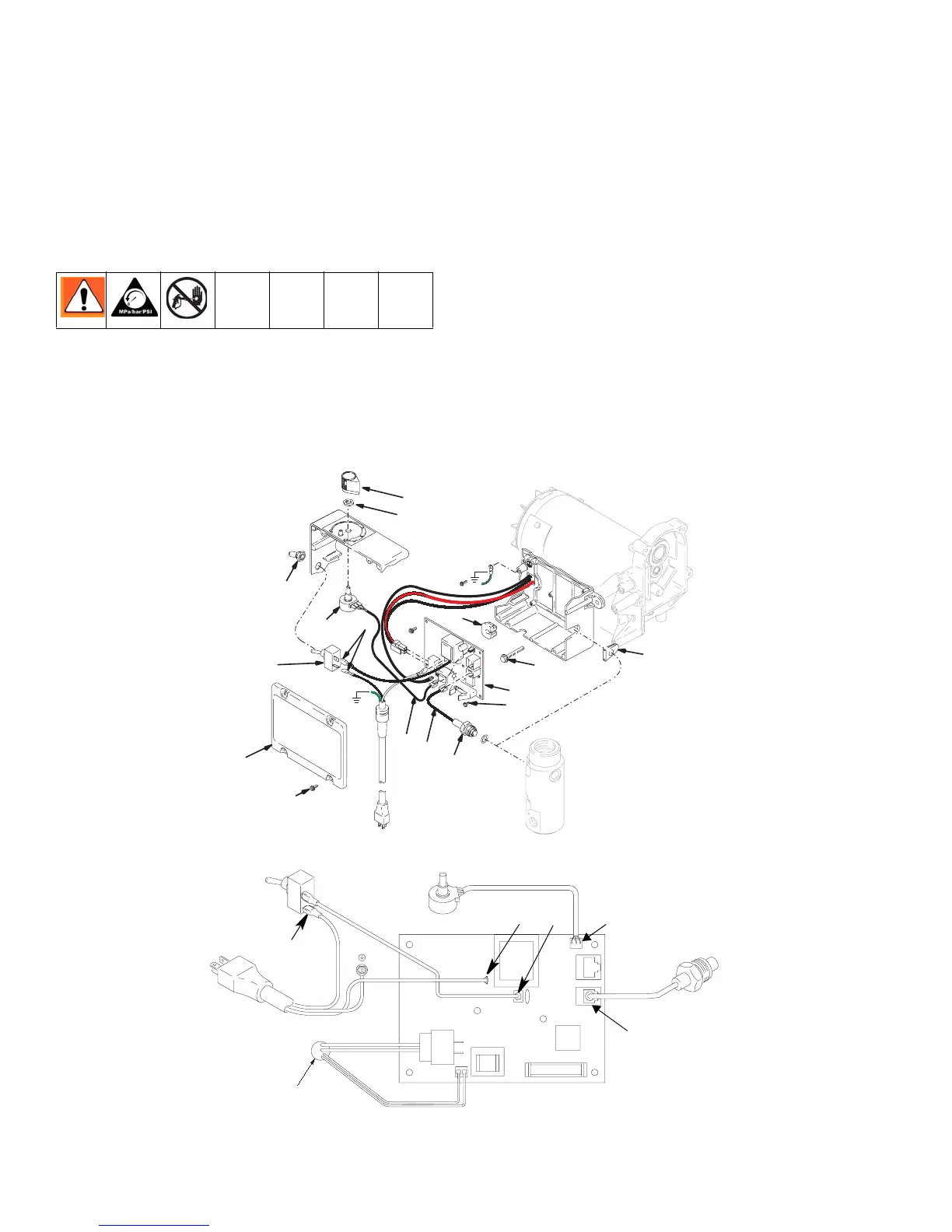

On/Off Switch Replacement
100/120 VAC Ultra and ST 395/495/595 models
Removal
1. Relieve pressure, page 7.
2. Remove four screws (12) and pressure control cover
(50).
3. Disconnect two wires (A) from ON/OFF switch (58).
4. Remove toggle boot (30) and locking ring. Remove
ON/OFF switch (58).
Installation
1. Install new ON/OFF switch (58). Install locking ring
and toggle boot (30).
2. Connect two wires (A) to ON/OFF switch (58).
3. Install pressure control cover (50) with four screws
(12).
212))
6ZLWFK
3RZHU3OXJ
3RWHQWLRPHWHU
IURP0RWRU
5HG
:LULQJ'LDJUDP
'RPHVWLF
:KLWH
%ODFN
*UHHQ
[:KLWH
%ODFN
%ODFN
%ODFN
WL
WLE

$



(
'








D
TP2
TP1/L1
L2
J8
J7
