Graco 395 - On;Off Switch Replacement; 100, 120 Vac On;Off Switch Replacement

13309674
On/Off Switch Replacement
100, 120 Vac (See page 1 for models)
Removal
1.
Relieve pressure; page 4.

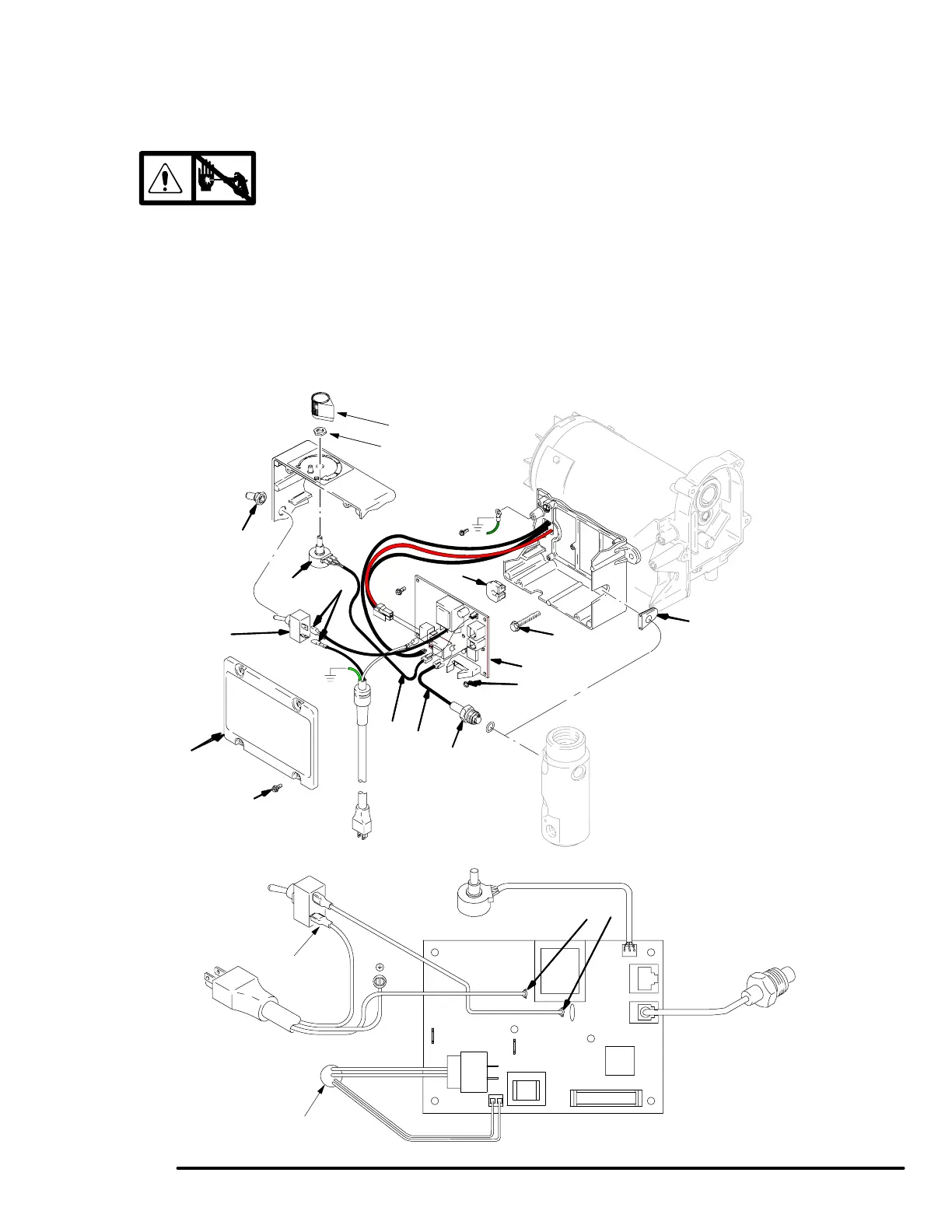

2. Fig. 10. Remove four screws (12) and pressure
control cover (50).
3. Disconnect two wires (A) from ON/OFF
switch (58).
4. Remove toggle boot (30) and locking ring. Remove
ON/OFF switch (58).
Installation
1. Install new ON/OFF switch (58). Install locking ring
and toggle boot (30).
2. Connect two wires (A) to ON/OFF switch.
3. Install pressure control cover (50) with four
screws (12).
ON/OFF
Switch
Ref 58
Power
Plug
Ref 56
Potentiometer Ref 37
Red (+)
White
Black
Green
2 x White
Black (–)
Black
Black
ti2471
L2 L1
from Motor
Pressure
Transducer
Ref 38
Black
TP1
ti2509b
50
A
12
58
38
E
D
49
6
30
37
19
47
20
11
37a
Fig. 10
L2 L1
from Motor
50
A
12
58
E
D
49
6
30
37
47
20
11
37a
