Graco 695 HI - 120 V Models (with 15;20 Amp Switch)

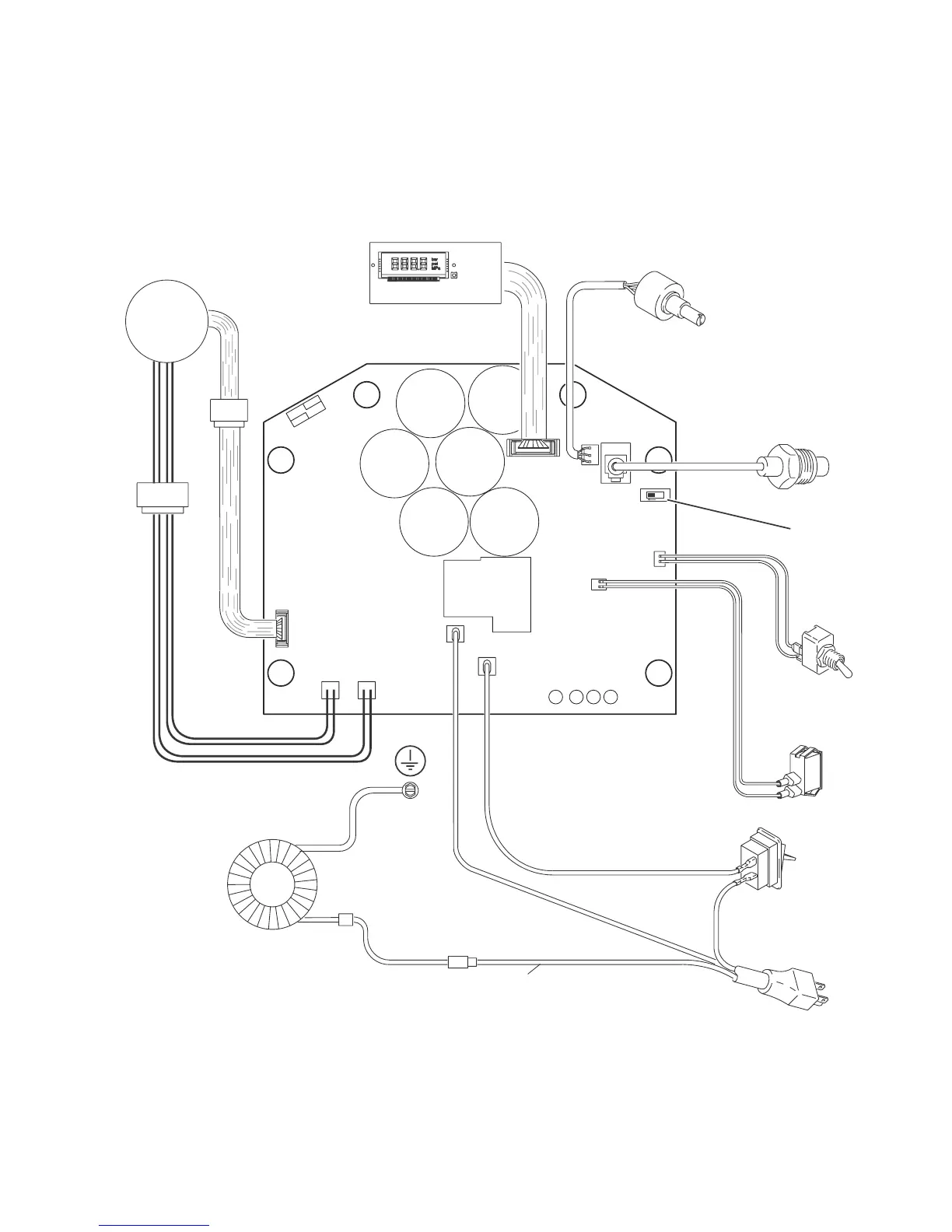

Wiring Diagram
3A0157A 41
120V Models (with 15/20 Amp Switch):
Black
Pressure
Transducer
Digital Display
ON/OFF
Switch
Power Plug
Black +
white
green/ground
Motor
green/ground
Potentiometer
1595 Switch
20A 15A
Watchdog
Black
ON
Dip Switch
ti12980b
