14 310894

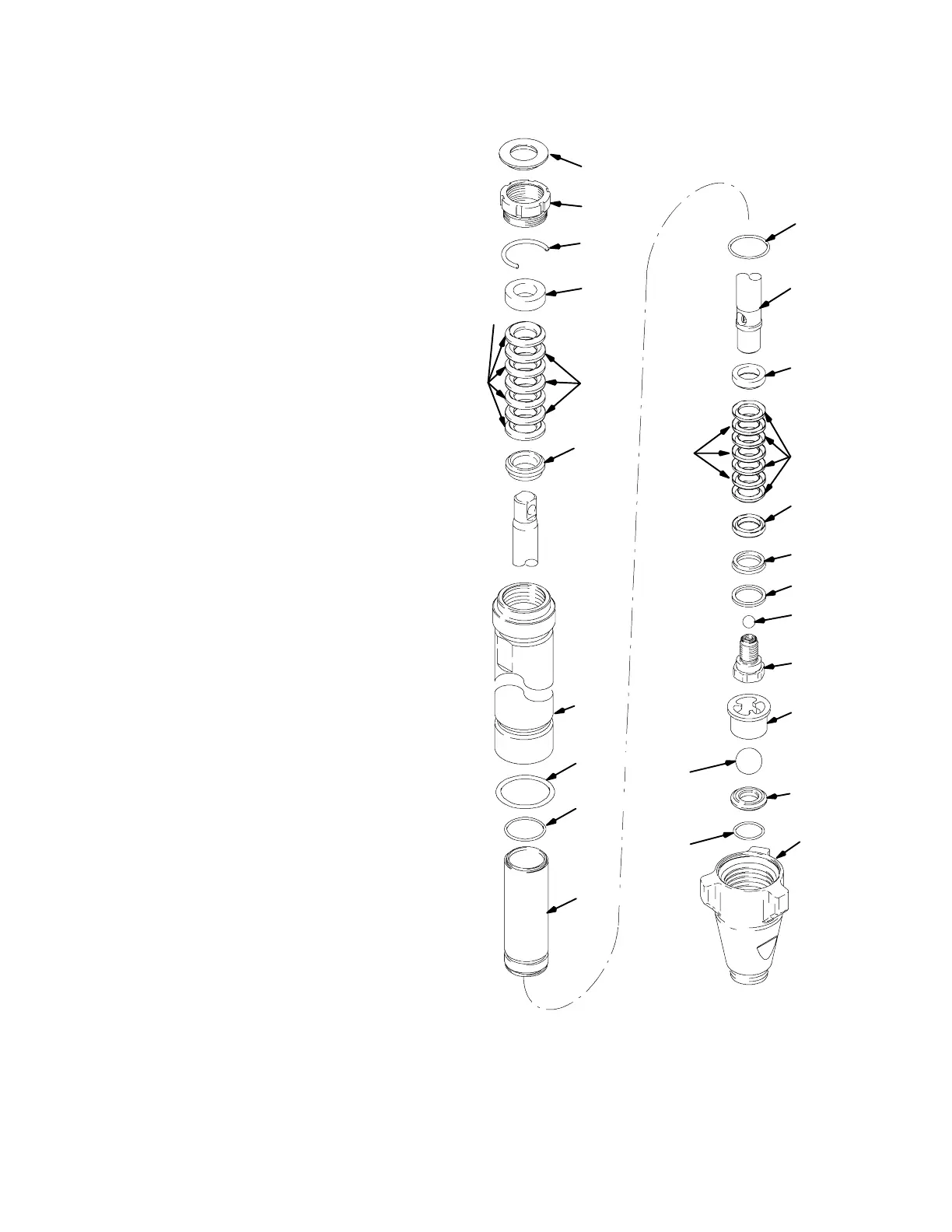

Parts -- Pump 287928
Model 287928, Series A
Ref
No. Part No. Description Qty.
201 183171 PLUG 1
202 193032 NUT, packing 1
203* 193124 V -PACKING, throat, 4
V-Maxt UHMWPE, blue
204* 15C989 GLAND, male, throat 1
205 287581 CYLINDER, pump
206* 116327 BALL, ceramic 1
207* 106556 PACKING, o-ring 1
208* 193125 V -PACKING, piston 4
V-Maxt UHMWPE, blue
210 240150 VALVE, piston 1
212† 244571 KIT, seat, carbide 1
includes 214 and 227
213 196753 VALVE, intake (foot) 1
214*† 111453 BALL, ceramic 1
215 196967 GUIDE, ball 1
216* 118504 WIPER, piston 1
217* 183185 GLAND, female, piston 1
218* 15E329 V -PACKING, leather, piston 3
219* 183178 GLAND, male 1
220 248210 SLEEVE, cylinder 1
221* 107098 PACKING, o--ring 2
222 249028 ROD, piston 1
223* 183175 V -PACKING, leather , throat 3
224* 15C990 GLAND, packing 1
227*† 108526 PACKING, o-ring 1
228 193127 SPACER, nut 1
229* 15C998 WASHER, backup 1
230†† 15G880 FITTING, pump (not shown) 1
* These parts are also included in Repair Kit 249189,
which may be purchased separately.
These parts are also included in Carbide Seat Kit
244571, which may be purchased separately.
†† These parts are included with pump 287928.
*203
216*
201
202
224*
223*
204*
205
221*
220
222
206*
219*
208*
217*
210
215
212†
213
†*214
*218
221*
207*
†*227
228
229*
ti6277a
