Graco C Series User Manual

8 307944

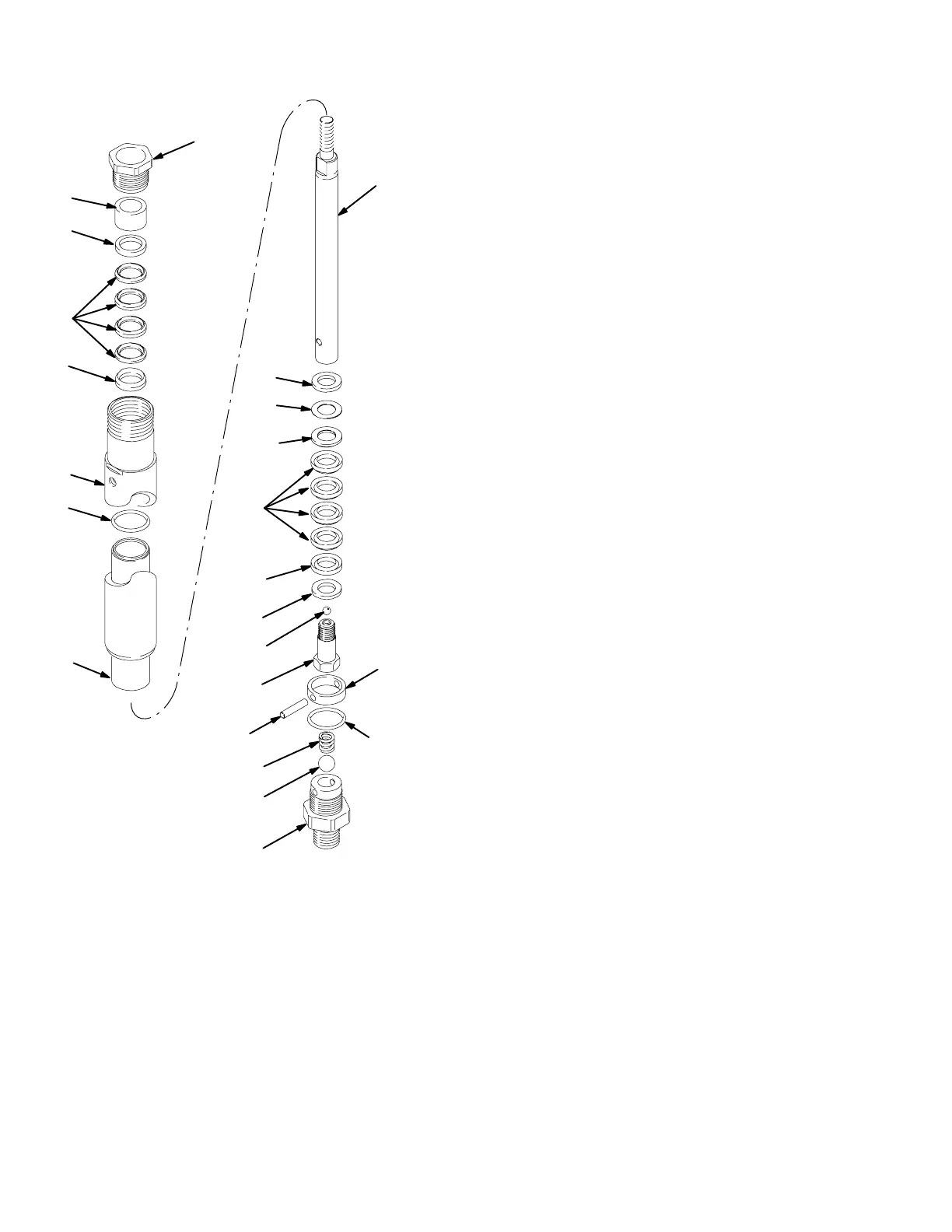

Parts
1
2
*3
*4
*6
*7
*10
11
12
*13
*14
†15
†15
*16
*18
*19
†20
21
22*
24
*23
30†
02402B
*33
Model 222012, Series C
Ref.
No. Part No. Description Qty.
1 181513 ROD, displacement; sst 1
2 192174 NUT, packing; cst 1
3* 188402 SPACER, packing; sst 1
4* 181725 GLAND, female; cst 1
6* 183757 V-PACKING; PTFE 4
7* 181726 GLAND, male; cst 1
10* 109115 O-RING; PTFE 1
11 181649 CYLINDER, pump; cst 1
12 181510 SLEEVE, cylinder; sst 1
13* 101823 BALL; 5/16 in. dia.; sst 1
14* 189314 SHIM; sst 8
15† 176107 WASHER, back-up; cst 2
16* 181664 GLAND, male; cst 1
18* 165104 V-PACKING; PTFE 4
19* 181663 GLAND, female; cst 1
20† 205383 STUD, piston; cst, w/carbide seat 1
21 165049 PIN, stop, ball; sst 1
22* 109176 O-RING; PTFE 1
23* 100064 BALL; 5/8 in. dia.; cst 1
24 220297 HOUSING, valve, intake;
cst, w/carbide seat 1
30† 185265 RETAINER, o-ring; sst 1
33* 510956 SPRING, compression 1
* These parts are also included in Repair Kit 236597, which
may be purchased separately.
† Keep these spare parts on hand to reduce down time.
Model 222015, Series B
Ref.
No. Part No. Description Qty.
1 181656 ROD, displacement; sst 1
2 192174 NUT, packing; cst 1
3* 181655 BEARING, sleeve; acetal 1
4* 181652 GLAND, female; cst 1
6* 183758 V-PACKING; PTFE 4
7* 181651 GLAND, male; cst 1
10* 109115 O-RING; PTFE 1
11 181649 CYLINDER, pump; cst 1
12 181509 SLEEVE, cylinder; sst 1
13* 101823 BALL; 5/16 in. dia.; sst 1
14* 188204 SHIM; sst 8
15† 176108 WASHER, back-up; cst 2
16* 181724 GLAND, male; cst 1
18* 183760 V-PACKING; PTFE 4
19* 181723 GLAND, female; cst 1
20† 205386 STUD, piston; cst, w/carbide seat 1
21 165049 PIN, stop, ball; sst 1
22* 109176 O-RING; PTFE 1
23* 100064 BALL; 5/8 in. dia.; cst 1
24 220297 HOUSING, valve, intake;
cst, w/carbide seat 1
30† 185265 RETAINER, o-ring; sst 1
33*@ 510956 SPRING, compression 1
* These parts are also included in Repair Kit 236598, which
may be purchased separately.
† Keep these spare parts on hand to reduce down time.
@ If this pump is being used in a VRHM system, spring
501095 is used. Purchase separately for repair.
