Installation
6 3A6932B

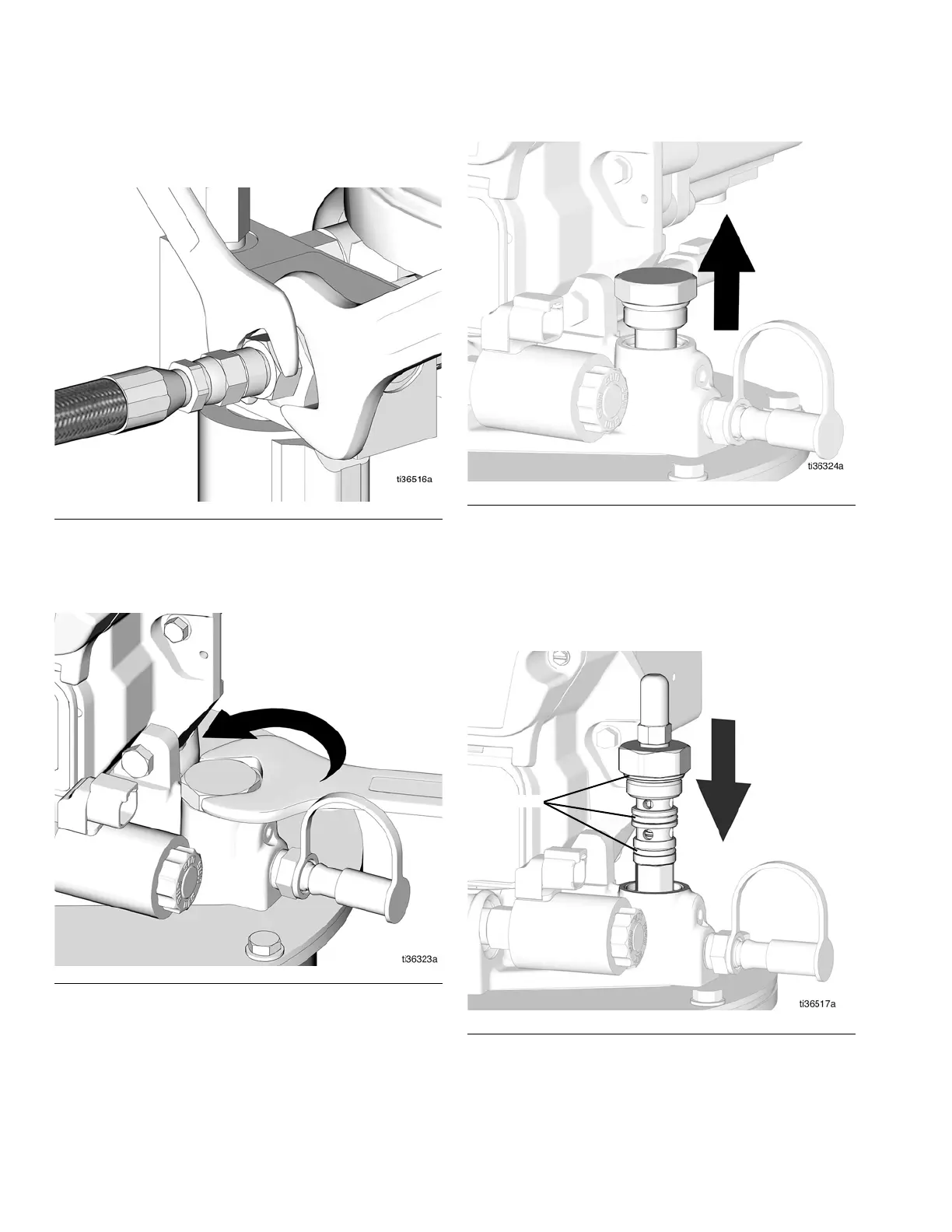

3. Disconnect the main line from the pump outlet
(F
IG. 3).
4. Loosen and remove the Compact Dyna-Star
Auto-Fill Shut Off plug. Dispose of the plug
according to local regulations (F
IG. 4 and FIG. 5).
5. Grease the outside of the three (3) o-rings on the
Compact Dyna-Star Auto-Fill Shut Off cartridge
(F
IG. 6).
6. Install the Compact Dyna-Star Auto-Fill Shut Off
cartridge (F
IG. 6).
FIG. 3
FIG. 4
FIG. 5
FIG. 6
O-rings
