Installation
3A6932B 7
7. Tighten the Compact Dyna-Star Auto-Fill Shut Off
cartridge (torque 45-55 ft-lb/61-74.5 N•m) (F
IG. 7).
8. If the system currently has a follower plate,
installation is complete. For systems without a
follower plate, see Follower Plate Installation
(Part 25P687), page 8.
9. Use two wrenches working in opposite directions on
the pump outlet fitting to tighten (F
IG. 1).
10. Reconnect the main line (F
IG. 8).
11. Reconnect the power to the system (F
IG. 9).

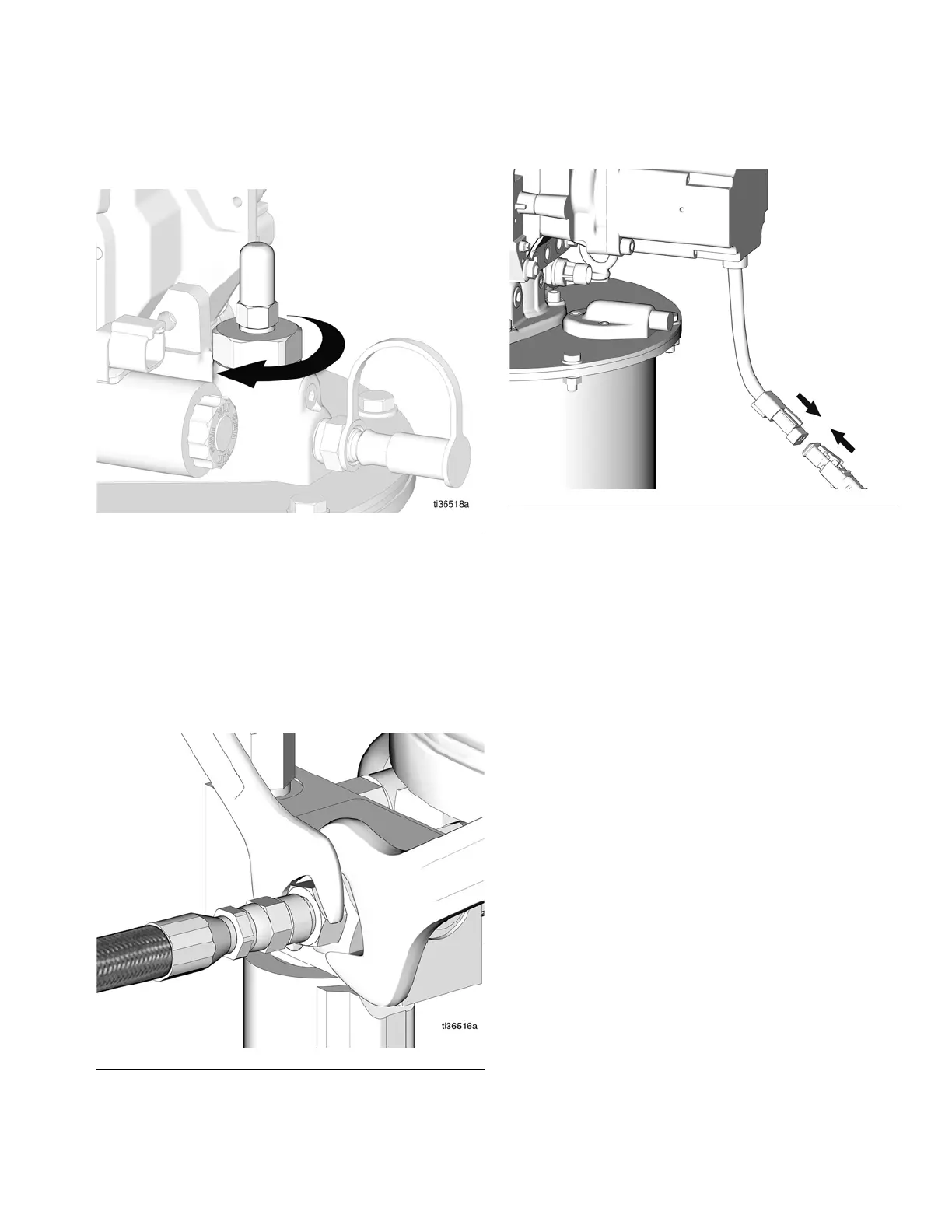

FIG. 7
FIG. 8
FIG. 9
