Setup
16 334558D

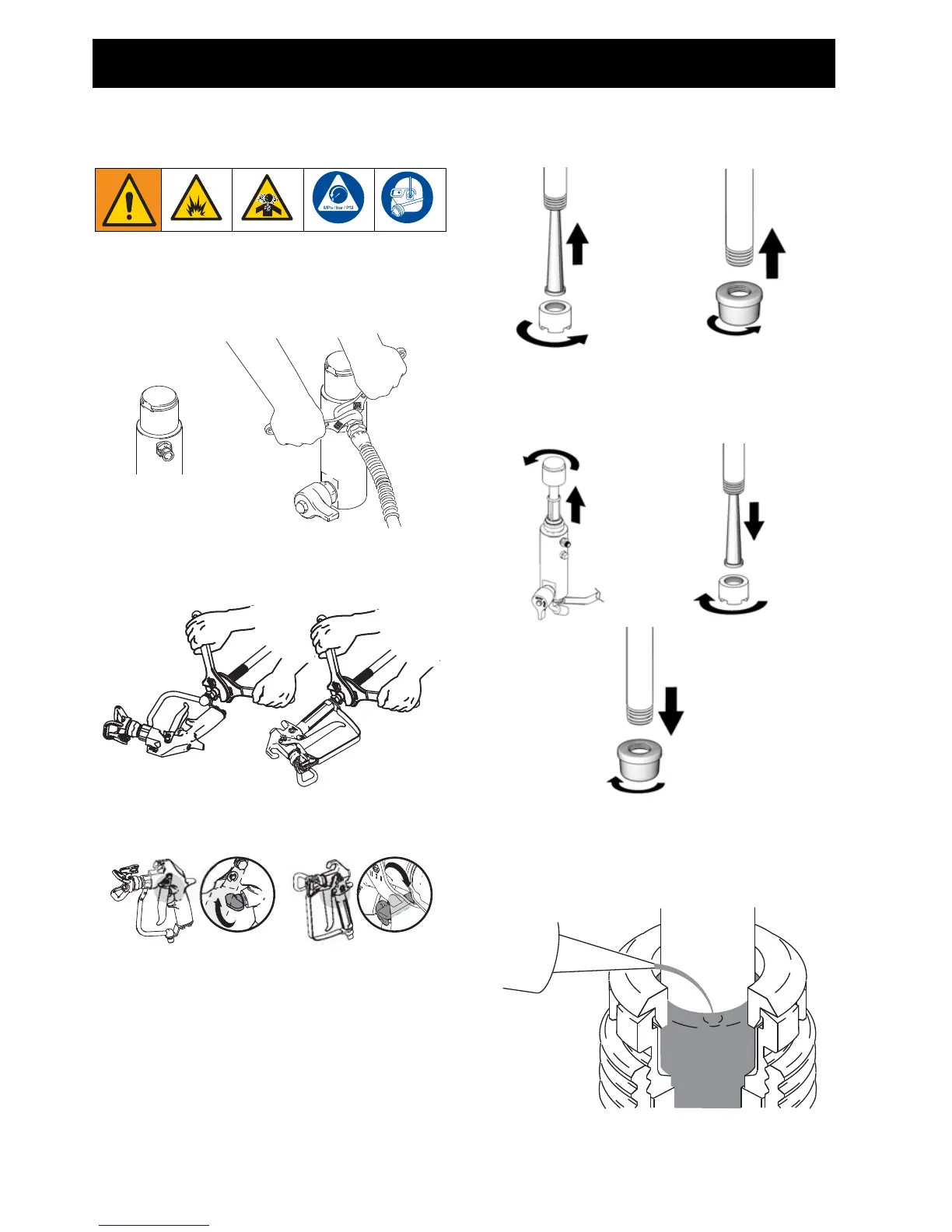

Complete Setup
1. All sprayers except ProContractor:
Connect appropriate Graco
high-pressure hose to sprayer.
2. Install hose to spray gun and tighten
securely.
3. Engage gun trigger lock.
4. Remove Tip Guard.
5. ProContractor Series: Install inlet
strainer into bottom of suction tube,
place inlet nut over end and hand
tighten securely.
Standard Series: Screw inlet strainer to
bottom of suction hose and hand tighten
securely.
6. When spraying texture, remove inlet
strainer and filter bowl screen.
7. Fill throat packing nut with TSL to pre-
vent premature packing wear. Do this
each time you spray.
