Graco DH230 - Page 49

DH230/GH™200/230/300 ProContractor
334558D 49

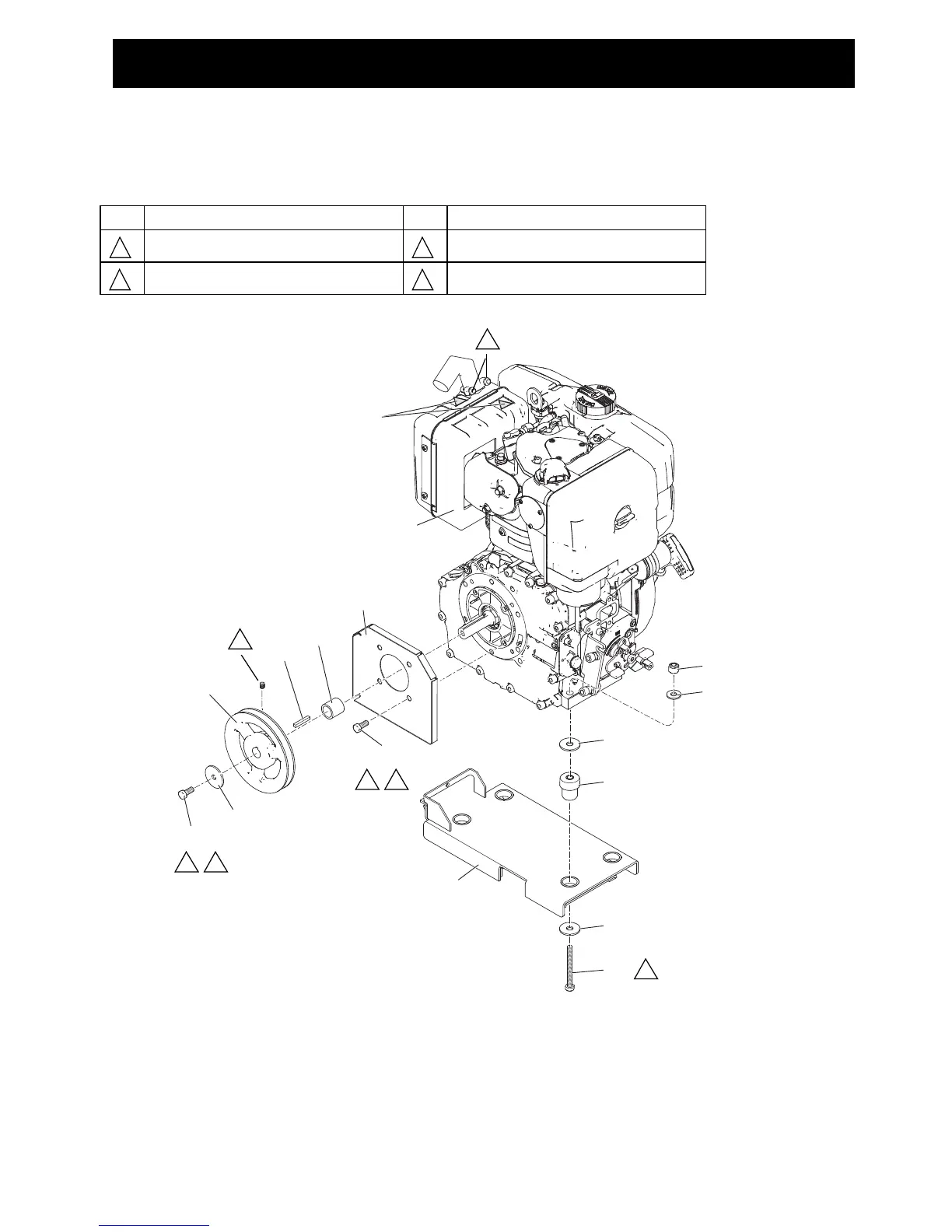

Parts - Engines
DH230 ProContractor Series
Ref. Torque Ref. Torque
120-130 in-lb (13.6 - 14.7 N•m) Apply Locktite 242
58-62 in-lb (6.6 - 7.0 N•m) 65-85 in-lb (7.3 - 9.6 N•m)
1
3
2
4
119
196
161
43
106
126
30
34
30
24
7
154
153
154
23
99
ti28390a
1
2
1 3
1 3
1
