DH230/GH™200/230/300 ProContractor
58 334558D
Parts
GH

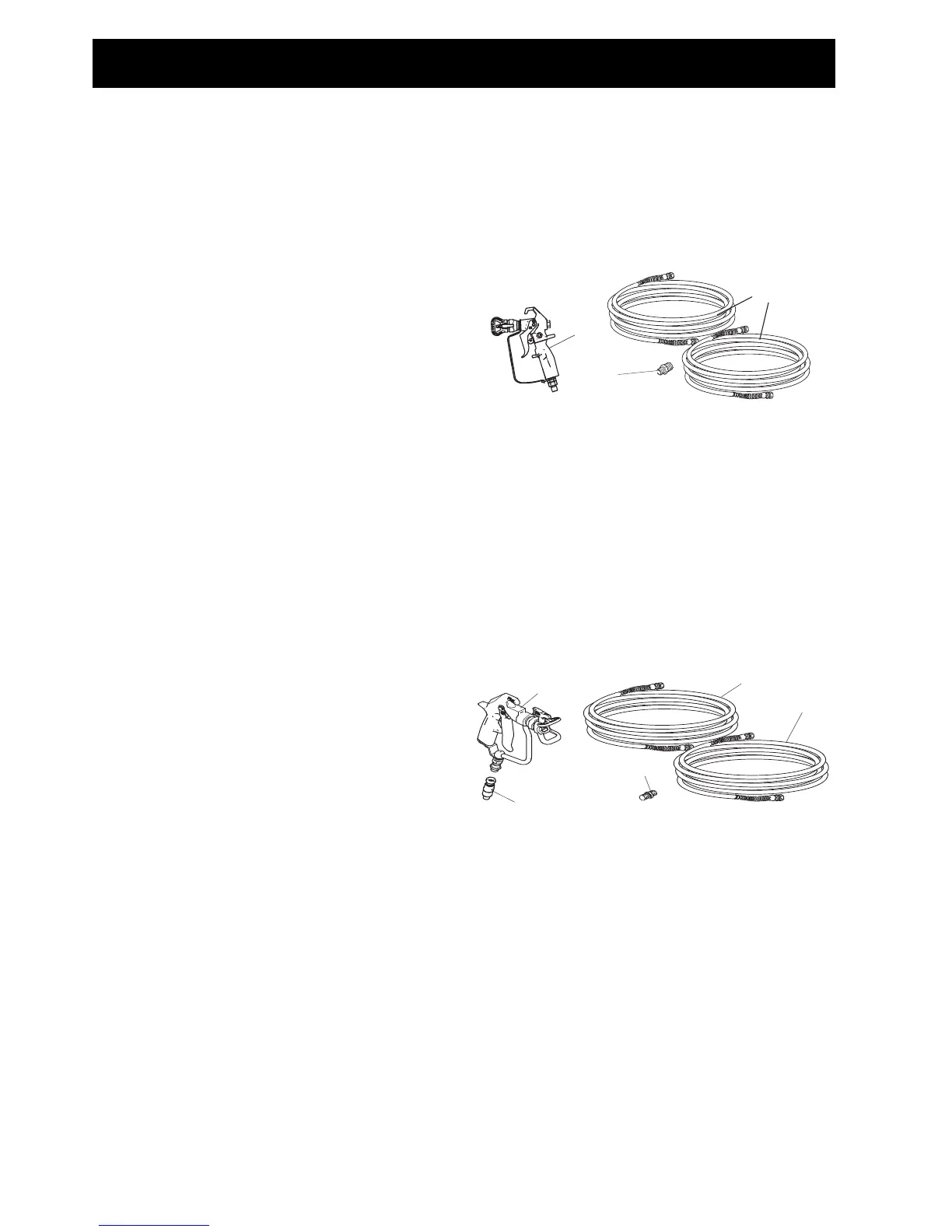

200 ProContractor Series Spray Gun and Hoses (Assembled on Hose Reel)
DH230/GH
230 ProContractor Series Spray Gun and Hoses (Assembled on
Hose Reel)
Ref. Part No. Description
Qty.
202 240794 HOSE, grounded, nylon; 1/4 in.
ID;cpld 1/4-18 npsm; 50 foot
(15 m); spring guards both ends
3300 psi (227 bar, 22.7 MPa)
2
203 288420 Contractor Spray Gun
Includes 517 RAC
®
X
SwitchTip and HandTite
Guard See 311861 for parts
1
204 162453 ADAPTER
1
203
204
202
ti25447a
Ref. Part No. Description Qty.
301 240794 HOSE, grounded, nylon; 1/4 in.
ID;cpld 1/4-18 npsm; 50 foot
(15 m); spring guards both ends
3300 psi (227 bar, 22.7 MPa)
1
302 240797 HOSE, grounded, nylon; 3/8 in.
ID;cpld 3/8-18 npsm; 50 foot
(15 m); spring guards both ends
3300 psi (227 bar, 22.7 MPa)
1
304 246240 Silver Spray Gun
Includes 517 RAC
®
X
SwitchTip and HandTite
Guard See 311254 for parts
1
306 164672 3/8 x 1/4 adapter 1
309 239663 SWIVEL 1
301
306
309
304
302
ti25448a
