DH230/GH™200/230/300 ProContractor
60 334558D

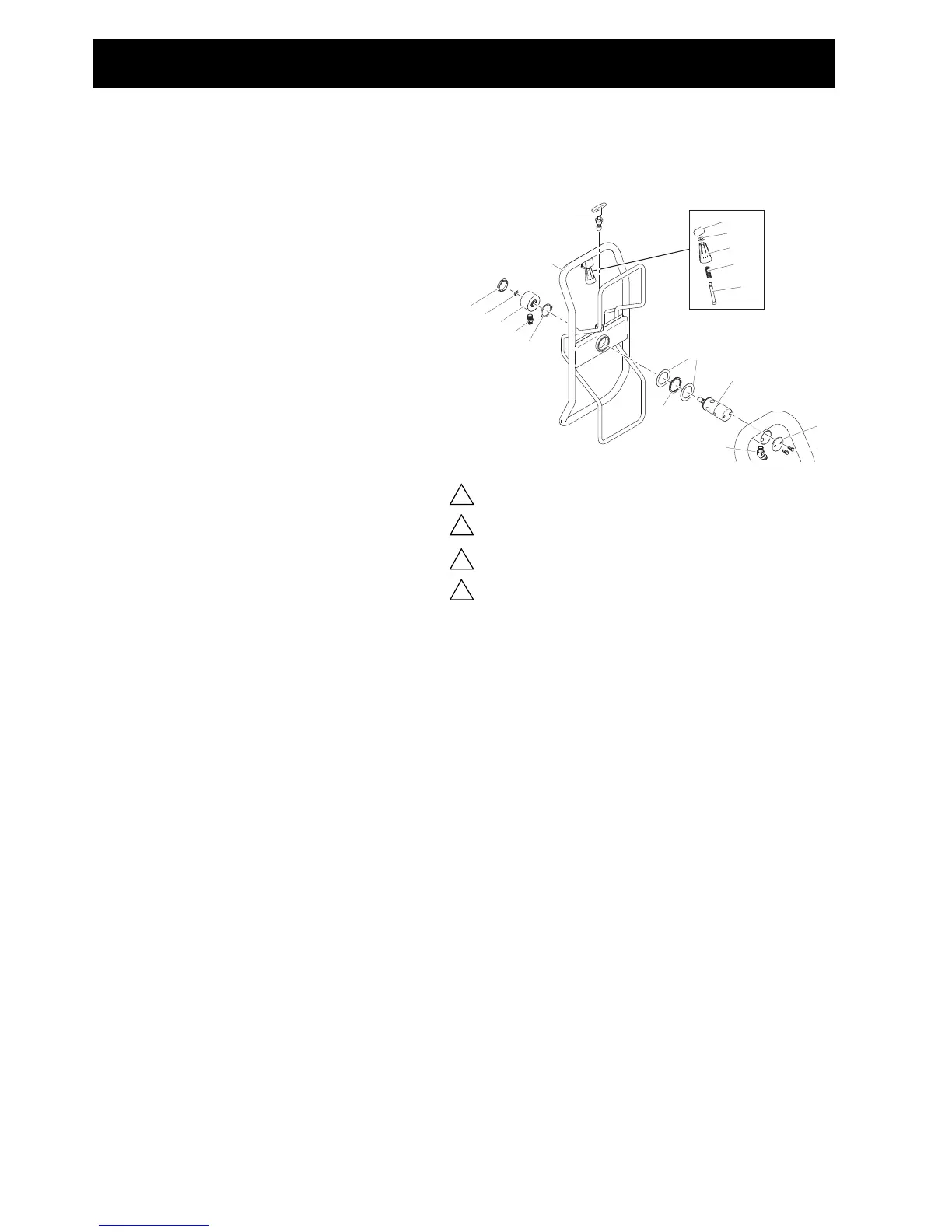

Hose Reel (ProContractor Series)
Ref. Part Description Qty.
6 161889 FITTING, connector 1
8 260212 SCREW, hex washer hd 2
9 16C975 PLATE, pivot mount 1
201 24E016 SEAL, fitting, flared 1
203 122607 WASHER, flat 2
204 122534 SPRING, wave 1
205 24B691 REEL, hose 1
206 122524 RING, retaining, external 1
208 24B248 CAP, swivel, complete 1
209 122347 RING, retaining, external 1
210 122787 CAP 1
211 24E400 PIN, pop, lock out 1
212 278085 HANDLE, swivel 1
213 122518 SCREW, shoulder, sch 1
214 122542 SPRING, die 1
215 122669 WASHER, flat
1
216 15X618 NUT, swivel, handle
1
221 164672 ADAPTER, GH200
1
Torque to 120-130 in-lbs (13.6-14.7 N·m)
196178 ADAPTER,
DH230/GH230/300
1
Torque to 25-35 ft-lbs (33.9-47.5 N·m)
Torque to 130-150 in-lbs (14.7-16.9 N·m)
Loctite 277
