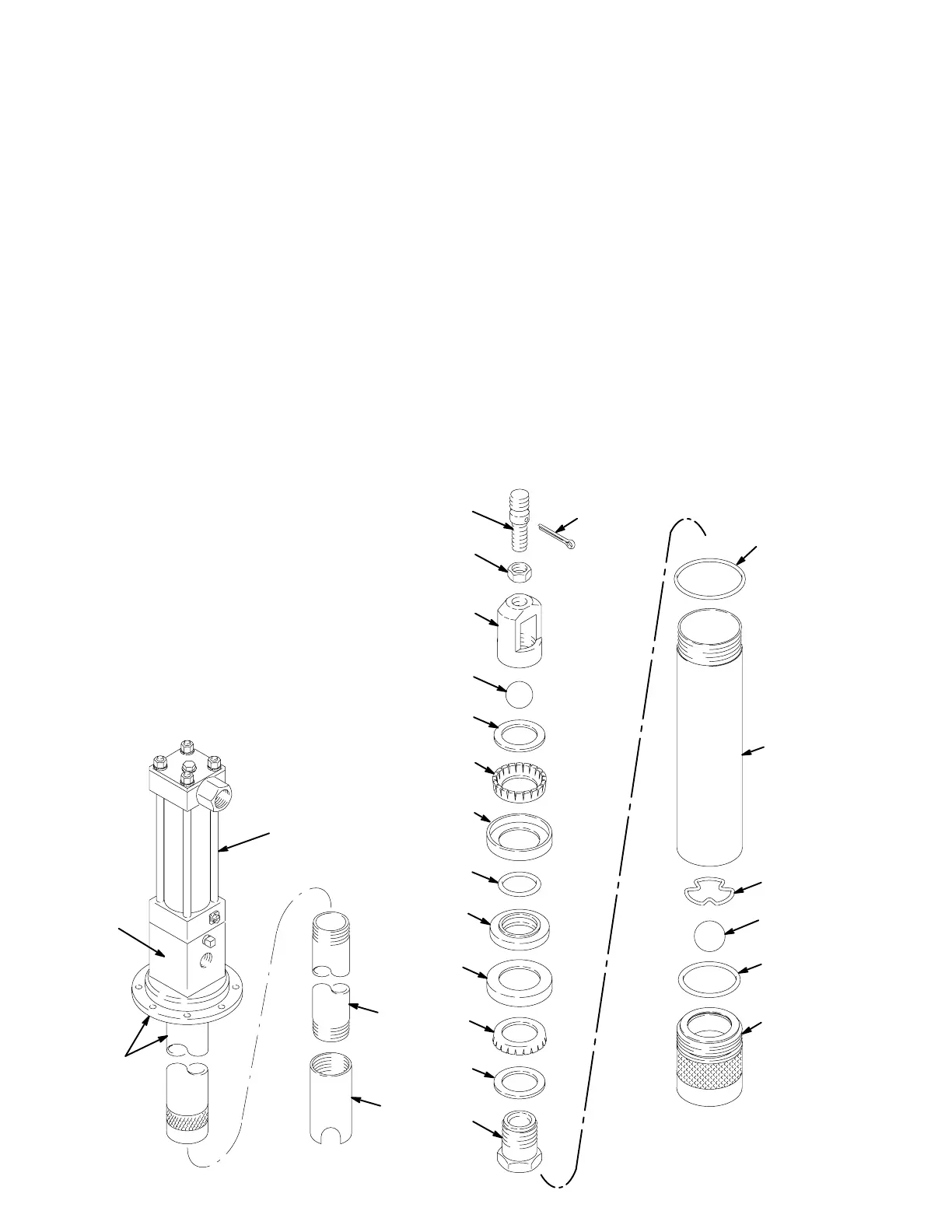

Displacement Pump Parts Drawing and List
Model 224741, Series C, Universal 1:1 Ratio Pump, Includes items 101 to 120
Model 224742, Series C, Hydraulic Reciprocator, Includes items 201 and 202
Ref.
No. Part No. Description Qty.
101 239882 HYDRAULIC RECIPROCATOR
See parts on page 19 1
103 100111 NUT, hex jam, 1/2–20 1
104 157184 HOUSING, piston 1
105n 154662 O-RING, buna–N 1
106 158857 SPACER, fluid piston packing 1
107 156989 SEAT, piston 1
108 183010 CYLINDER, displacement 1
109 101190 BALL, steel, 1” (25 mm) dia 1
110 183009 BODY, valve 1
111 156633 O-RING, nitrile rubber 1
112 157182 RETAINER, ball 1
113n 171590 WASHER, spreader 2
114n 158402 PACKING, leather cup 2
115n 171594 WASHER, back-up 2
116 100279 BALL, steel 0.88” (22.2 mm) dia 1
117 183529 ROD, connecting 1
118 100103 PIN, cotter, 0.125” (3.2 mm) dia,
1.5” (38 mm) long 1
119* 108993 O-RING, buna–N 1
120 183741 LABEL 1
* These parts are included in Repair Kit 223426, which may
be purchased separately. See page 19.
n Keep these spare parts on hand to reduce downtime.
Ref.
No. Part No. Description Qty.
201 224741 1:1 RATIO DYNA-STAR
RECIPROCATOR & PUMP
See parts list to left 1
202 222346 DROP TUBE
Includes items 202a and 202b 1
202a 185151 TUBE 1
202b 110127 .SPACER, foot 1
