Graco EM 390 - Page 27

with Flex Gun
Model 231-061 Complete Sprayer
Includes
items 1 to 126, 200 to 204
Model 220728 Basic Sprayer
Includes
items 1 to 126

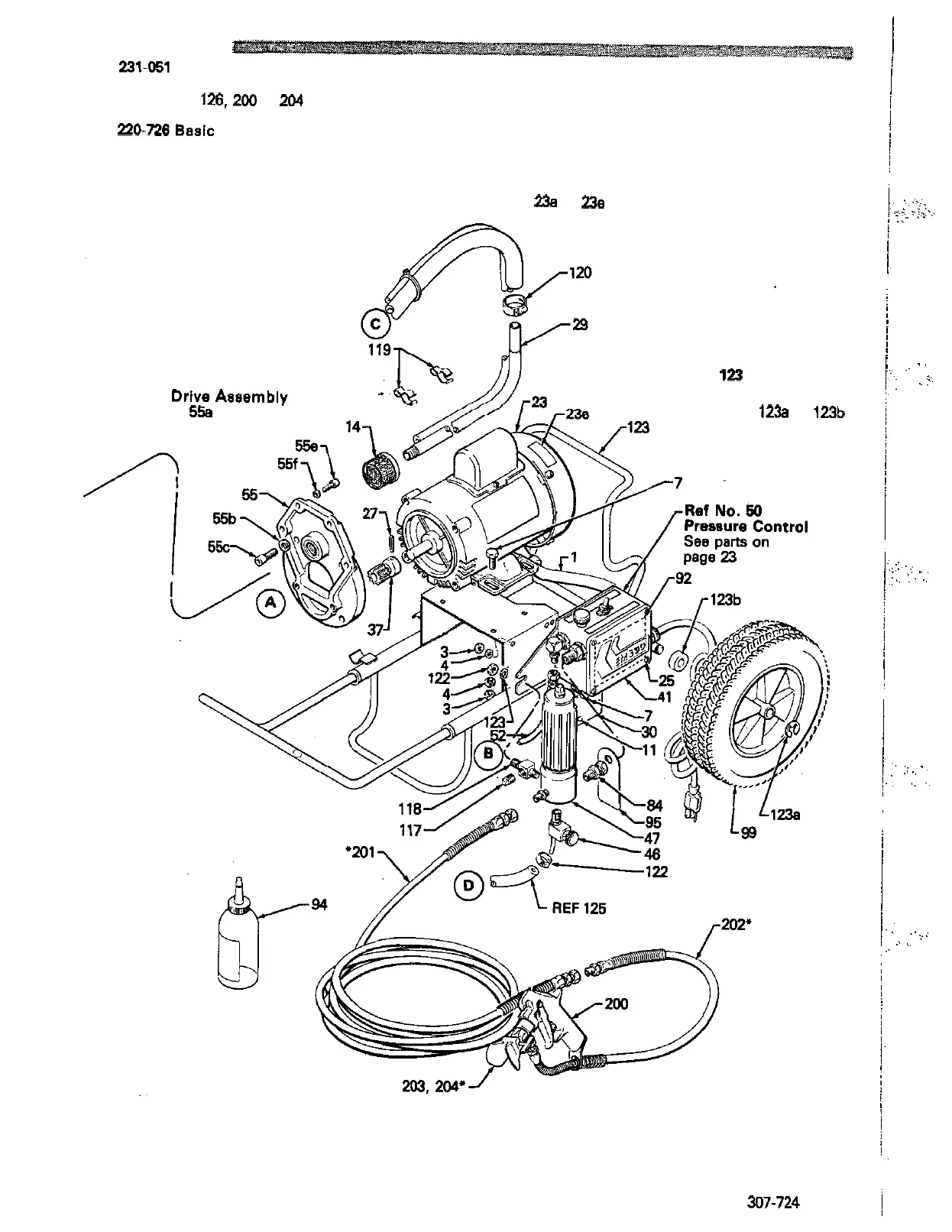

PARTS DRAWING
Includes
items 23a to
23e
Ref No.
23 Electric
Motor Assembly
Ref
No. 123
Ref No. 66 Drive Assembly Cart Assembly
Includes
items 55a to 55f Includes items 12% to 123b
307-724 27
:. :, ..:
..
