Grounding
310812P 3
Grounding

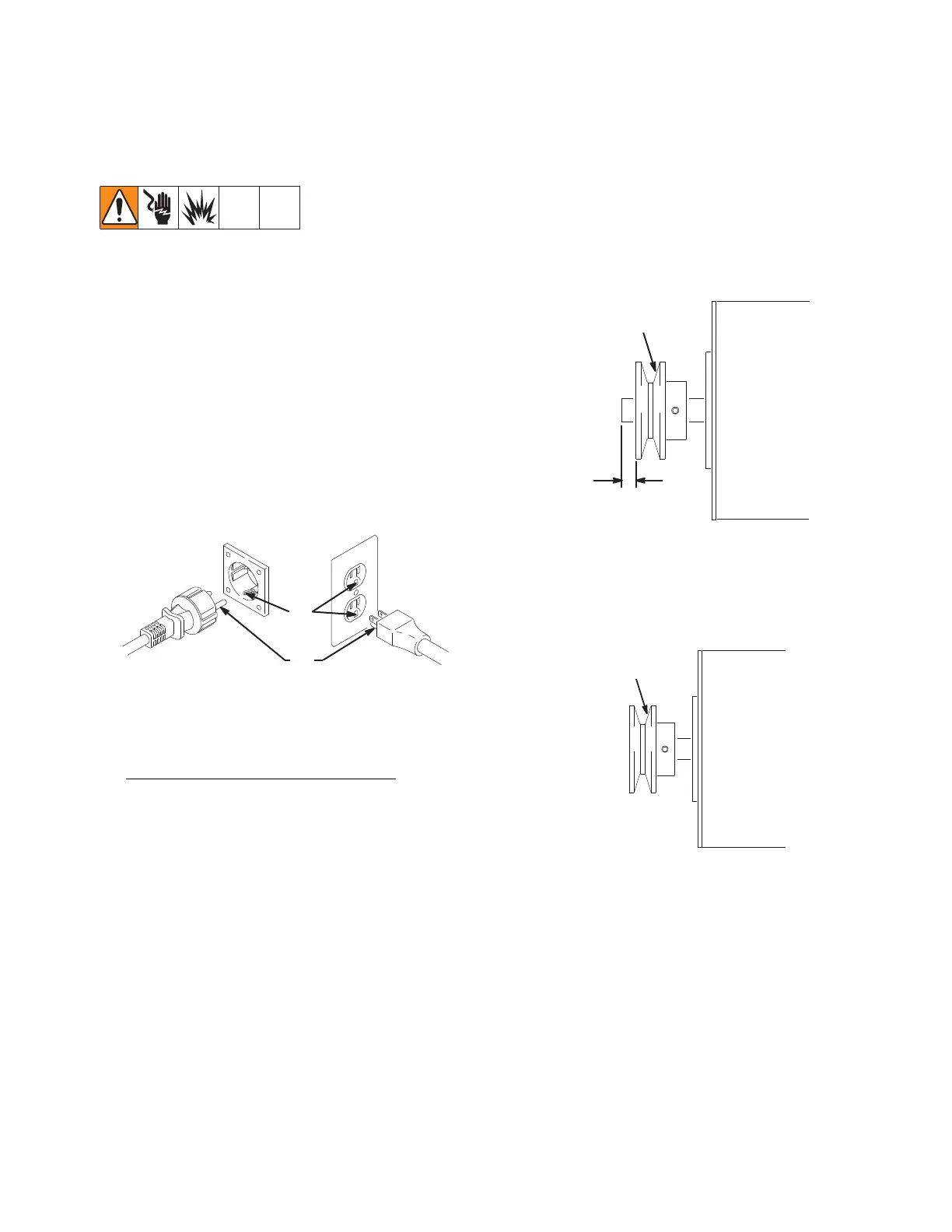

Improper installation or alteration of the grounding plug
will result in a risk of electric shock, fire or explosion that
could cause serious injury or death.
The sprayer must be grounded. Grounding reduces the
risk of static and electric shock by providing an escape
wire for the electrical current due to static build up or in
the event of a short circuit.
• 120 Vac: requires a 120 Vac, 60 Hz, 20A (15A for
248949) circuit with a grounding receptacle (A). 230
Vac: requires a 230 Vac, 50 Hz, 13A circuit with a
grounding receptacle (A). Never use an outlet that is
not grounded (A) or an adapter.
• Do not use sprayer if electric cord has a damaged
ground prong (B). Only use an extension cord with
an undamaged 3-prong plug.
Recommended extension cord lengths:
• 25 ft (7.6 m) 18 AWG
• 50 ft (15.2 m) 16 AWG
• 100 ft (30.5 m) 14 AWG
• 150 ft (45.7 m) 12 AWG
Smaller gauge or longer cords may reduce
sprayer performance.
• If the power cord or plug is damaged, replace with
the appropriate cord listed in the Parts List.
Power Requirements
• 380-400V units require 400 VAC, 50 Hz, 16A,
3 phase, 3P+N+E, 6H power connection
• To operate the EH300DI (24M056) sprayer, the
generator needs to be sized for 15 kW output
(minimum).
Pulley Placement
Sprayer Models:
248559, 248560, 248561,248565, 248566, 248568, 253709,
253957, 253959, 253980, 253960, 253962, 253963, 253981,
253964, 253965, 253966, 253982
Align pulley (4) approximately 0.20 in. from end of electric
motor shaft.
Models:
233940, 233941, 233942, 233943, 248946, 24M668, 24M669
Align pulley (4) at end of electric motor shaft.
