Graco GH 200 Instructions-Parts List

Parts Drawing
4 309663F

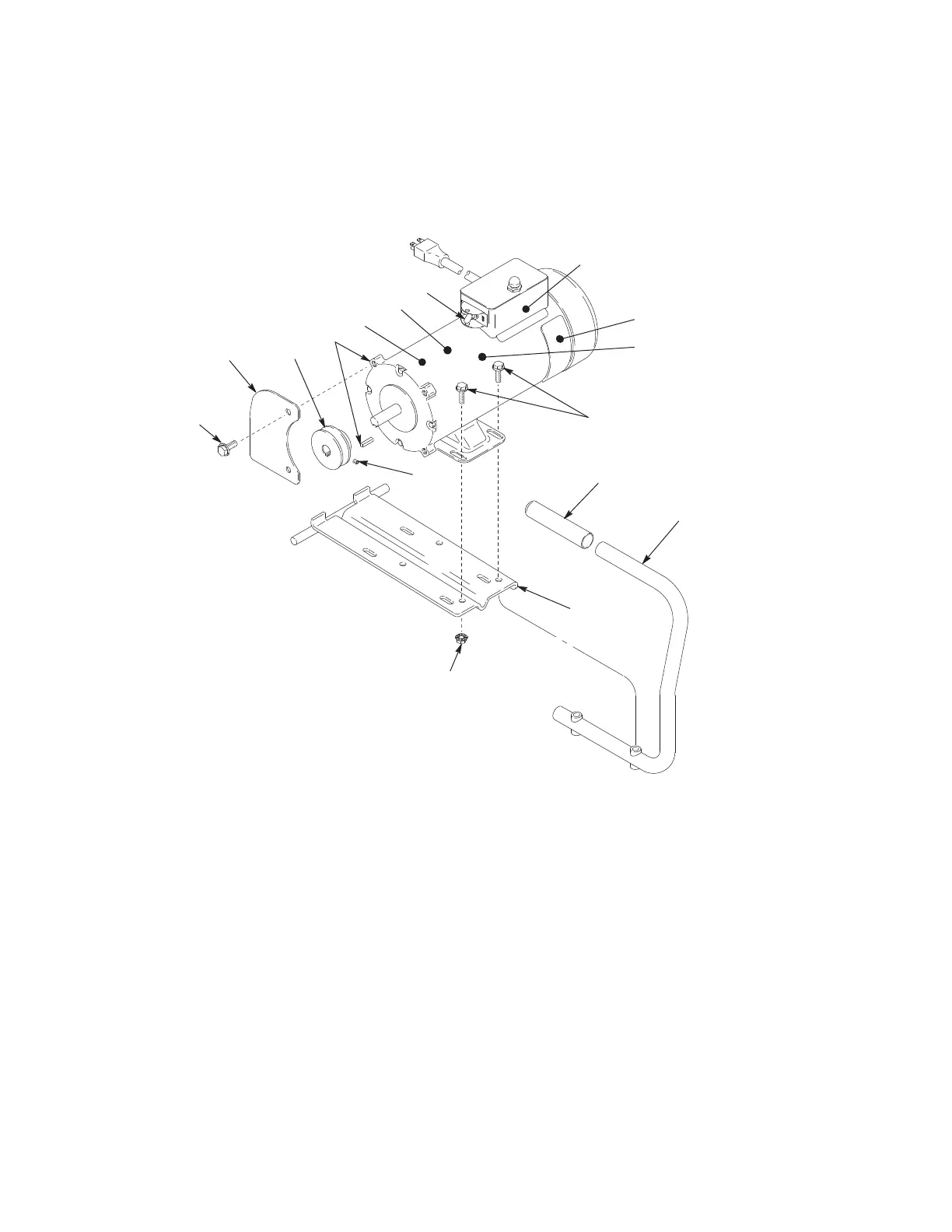

Parts Drawing
Models 248949 and 248950
ti2276b
1
14
6
3
10
1
15
5
11
17
16
8
7
†
4
19
Ref. Part Description Qty.
1† ELECTRIC MOTOR
246129 NON-CSA, 2.0 HP, includes 19 1
246125 CSA, 2.0 HP, includes 19 1
3 198838 BRACKET, mount, engine 1
4 15A752 PULLEY, 2.5 in. 1
5 112586 SCREW, cap, hex hd 4
6 110996 NUT, flanged, hex 2
7 100002 SCREW, set 2
8 LABEL, warning
187975 NON-CSA 1
193096 CSA 1
10 15D523 LABEL, warning 1
11 189285 LABEL, safety 1
14 246214 HANDLE, conversion 1
15 111700 GRIP, handle 1
16 111192 SCREW, cap, flange hd 2
17 15B562 BRACKET, guard, motor 1
18 176347 LABEL, identification 1
19 287145 SWITCH, breaker 1
 Replacement Danger and Warning labels, tags, and
cards are available at no cost.
†
Brush Repair Kit 220853 is available
Ref. Part Description Qty.
