Fan Belt
12 311797F
Fan Belt
(Figure 3)
Removal
1. Relieve pressure, page 7.
2. Loosen belt guard knob (55).
3. Rotate belt guard (117) up.
4. Lift engine (119) up to remove tension on belt (44).
5. Remove belt from pulley (43) and fan pulley (96).
Installation
1. Thread belt (44) around drive pulley (43) and fan pulley
(96).
2. Let engine (119) down to put tension on belt.
3. Rotate belt guard (117) down.
4. Tighten belt guard knob (55).

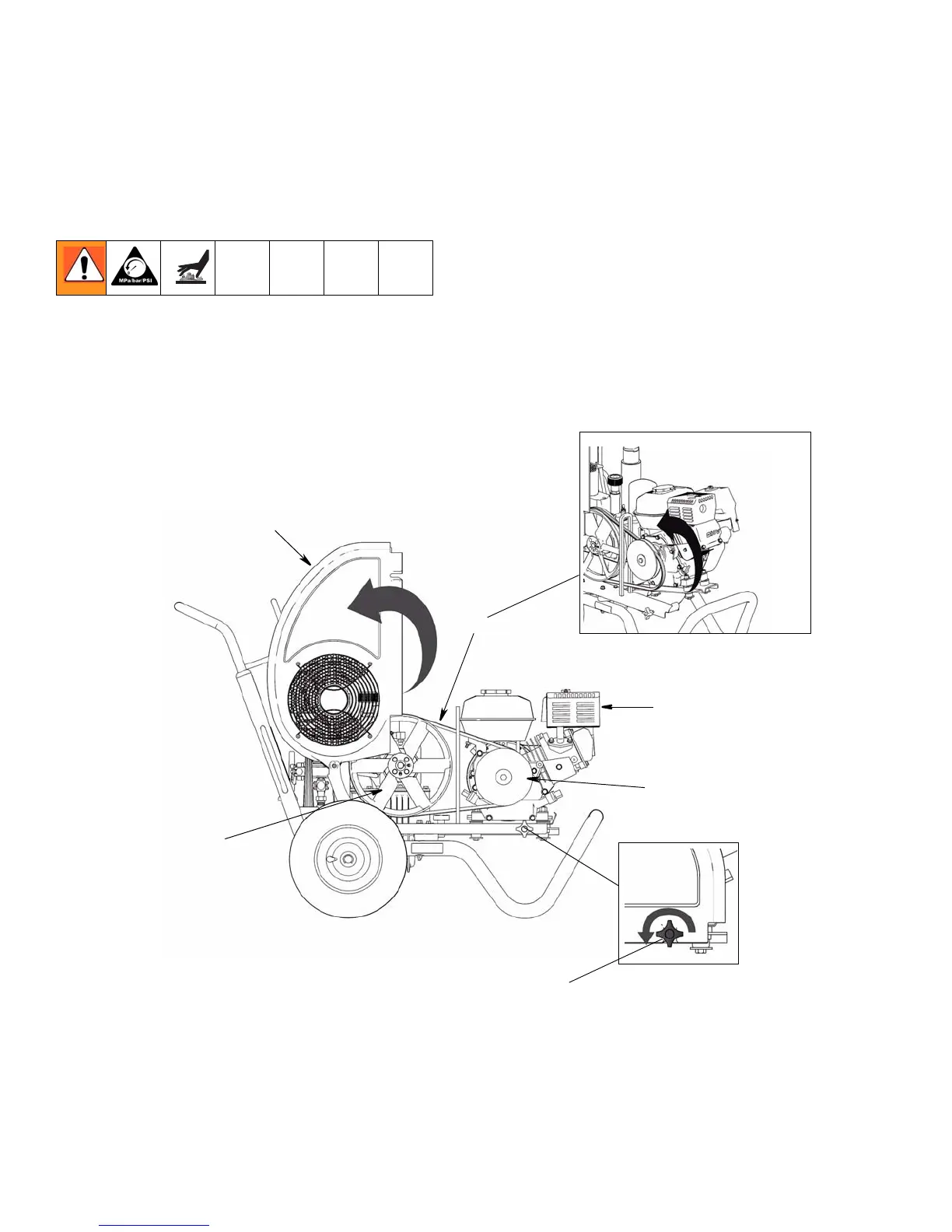

FIG. 3
55
43
119
44
117
96
ti8814a
ti8816a
ti8815a
