Engine
311797F 13
Engine

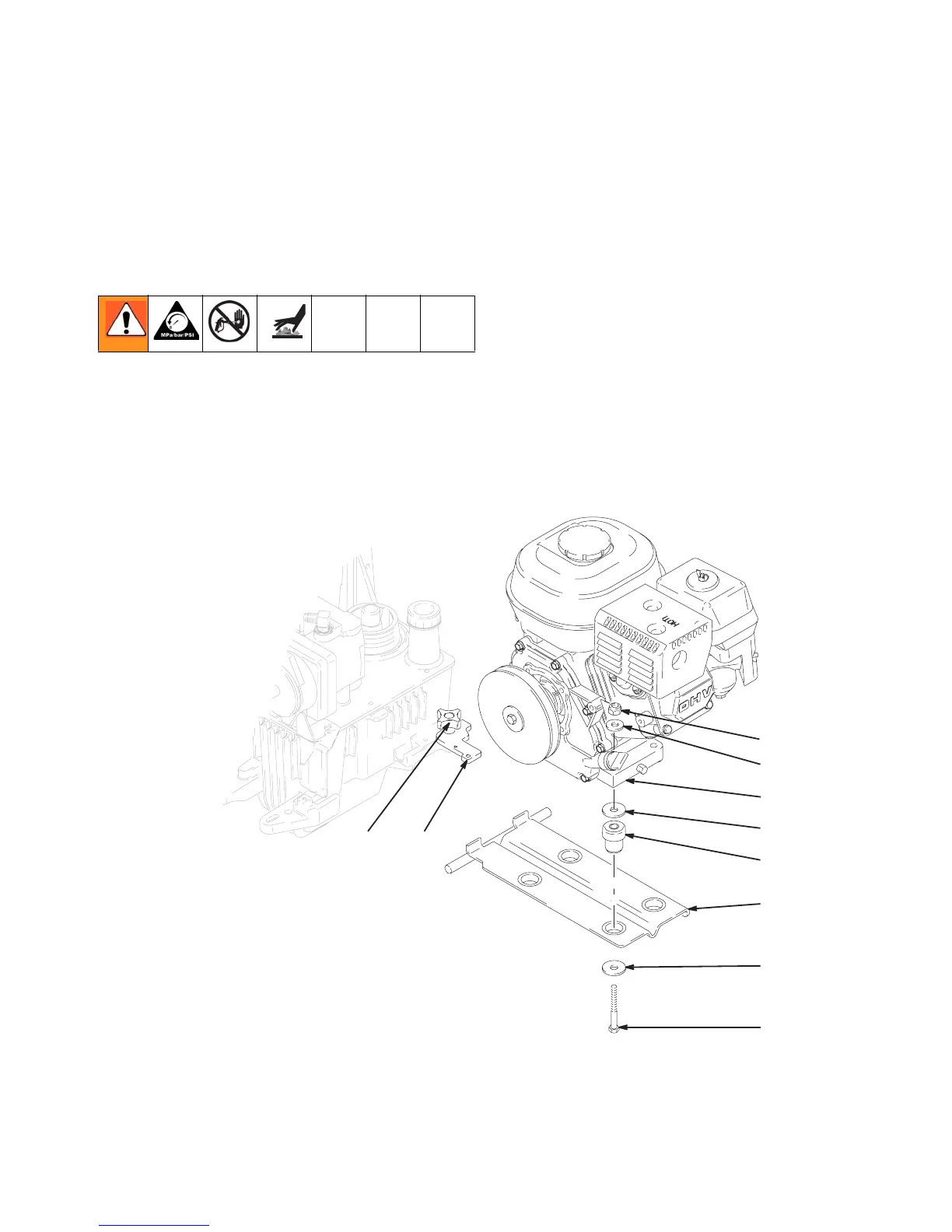

(Figure 4)
Removal
NOTE: All service to the engine must be performed by
an authorized HONDA dealer.
1. Relieve pressure, page 7.
2. Remove Fan Belt, page 10.
3. Loosen motor nut (205). Swing motor retainer bracket (204)
out.
4. Remove engine (119) and rocker plate (99) from sprayer.
5. Remove four screws (23), washers (7) and nuts (24) and
remove rocker plate (99), dampeners (153) and washers
(154) from engine (119).
Installation
1. Install rocker plate (99), dampeners (153) and washers
(154) on engine (119) with four screws (23), washers (7)
and nuts (24); torque to 125 in-lb (14.1 N·m).
2. Install engine and rocker plate (99) on sprayer.
3. Swing motor retainer bracket (204) in. Tighten motor nut
(205).
4. Install Fan Belt, page 10.
FIG. 4
