Startup
332156D 11

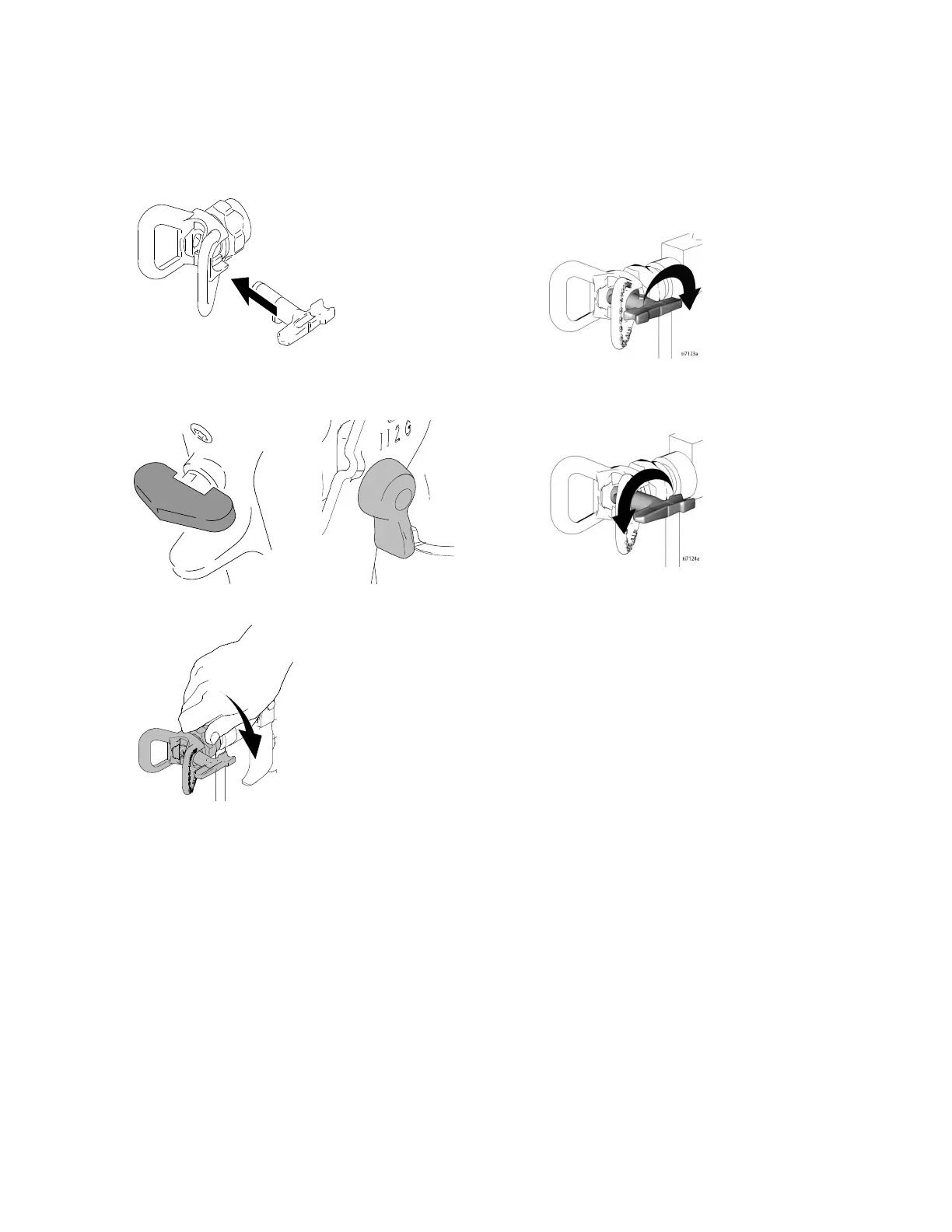

SwitchTip and Guard Assembly
1. Insert SwitchTip. Insert seat and OneSeal.
NOTE: Before screwing tip and guard assembly on
gun, perform Pressure Relief Procedure, page 7,
and be sure gun trigger safety is ON.
2. Screw assembly onto gun. Hand tighten.
Clearing Tip Clogs
1. Release trigger, put trigger safety ON. Rotate
SwitchTip. Take trigger safety OFF and trigger
gun to clear the clog.
2. Put trigger safety ON, return SwitchTip to original
position, take trigger safety OFF and continue
spraying.
3. If you suspect the spray tip or hose is clogged or
that pressure has not been fully relieved after follow-
ing the steps above, VERY SLOWLY loosen tip
guard retaining nut or hose end coupling to relieve
pressure gradually, then loosen completely. Clear
hose or tip obstruction.
ti5257ba
ti21142a
ti20728a
