Cleanup
14 332156D

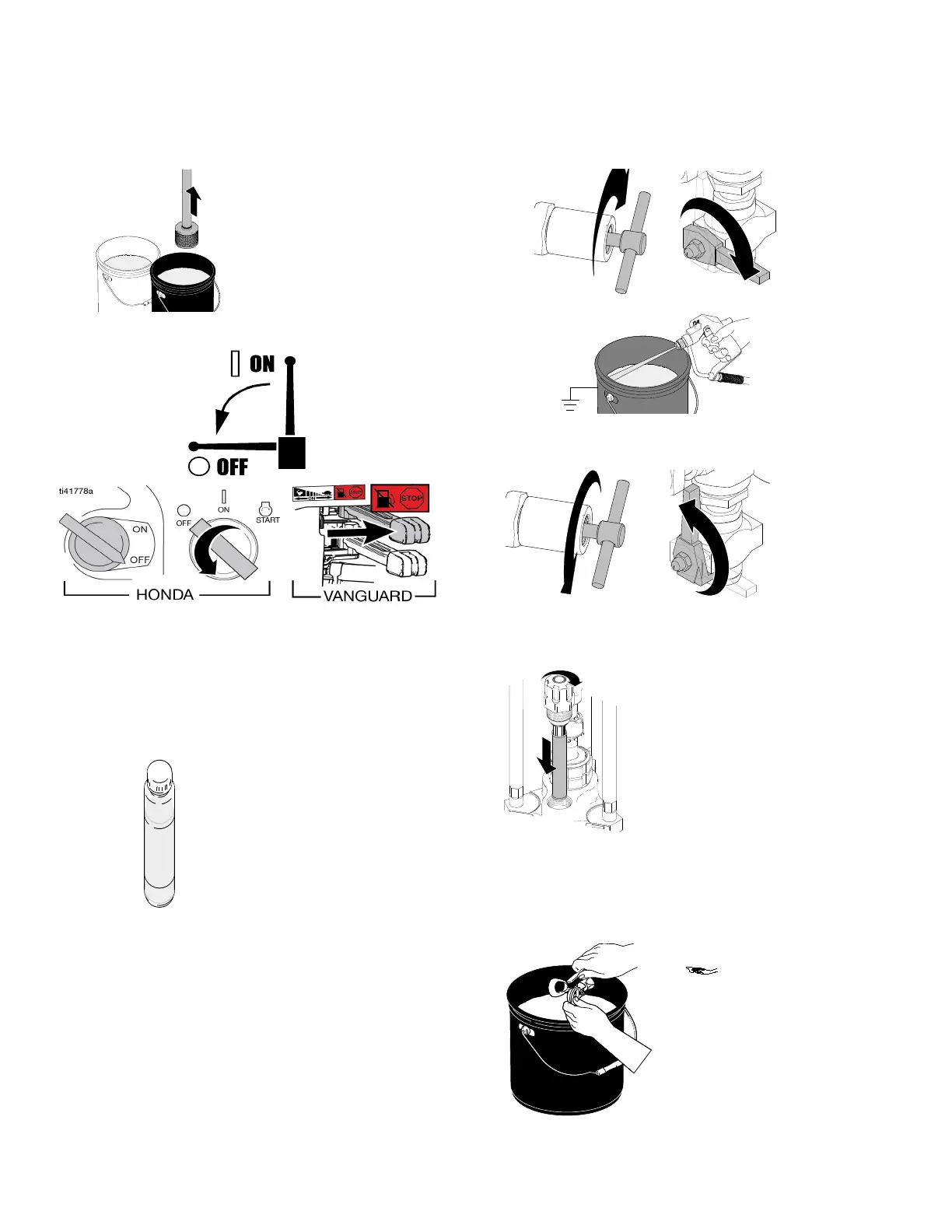

12. Raise siphon tube above flushing fluid and run
sprayer for 15 to 30 seconds to drain fluid.
13. Turn pump valve OFF. Turn engine OFF.
Caution: If flushing with water, do not leave water in
sprayer. Flush again with mineral spirits, oil or Pump
Armor and leave this protective coating in the sprayer to
help prevent freezing or corrosion and increase sprayer
life.
14. Rotate handle clockwise to close prime valve. Trig-
ger gun into flushing pail to purge fluid from hose.
15. Rotate handle counter-clockwise to open prime
valve.
16. If pump includes filter, install filter into filter bowl.
Make sure plastic center tube is tightened securely.
Hand tighten filter bowl. Hand tighten gun handle.
17. Clean tip, guard and gasket with a soft bristle brush
to prevent part failure due to dried materials.
Assemble parts and attach loosely onto gun. Wipe
sprayer, hose and gun with a rag soaked in water or
mineral spirits.
