Grounding Instructions
3A8429B 11

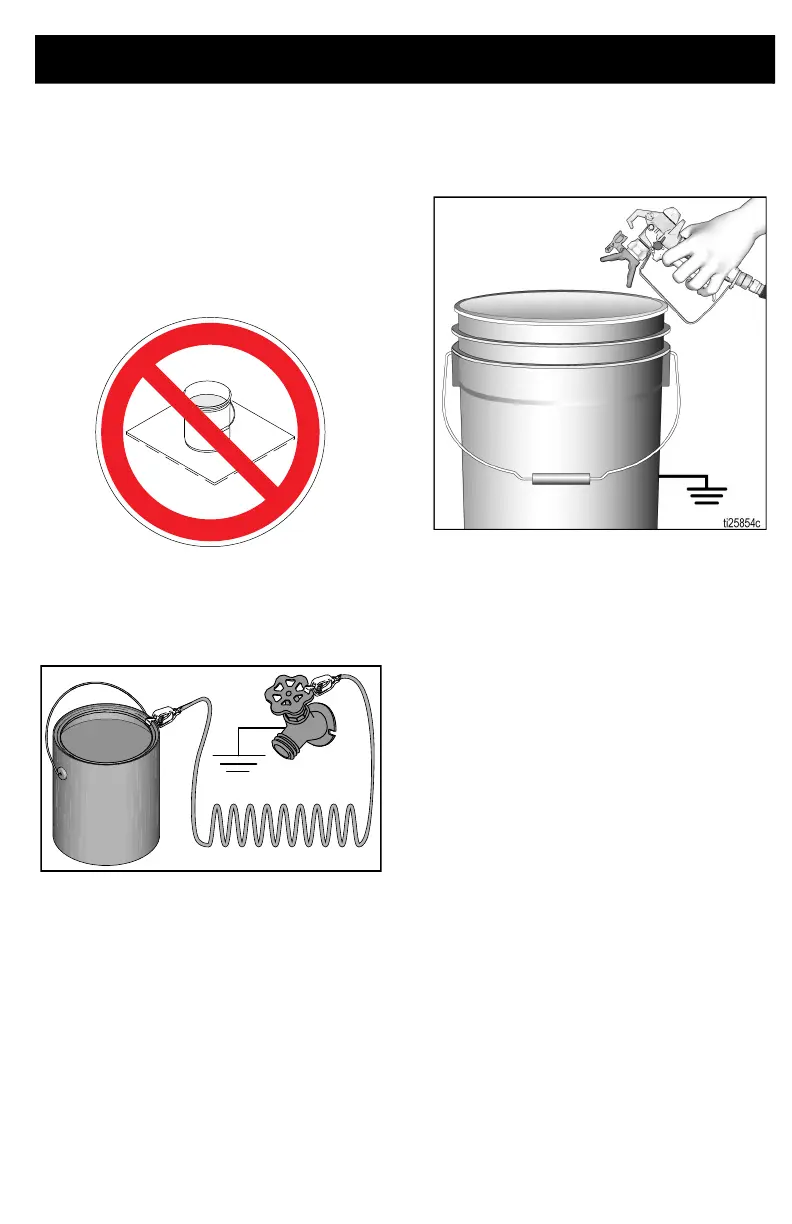

Pails
Solvent and oil-based fluids: follow local
codes and regulations. Use only conductive
metal pails, placed on a grounded surface
such as concrete.
Do not place pail on a non-conductive surface
such as paper or cardboard which interrupts
grounding continuity.
Always ground a metal pail: connect a
ground wire to the pail. Clamp one end to the
pail and the other end to a true earth ground
such as a water pipe.
To maintain ground continuity when
sprayer is flushed or pressure is relieved:
hold metal part of spray gun firmly to the side
of a grounded metal pail then trigger the gun.
ti24584a

Graco GX21 Specifications

General

Maximum Operating Pressure	3300 psi
Hose Length	50 ft
Power Source	Electric
Max. Working Pressure	3300 psi
Type	Airless Paint Sprayer
Voltage	120V
Maximum Tip Size	0.021 inch
Motor	DC Motor
Flow Rate	0.31 GPM
Tip Size	0.021 in
