Operation
18 3A8429B
Fill Pump
For Stand Models

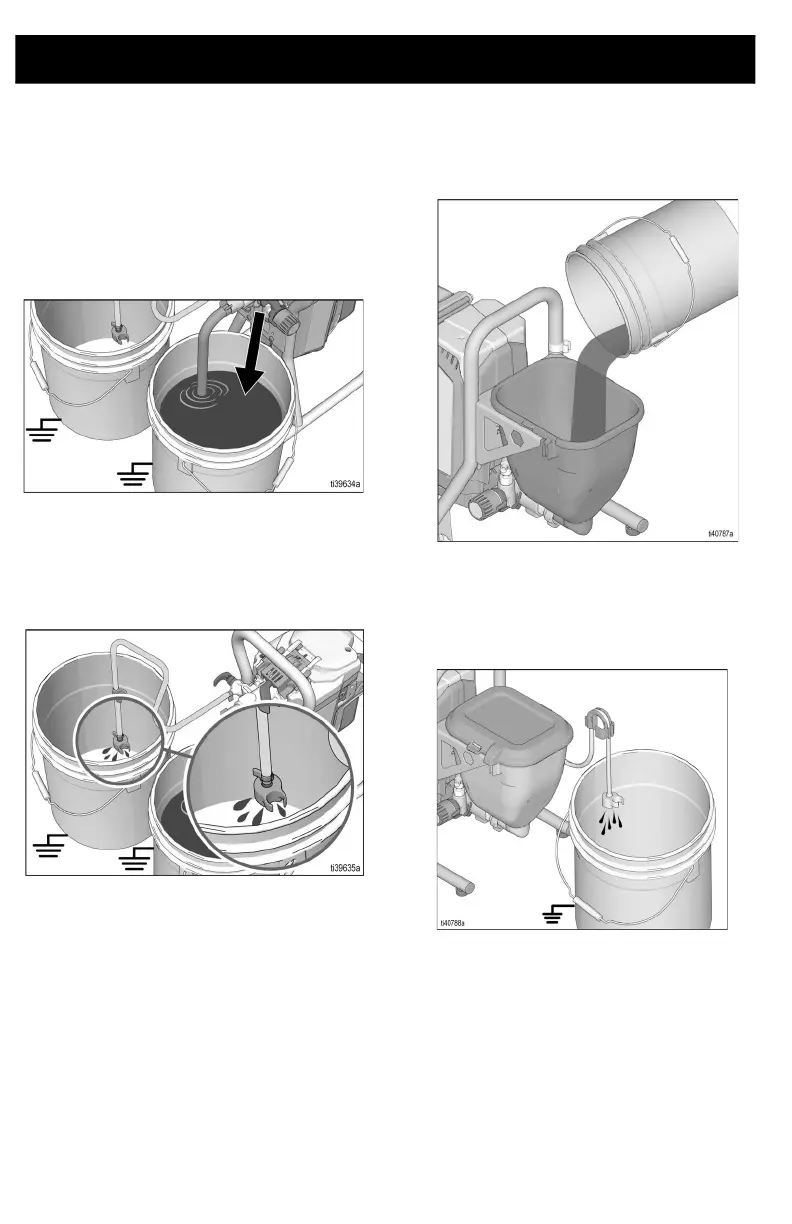

1. Move suction tube to paint pail and
submerge suction tube in paint. When
spraying oil-based or flammable
materials, follow Grounding
Instructions, page 10.
2. Press ON/OFF switch to ON position.
Button is illuminated when power is ON.
3. Wait to see paint coming out of the
drain tube.
4. Press ON/OFF switch to OFF position.
Button is not illuminated when power is
OFF.
NOTE: Some fluids may prime faster if
the ON/OFF switch is momentarily
turned off so the pump can slow and
stop. Turn ON/OFF switch on and off
several times if necessary.
For Hopper Models
1. Add paint to hopper. When spraying
oil-based or flammable materials, follow
Grounding Instructions, page 10.
2. Press ON/OFF switch to ON position.
Button is illuminated when power is ON.
3. Wait to see paint coming out of the
drain tube.
4. Press ON/OFF switch to OFF position.
Button is not illuminated when power is
OFF.
NOTE: Some fluids may prime faster if
the ON/OFF switch is momentarily
turned off so the pump can slow and
stop. Turn ON/OFF switch on and off
several times if necessary.

Graco GX21 Specifications

General

Maximum Operating Pressure	3300 psi
Hose Length	50 ft
Power Source	Electric
Max. Working Pressure	3300 psi
Type	Airless Paint Sprayer
Voltage	120V
Maximum Tip Size	0.021 inch
Motor	DC Motor
Flow Rate	0.31 GPM
Tip Size	0.021 in
