Graco GX21 User Manual

Cleanup
30 3A8429B

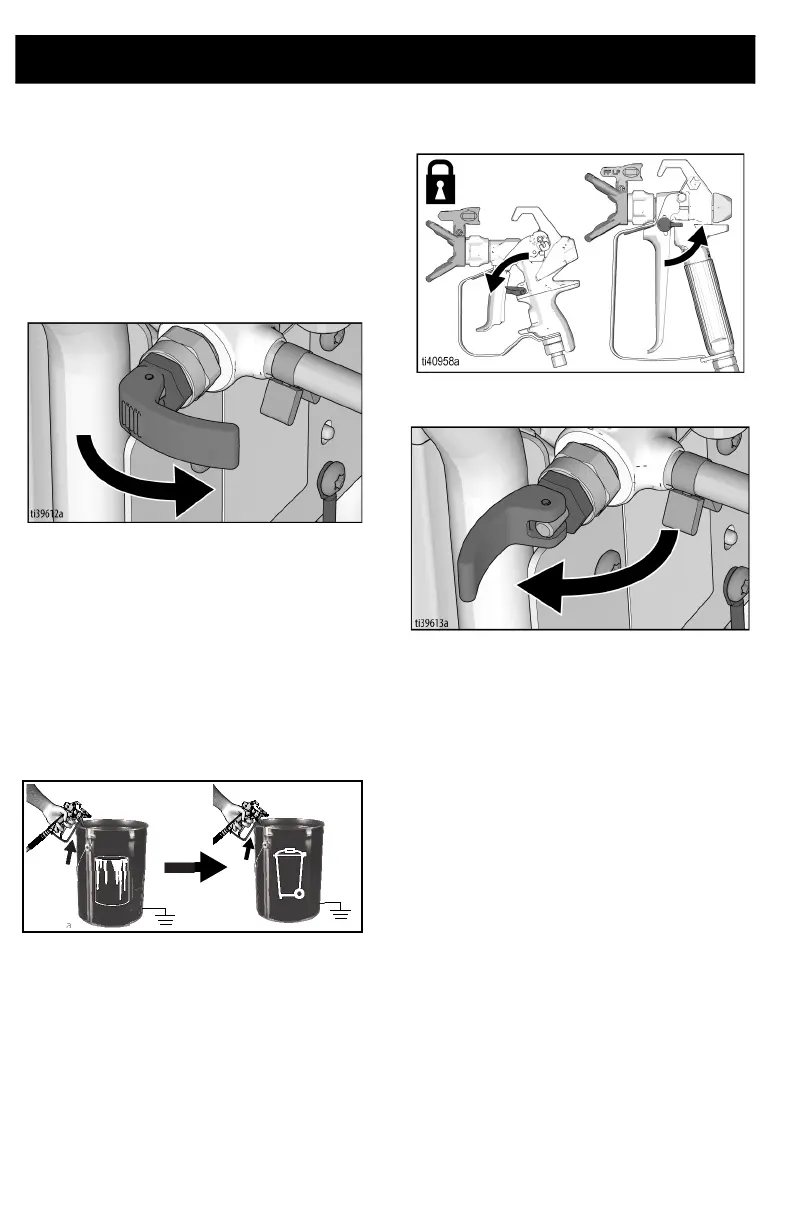

NOTE: Step 11 is for returning paint in hose
to paint pail. One 50 ft (15 m) hose holds
approximately 1 quart (1 liter) of paint.
11. To recover paint in hose:
a. Point gun into paint pail.
b. Disengage trigger lock.
c. Pull and hold gun trigger.
d. Place Prime/Spray valve in SPRAY
position.
e.
Press ON/OFF switch to power ON.
Button is illuminated when ON.
f. Continue to hold gun trigger until
you see paint diluted with flushing
fluid starting to come out of gun.
12. While continuing to trigger gun, quickly
move gun to redirect spray into waste
pail. Continue triggering gun into waste
pail until flushing fluid dispensed from
gun is relatively clear.
*
13. Stop triggering gun. Engage the trigger
lock.
14. Place Prime/Spray valve in PRIME
position.
15.
Press ON/OFF switch to power OFF. But-
ton is not illuminated when OFF.
16. On sprayers with a filter, see Cleaning
InstaClean
™
Fluid Filter, page 31.
17. Fill unit with Pump Armor
™
storage
fluid. See Storage, page 32.
18. Remove battery, see Battery Installa-
tion and Removal, page 13.
ti27151a

Graco GX21 Specifications

General

Maximum Operating Pressure	3300 psi
Hose Length	50 ft
Power Source	Electric
Max. Working Pressure	3300 psi
Type	Airless Paint Sprayer
Voltage	120V
Maximum Tip Size	0.021 inch
Motor	DC Motor
Flow Rate	0.31 GPM
Tip Size	0.021 in
