Know Your Sprayer
3A8429B 9

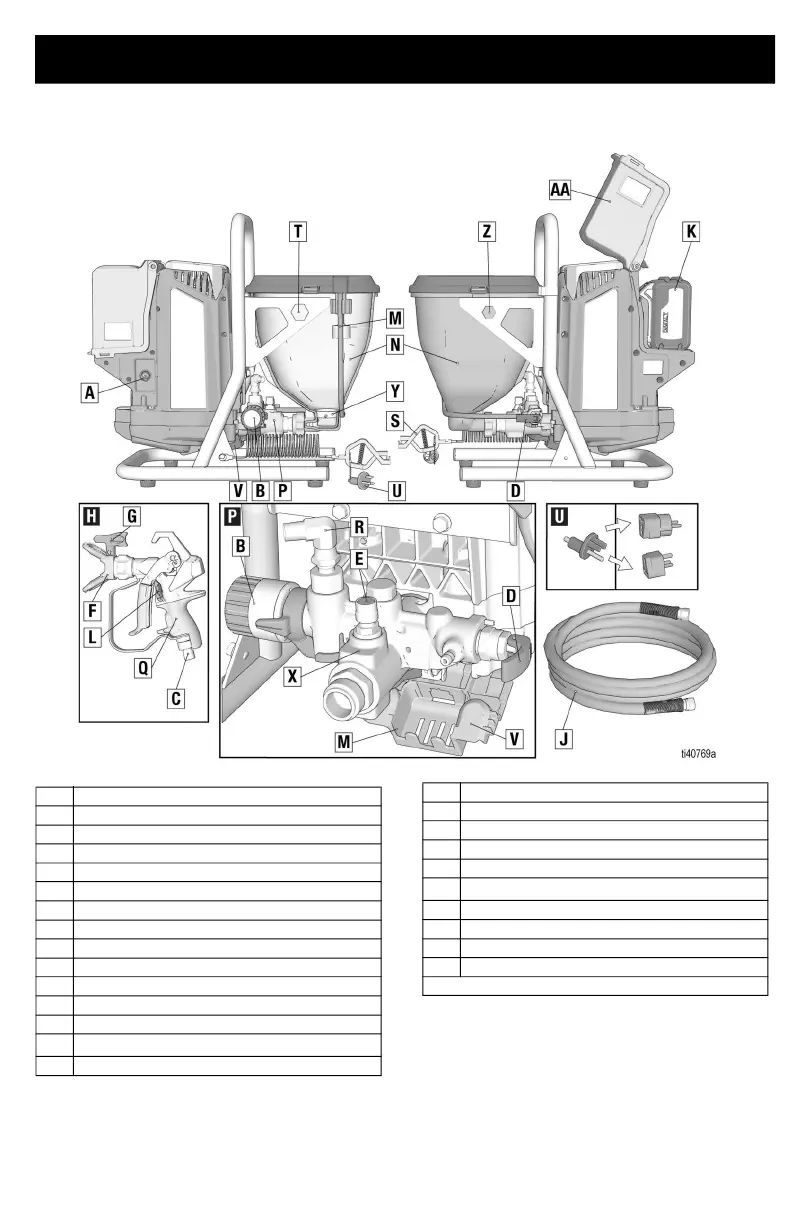

GX19 and GX FF Component Identification
A ON/OFF Switch
B Pressure Control Knob
C Gun Fluid Inlet Fitting
D Prime Valve
E Push Prime Button
F Tip Guard
G Reversible Spray Tip
H Airless Spray Gun
J Airless Hose
K Battery
L Gun Trigger Lock
M Drain Tube (with Diffuser)
N Hopper
P
ProXChange
™
Pump
Q Gun Fluid Filter (inside handle)
R Fluid Outlet Fitting (airless hose connection)
S Ground Wire with Clamp
T Inlet Valve Removal Tool
U Ground Adapter
V Easy Access Door
X
InstaClean
™
Fluid Filter (inside fluid outlet)
Y Inlet Strainer, Inside Hopper (not shown)
Z Pump Removal Tool
AA Battery Shroud
Model/Serial Tag (Not shown, located on frame)
See Quick Reference, page 34 for more information.
