12 306796

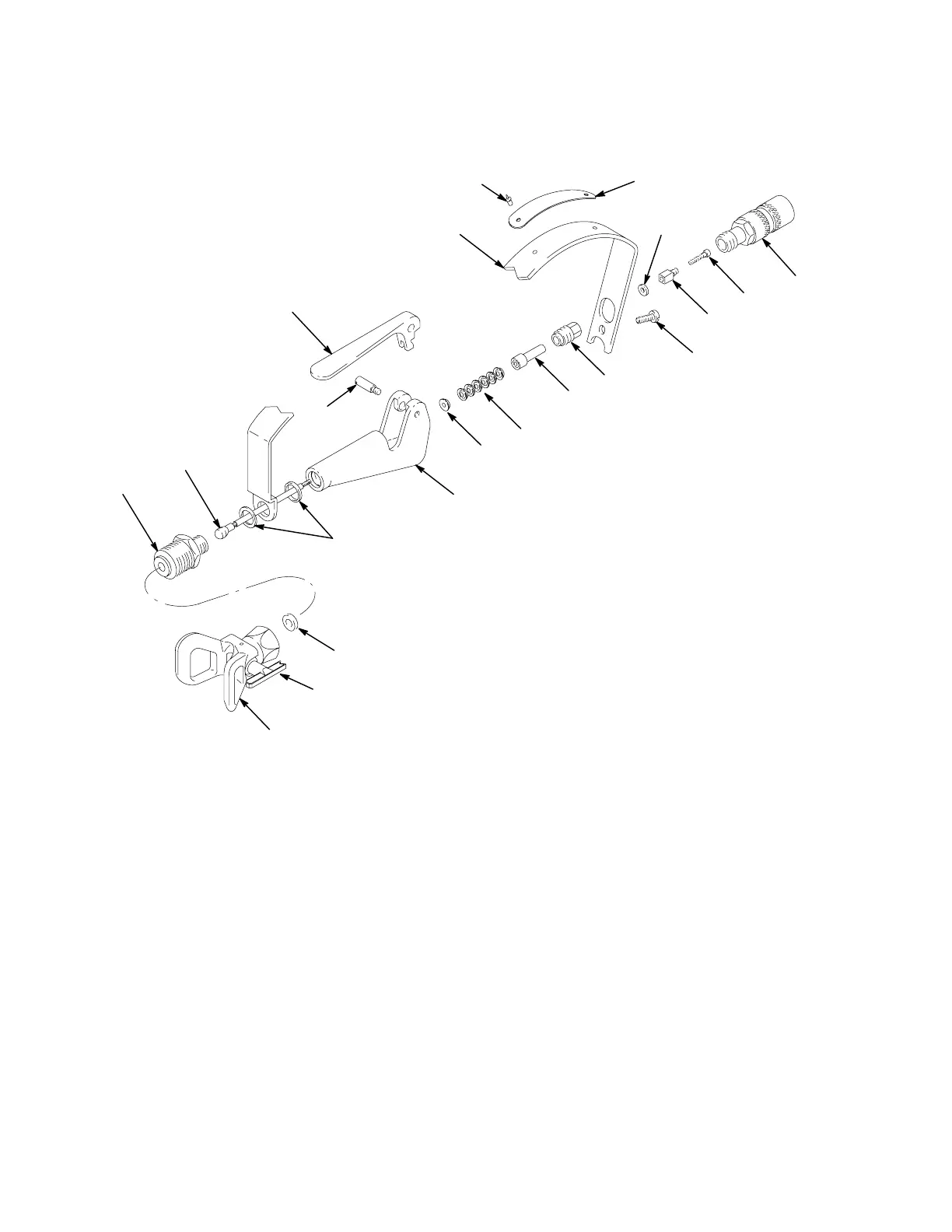

Parts
Model 206408, Series H
7415A
3
26
4
25
9
10
six v-packings
11
12
13
1
2
27
14
15
16
18
19
20
21
22
23
Ref
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 104301 CAPSCREW, soc hd, 5–40
UNC-2a x 0.625” 1
2* 151395 WASHER, flat 1
3* 168845 GASKET, copper 2
4 210170 STOP, needle 1
5† 172479 TAG, warning (not shown) 1
9 165086 SCREW, pivot 1
10* 165672 V-PACKING, PTFE 6
11* 165674 GLAND, packing, female; brass 1
12* 165675 GLAND, packing, male; brass 1
13 165676 NUT, adjusting 1
14 165677 SCREW, packing 1
15 190654 TRIGGER 1
16 165679 HOUSING, gun, control 1
18* 204629 ROD, valve 1
19* 206407 SEAT, valve 1
20 192165 GUARD, trigger 1
21 100037 SCREW, machine, phillips-head;
10–24 UNC-2a x 0.5” 1
22 102299 RIVET 2
23† 170239 PLATE, warning 1
24† 179960 SIGN, warning (not shown) 1
25 166969 WASHER, nylon 1
26 222674 GUARD, tip 1
27 GHDXXX TIP OF CHOICE 1
* Recommended tool box spare parts. Keep these parts on
hand to reduce down time.
† Extra warning tags, plates, and signs area available at no
charge.
