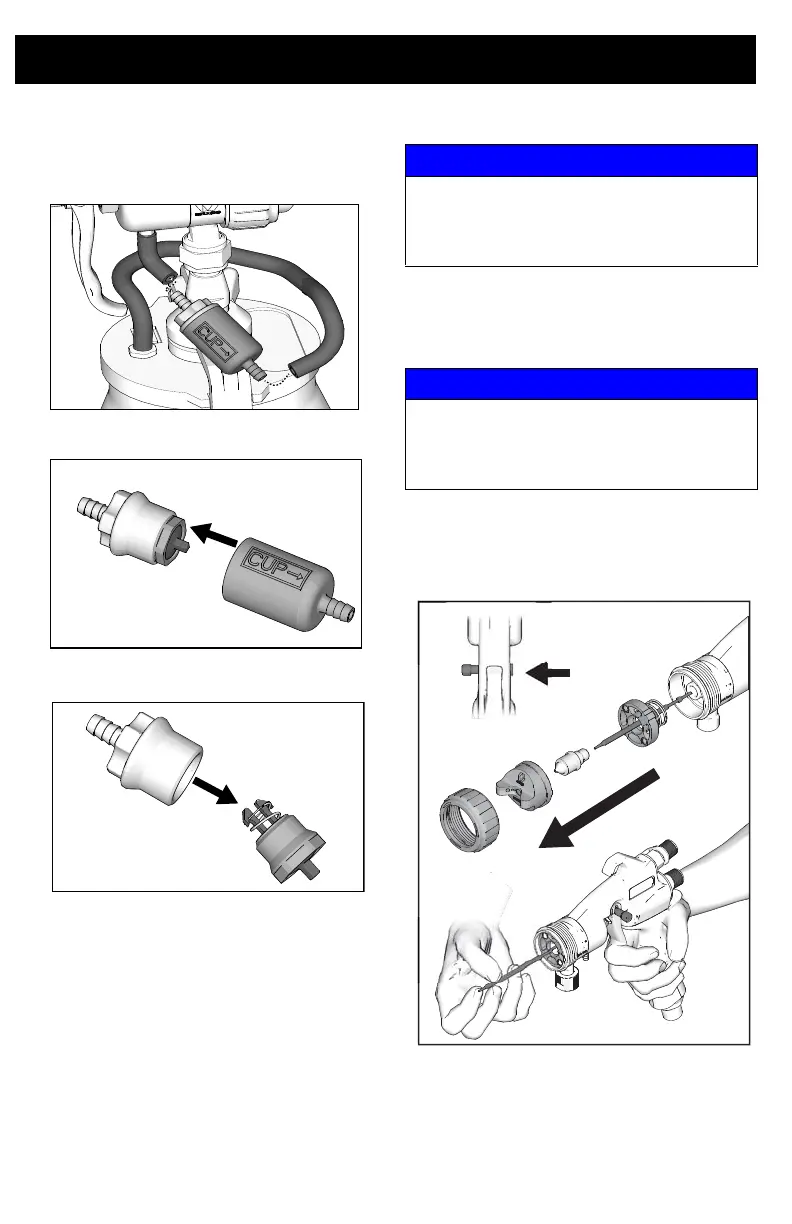

Cleanup
22 3A5097C
Cleaning Quick Clean Check Valve
(Siphon Cup only)
1. Disconnect check valve from gun tubing
.
2. Unscrew check valve.
3. Unscrew poppet valve from check valve.
4. Clean all parts in solvent recommended
by spray material manufacturer.
5. After all parts are dry, apply a light coat
of petroleum jelly on the o-ring.
6. Assemble check valve. Install check
valve to gun tubing. Verify proper
orientation of check valve.
Cleaning HVLP Edge II Gun
1. Remove retaining ring and air cap.
2. Trigger the gun and remove fluid nozzle
from gun.
NOTE: Edge II Plus guns contain air cap
guide and spring held in place by fluid nozzle.
Upon removal of fluid nozzle, set aside air
cap guide and spring.
ti30991a
ti30992a
ti30993a
NOTICE
Strong solvents, such as lacquer thinner,
can damage parts of the HVLP Edge II gun.
Do NOT immerse parts of the HVLP Edge
II gun in solvent.
NOTICE
Trigger the gun whenever removing or
installing the fluid nozzle. This prevents the
fluid nozzle and needle seating surfaces
from being damaged.
ti30850a
