Graco HVLP EDGE II User Manual

Setup
10 3A4980B

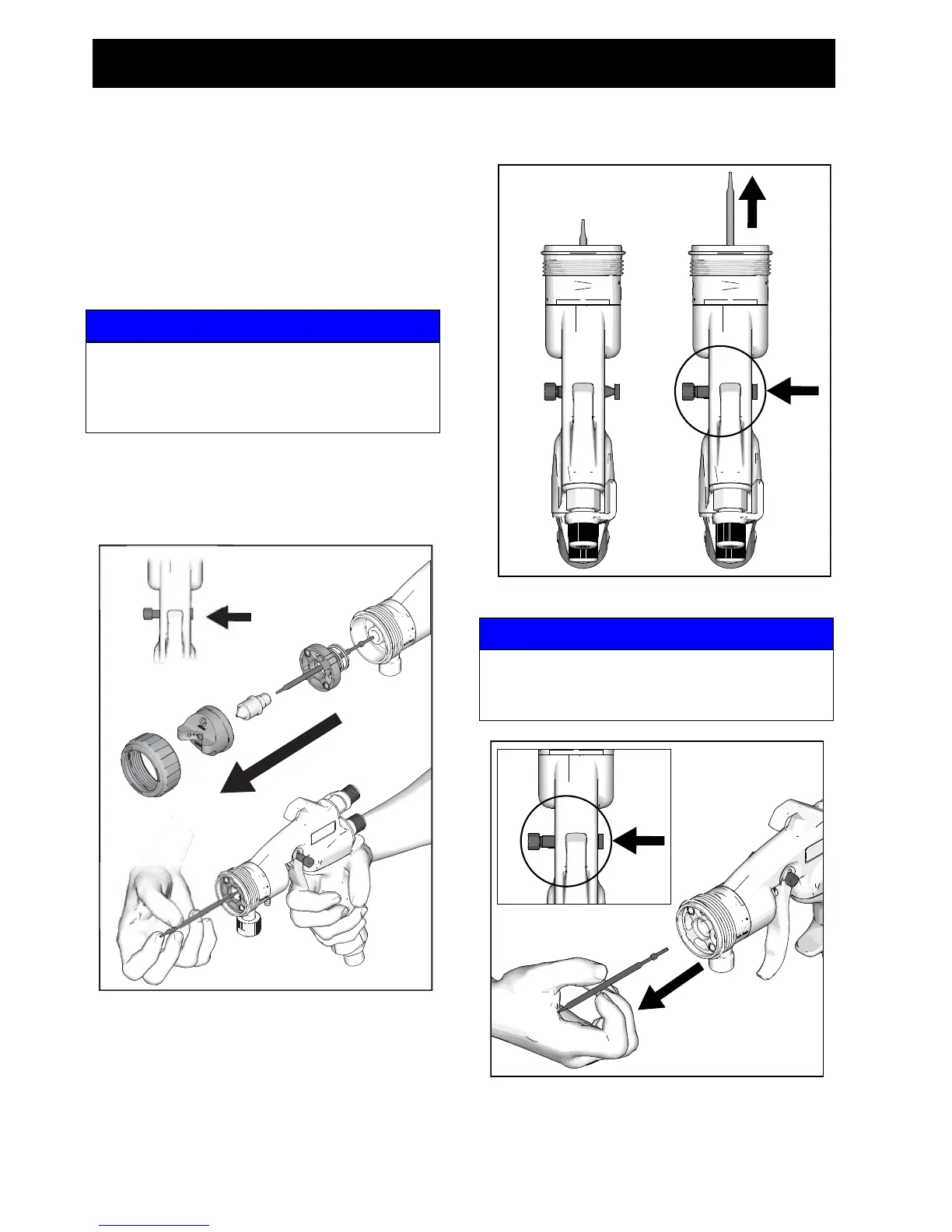

Fluid Set Replacement
Removal
1. Perform Pressure Relief Procedure,
page 8.
2. Remove retaining ring and air cap.
3. Trigger the gun and remove fluid nozzle.
NOTE: Edge II Plus guns contain air cap
guide and spring held in place by fluid nozzle.
Upon removal of fluid nozzle, set aside air cap
guide and spring.
4. Move trigger slide from SPRAY position
(A) to NEEDLE REMOVAL position (B).
5. Remove needle from front of gun.
NOTICE
Trigger the gun whenever removing or
installing the fluid nozzle. This prevents the
fluid nozzle and needle seating surfaces
from being damaged.
ti30850a
NOTICE
Do not use a pliers to remove needle.
Damage to the needle tip will cause leaking
at the fluid nozzle.
ti30851a
SPRAY
Position
NEEDLE
REMOVAL
Position
A
B
ti30852a
