Graco HydraMax 225 - Engine Service Procedures; Engine Removal from Sprayer; Engine Installation onto Sprayer

30937912
Engine
Removal
1. Do Fan Belt, Removal; page 8.
2. Fig. 5. Disconnect all necessary wiring.
3. Fig. 6. Remove four engine mounting fasteners
from underside of engine.
NOTE: All service to the engine must be performed by
an authorized HONDA dealer.

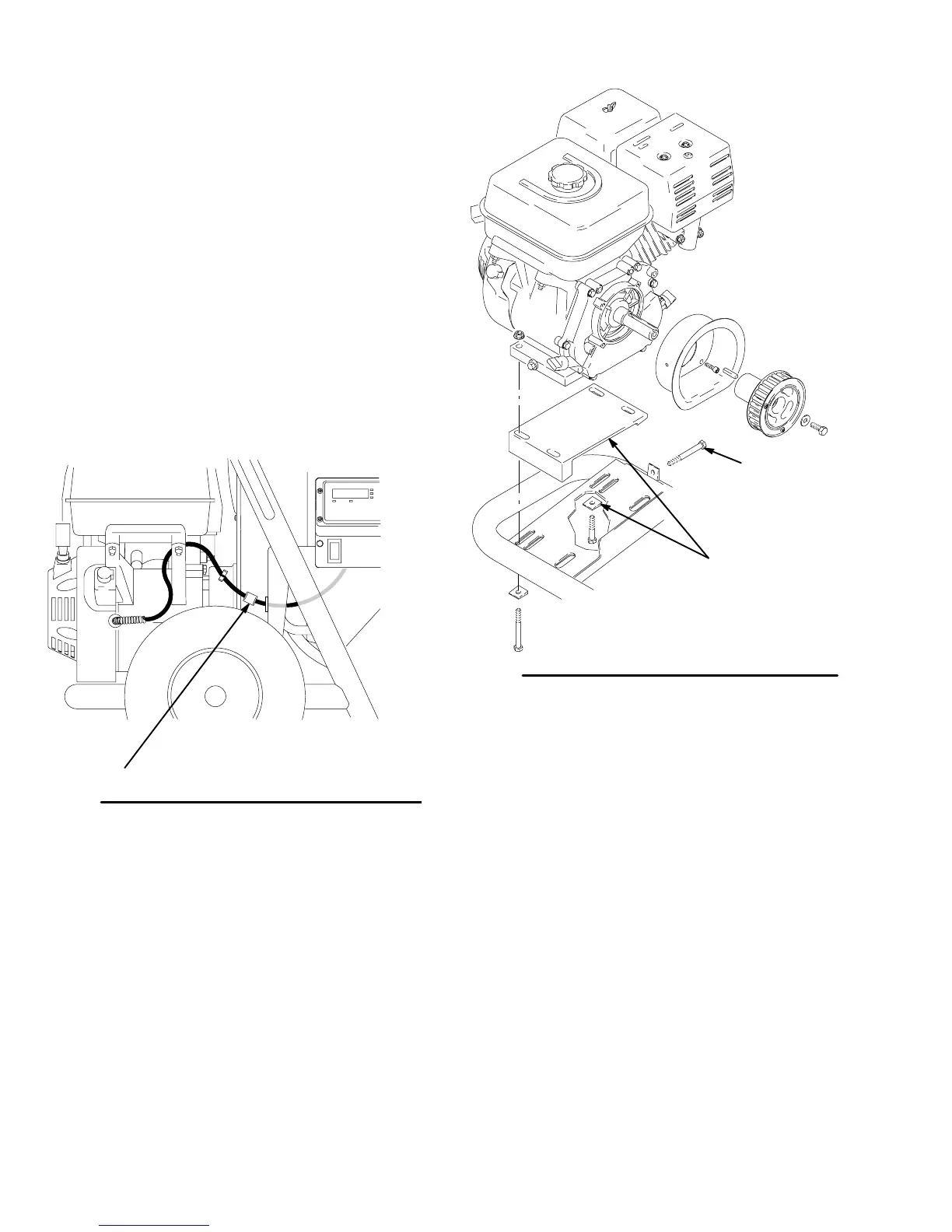

Fig. 5
Disconnect at connector
ti1477a
Fig. 6
Only used on
HydraMax 300
and 350
ti1474a
A
Belt Tension
Adjustment Screw
Installation
1. Fig. 6. Install four engine mounting fasteners on
underside of engine and secure with locknuts (71).
Torque to 200 in-lb (22.6 Nm).
2. Fig. 5. Connect all necessary wiring.
3. Do Fan Belt, Installation; page 8.
