HydraMax Sprayers with Spray Gun and Hoses
HydraMax 225, 300 and 350 Sprayers
Models 233642, 233643, 233651, 233661
Includes items 202 to 202f
Ref
No. Part No. Description Qty
202 KIT, Hose and Gun 1
287043 Models 233642, 233643, 233651 1
244925 Model 233661 1
202a HOSE, 50 ft 1
215245 Model 233661 1
grounded, nylon; 3/8 in. ID;
cpld 3/8 (mbe); 50 foot (15 m);
spring guards both ends
5000 psi (345 bar, 34.5 MPa)
244340 Models 233642, 233643, 233651 1
grounded, nylon; 3/8 in. ID;
cpld, 3/8 npsm(fbe) swivel nut;
50 foot (15 m); spring guards both ends
3600 psi (227 bar, 27.7 MPa)
202b HOSE, 3 ft 1
214912 Model 233661 1
grounded, nylon; 1/4 in. ID;
cpld 1/4 npsm(fbe) swivel;
3 foot (0.9 m); spring guards both ends
5000 psi (345 bar, 34.5 MPa)
244926 Models 233642, 233643, 233651 1
grounded, nylon; 1/4 in. ID;
cpld 1/4 npsm(f) x 3/8 npt(m) swivel;
3 foot (0.9 m); spring guards both ends
3600 psi (248 bar, 24.8 MPa)
202c SPRAY GUN
246240 Models 233642, 233643, 233651
Silver Plus Spray Gun 1
Includes RAC X 517-size SwitchTip
and HandTite Guard
See 309740 for parts
241705 Model 233661
Texture Spray Gun 1
Includes GHD631 Tip
and RAC Tip Guard
See 308491 for parts
202d 150287 Model 233661
COUPLER, 3/8 npt(f) X 1/4 npt(m) 1
202e 156173 Model 233661
UNION, swivel,
3/8 npt(f) X 3/8 npsm(f) in. 1
202f 189018 SWIVEL, 1/4 npsm(f) X 1/4 npsm(m) 1

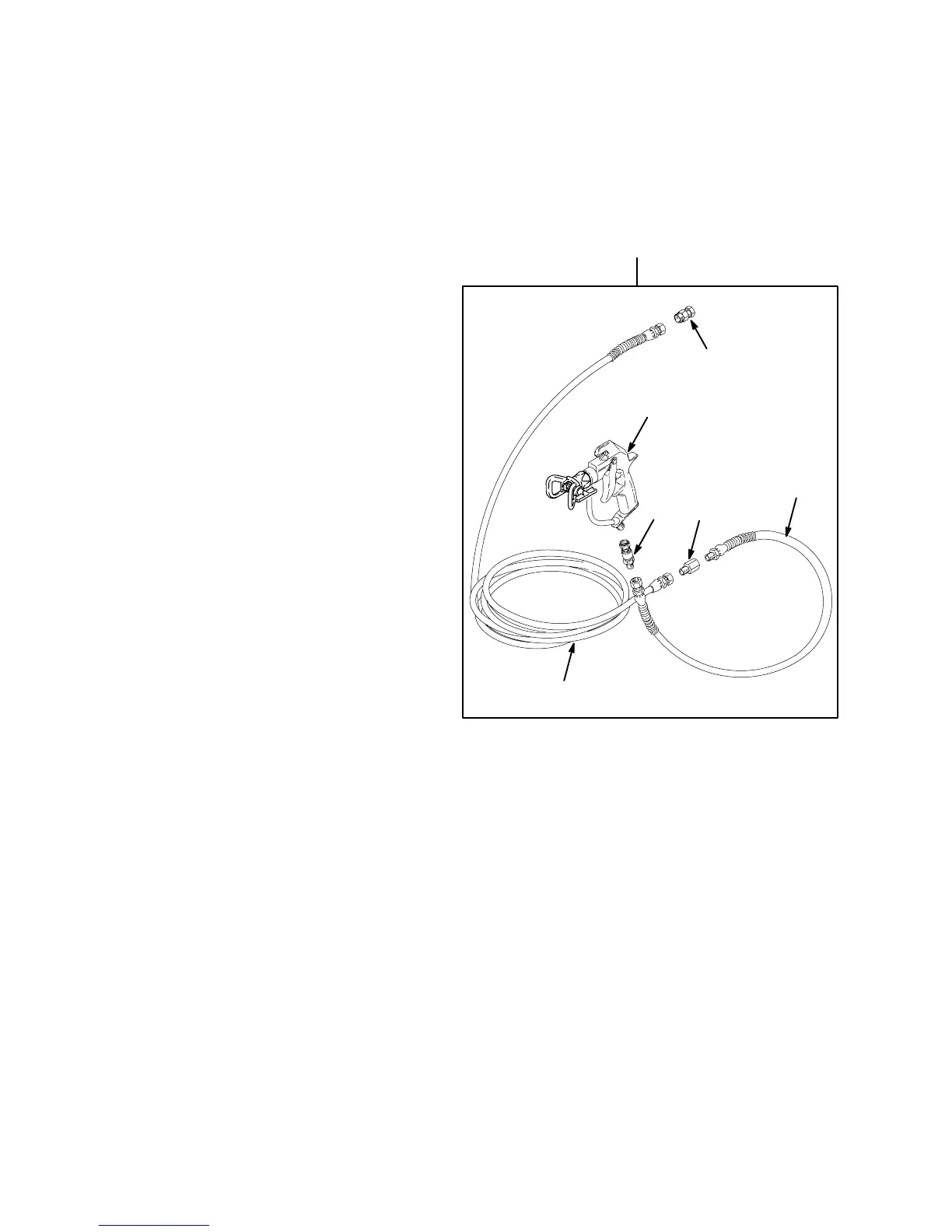

202
202e
202f
202d
202b
202a
202c
