Component Identification
10
Run Screen
Run Screen Variables
Available operating modes vary by setup but will include
“Sh” for predefined shot mode and “Mn” for manual shot
mode. If sequences have been defined, operating mode
options will include “Sq-A”, “Sq-B”, etc. to select any of
the defined sequences. See Change Operating Mode
on page 27.
Shot quantity can be displayed either in cubic centime-
ters or grams depending on whether specific gravity is
entered. See Setup Screen #6: Quantity Units and
Gun Configuration on page 20.
The top and bottom soft key icons indicate the function
of the respective soft key. See Icons section on page 8
for icon descriptions.

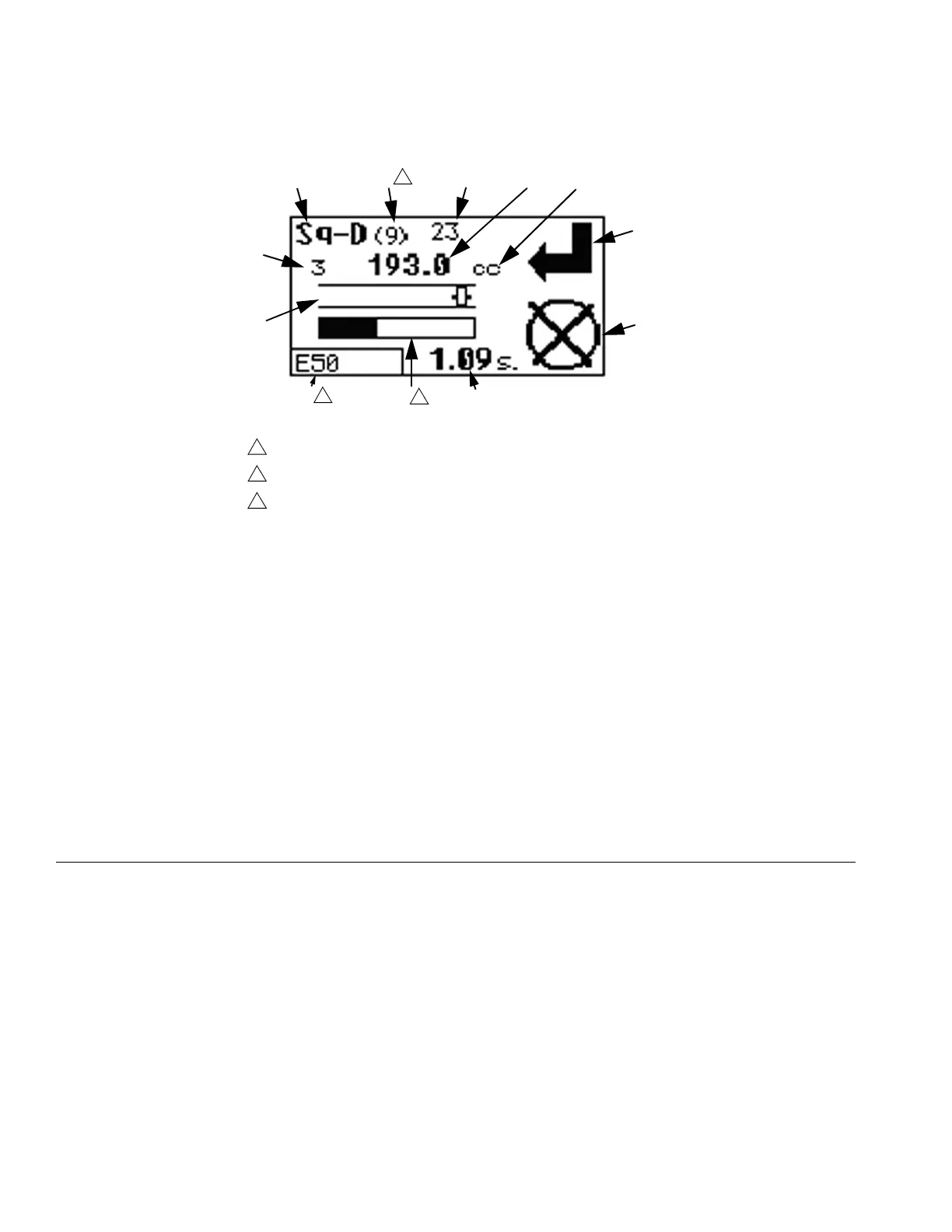

F
IG. 3: Run Screen
BA
BB
BC
BD
BE
BF
BG
BH
BJ
BK
BL
BM
2
1
3
When no errors are active, “E” will be displayed.
Shown only during shot dispensing in Shot or Sequence mode
Displayed only in Sequence mode
1
2
3
Key:
BA Current operating mode
BB
n
th
shot in sequence
BC Number of shots executed for selected shot number
BD Quantity of selected shot (Shot or Sequence modes) or previous shot
(Manual mode)
BE Quantity unit of measure (cubic centimeters or grams)
BF Top soft key icon
BG Bottom soft key icon
BH Duration of selected shot (Shot or Sequence modes) or previous shot
(Manual mode)
BJ Progress bar for current shot
BK Error status
BL Piston position
BM Shot number currently selected
