Graco IPH-25 Series User Manual

Component Identification
7

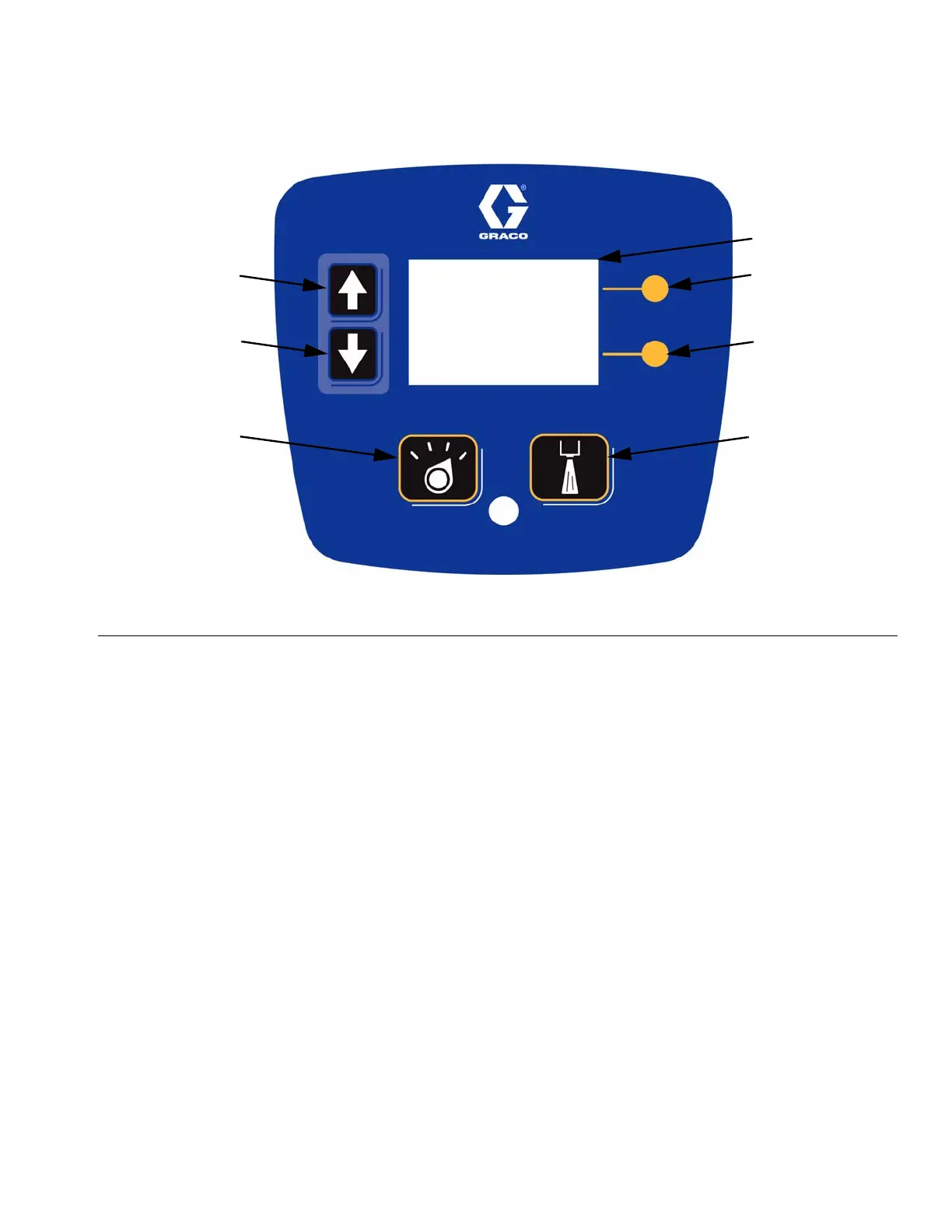

Human Machine Interface (HMI)
Key:
AA Up arrow key
AB Down arrow key
AC Mode select button
AD Top soft key
AE Bottom soft key
AF Initiate shot button
AG LCD screen
Initiate Shot button
Pressing this button will start a shot for either the
selected shot number, the next shot number in the
selected sequence, or when in manual mode will dis-
pense until the user releases the button.
This button is initially set as disabled and can be
enabled or disabled from setup screen #7. See Setup
Screen #7: Enable/Disable Run Screen Shot Editing
or “Initiate Shot” button on page 21.
Mode Select button
Pressing this button will allow selection of an operating
mode. The available choices will always include Shot,
“Sh,” and Manual, “Mn”.
If one or more sequences have been programmed, the
Sequence modes available will show up as the name of
each sequence (“Sq-A,” “Sq-B,” etc.).
F
IG. 2
AA
AB
AD
AF
AG
AE
AC
