Typical Installation
6 313431A
Typical Installation
Overhead-Mounted Hose Reel
Key:
A Main air supply line
B Pump air supply line
CAir filter
D Air regulator
E Bleed-type master air valve (required)
FPump
G Pump grounding wire (required)
H Fluid drain valve (required)
J Fluid shutoff valve
K Fluid line
L Hose reel fluid inlet kit
M Hose reel
N Dispensing valve
P Mounting channel/base
A ground wire (G), bleed-type master air valve (E) and
fluid drain valve (H) are required in your system installa-
tion. These components help reduce the risk of serious
injury, including electric shock and splashing in your eyes
or on the skin.
•The ground wire must be connected to the pump
grounding lug and to a true each ground according to
your local code.
•The bleed-type master air valve relieves air trapped
between this valve and the pump after the air is shut
off. Trapped air can cause the pump to cycle unexpect-
edly Locate the valve close to the pump.
•The fluid drain valve assists in relieving fluid pressure
in the displacement pump, hose and gun. Triggering
the valve to relieve pressure may not be sufficient.

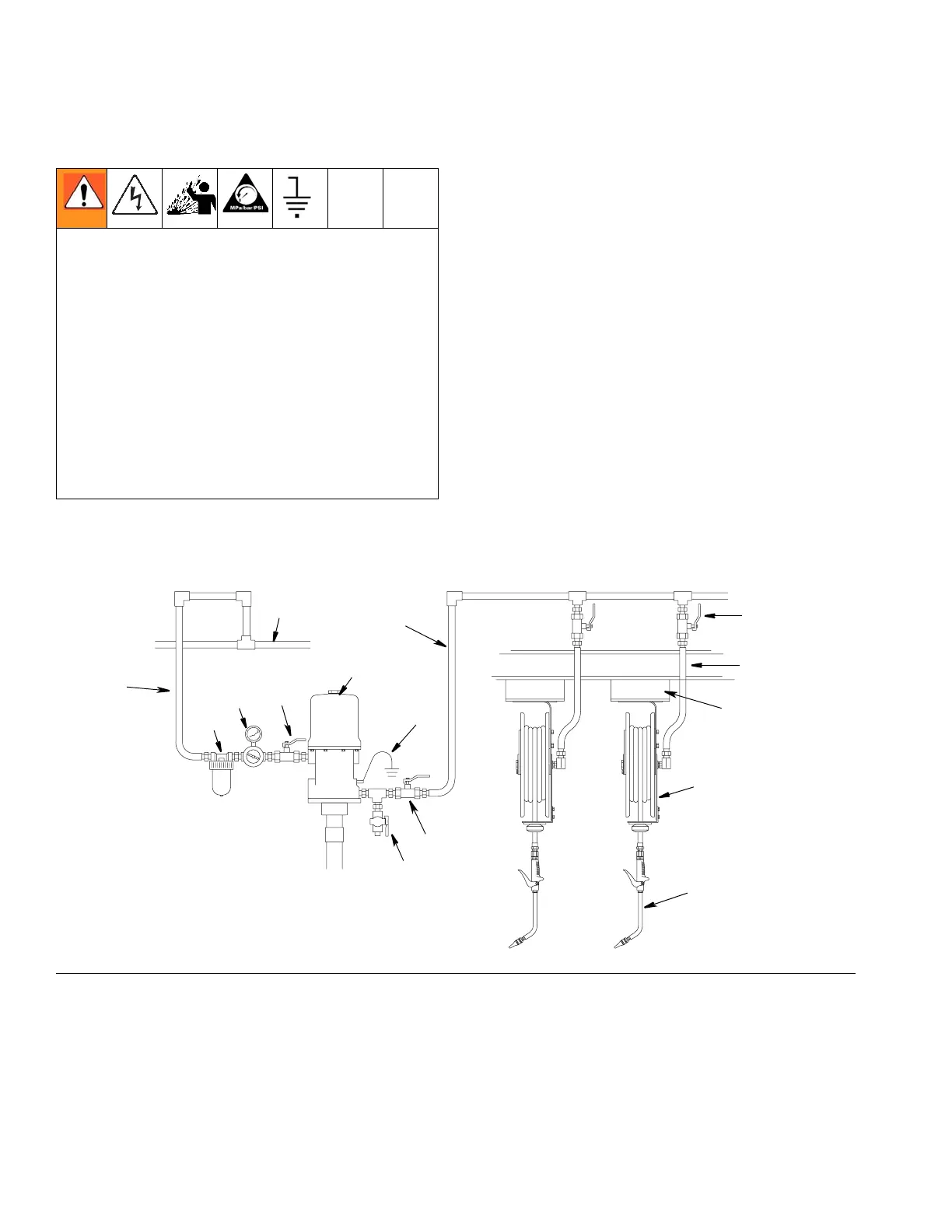

FIG. 1: Typical Installation
03791
A
B
C
D
E
F
G
K
H
J
N
M
P
L
J
