Installation
14 313431A
Wall Mounting
(For HR and HP Model Reels Order Mounting Kit: 24A934, 24A935, 24A936, 24A937, 24A938 or 24A939.
For HS Model Reels Order Mounting Kit: 24A219, 24A220, 24A221, 24A222.)
1. Adjust guide arm to desired position, F
IG. 3, page 8.
2. Select the reel bank mounting location. Mount the
reel to a wall, using the provided template (B) for
laying out the holes you drill.
You can mount the base plate (104) to the wall for
easier installation and removal of the hose reel for
servicing (F
IG. 9).
3. Slide hose reel onto the base plate (104) and install
the hold-down plate (101), washer (103) and cap-
screw (102). Tighten the screw firmly (F
IG. 9).
4. Connect inlet supply line to inlet hose of the reel.
See Hose Installation, page 15.
NOTE:
• None of the hose reels listed in this manual come
with a Hose Inlet Kit.
5. Flush system.
To avoid contaminating the fluid with line-scale,
chips or other installation debris, before
installing
meter or dispense valve to end of hose, flush the
equipment with a compatible solvent such as Stod-
dard solvent or mineral spirits.
a. Secure the end of the hose in a waste bucket.
b. Blow out entire lubricant supply line with air.
c. Pump solvent through line until fluid runs clear
and is debris free.
d. Pump lubricant through line until all solvent is
flushed out.
6. Position hose stop so hose extends far enough for
all operators to reach dispensing valve.
7. Insert screws through hose stop and tighten nuts to
securely hold hose stop in place.
8. Install meter or dispense valve to end of hose follow-
ing instructions provided with the dispense equip-
ment. (NOTE: If installing an enclosure around hose
reel, install the enclosure before installing dispense
valve or meter to hose end.)
9. Adjust spring tension, page 16.
HR and HP Models: Open Channel Mounting Kits HS Models: Mounting Kits
FN Description
24A934
1 Reel
24A935
2 Reels
24A936
3 Reels
24A937
4 Reels
24A938
5 Reels
24A939
6 Reels
24A219
1 Reel
24A220
2 Reels
24A221
3 Reels
24A222
4 Reels
101PLATE, hold down123456
102
SCREW, cap, hex
head
5 1015202530 4 8 1224
103WASHER, lock 5 1015202530 4 8 1224
104 BASE, reel 111111
105 BASE, reel channel 111111
1111

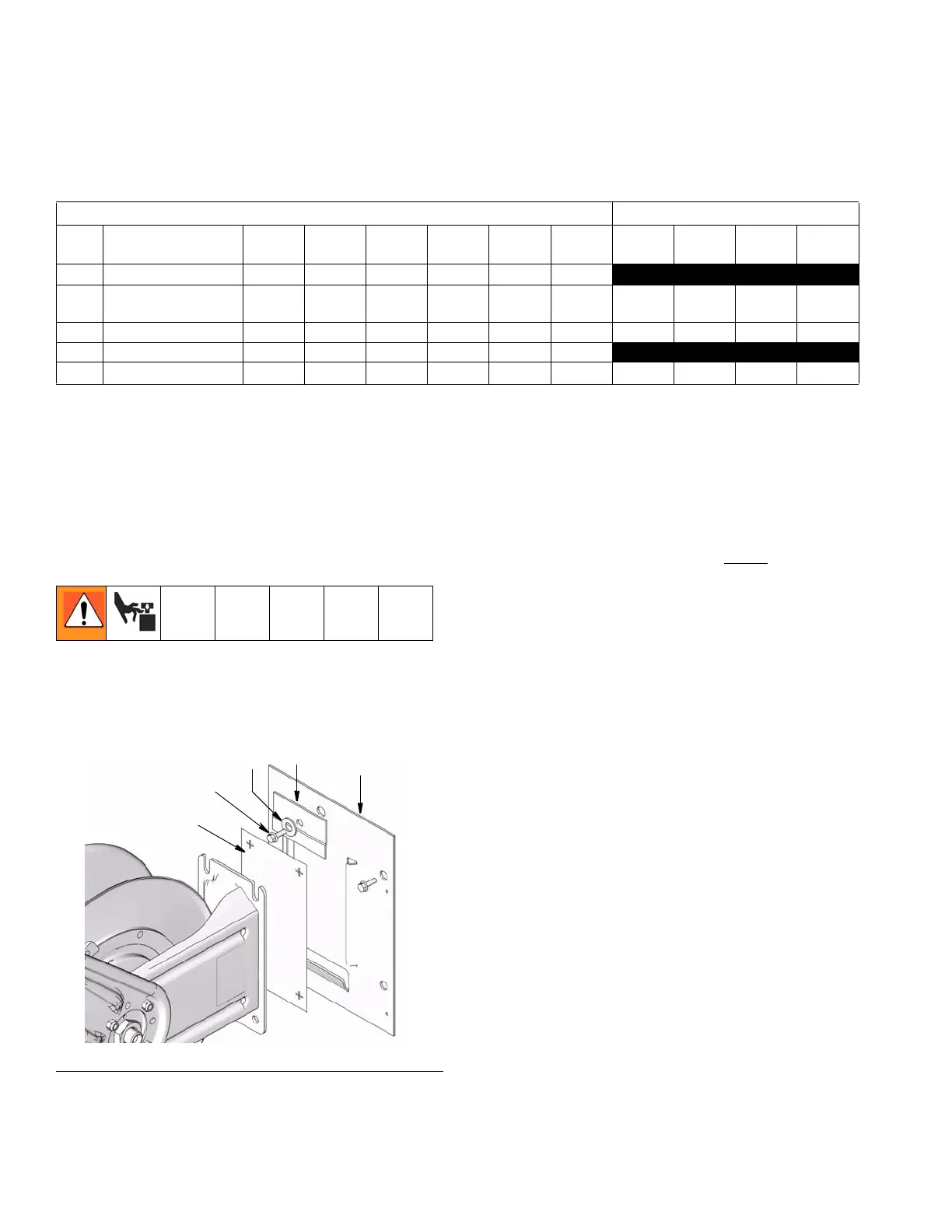

FIG. 9
ti13189
101
104
B
103
102
