Graco LD Series User Manual

Installation
313431A 13

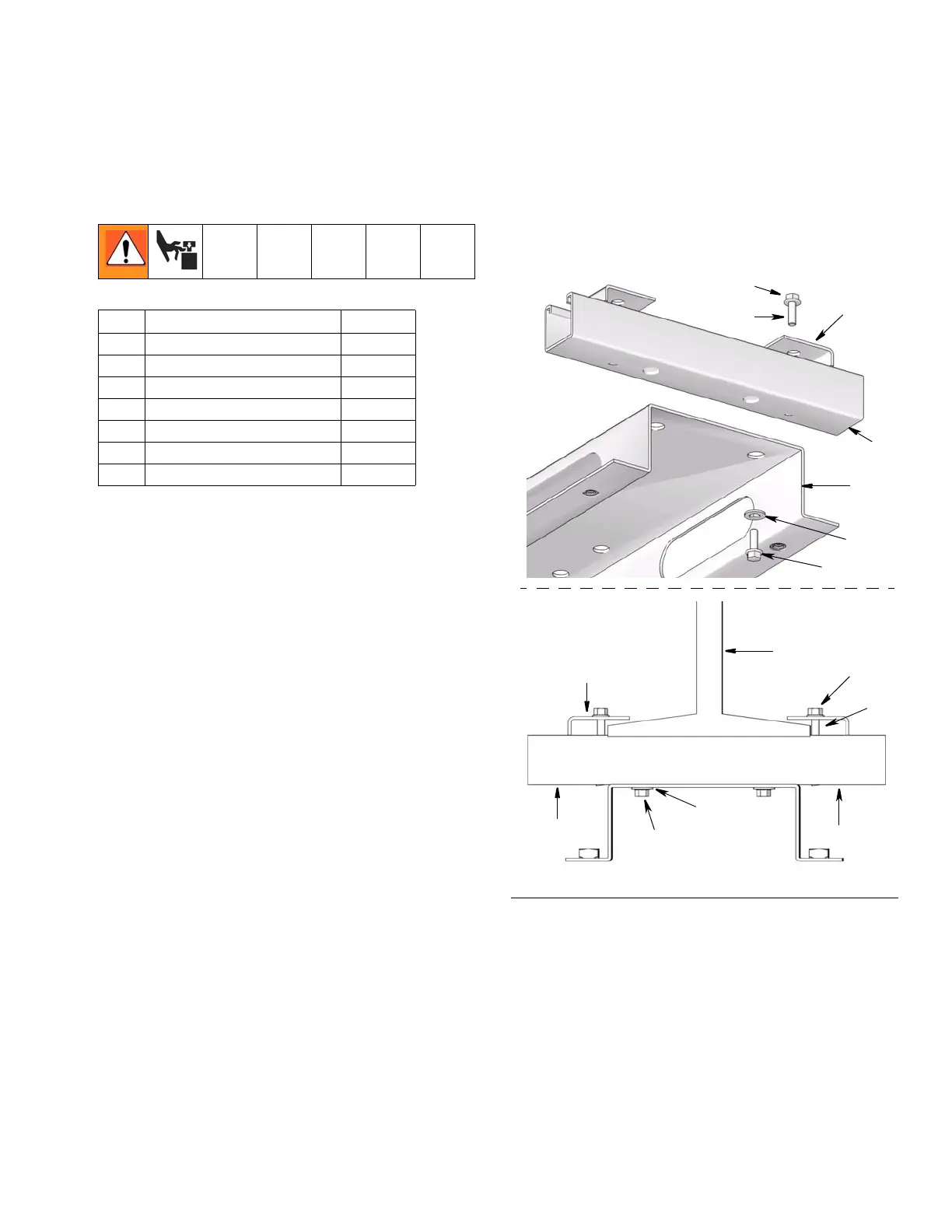

Ceiling Mounting to I-Beam without Drilling Holes - All models
(Order Mounting Bracket Kit: 204741 for open or enclosed reels.)
NOTE: For mounting 1-3 reels, two kits are required. For mounting 4-6 reels, three kits are required.
1. Secure mounting brackets (D) to the channel. Use
two mounting brackets for each 1- to 3 capacity
mounting channel (103). (Use 3 brackets for 4-6 reel
channels.)
2. Position the adjustable clamps (206) of the mount-
ing brackets over the I-Beam (A), and tighten them
securely (F
IG. 8).
3. HR and HP Model Reels only (F
IG. 6, page 11):
Slide hose reel onto the base plate (104) and install
the hold-down plate (101), washer (103) and cap-
screw (102). Tighten the screw firmly.
NOTE: For enclosed reels, use the Enclosure Kit Base
Plate (Part No. 302, page 18).
4. If you are installing permanent supply lines, drill 1.5
in. (38 mm) diameter holes through the ceiling
toward the inlet side of the reels.
5. Continue installation following steps 5 - 10 of Over-
head Installations instructions, beginning on page 9.
FN Description Qty
201 WASHER, lock, spring 2
202 SCREW, cap, hex head 2
203 SCREW, cap, hex head 2
204 NUT (not shown) 2
205 NUT, spring clamp 2
206 CLAMP, beam 2
207 CHANNEL, unistrut 1
FIG. 8
A
D
ti13187
207
206
203
201
202
205
103
206
D
203
205
201
202
ti13188
