Ceiling Mounting Directly to an I-Beam - HR & HP Models Only
1. Using the template (B), provided, drill holes in the
I-Beam (C) (F
IG. 7).
2. Bolt reel to I-Beam.
3. If you are installing permanent supply lines, drill 1.5
in. (38 mm) diameter holes through the ceiling
toward the inlet side of the reels.
4. Continue installation following steps 5 - 10 of Over-
head Installations instructions, beginning on page 9.

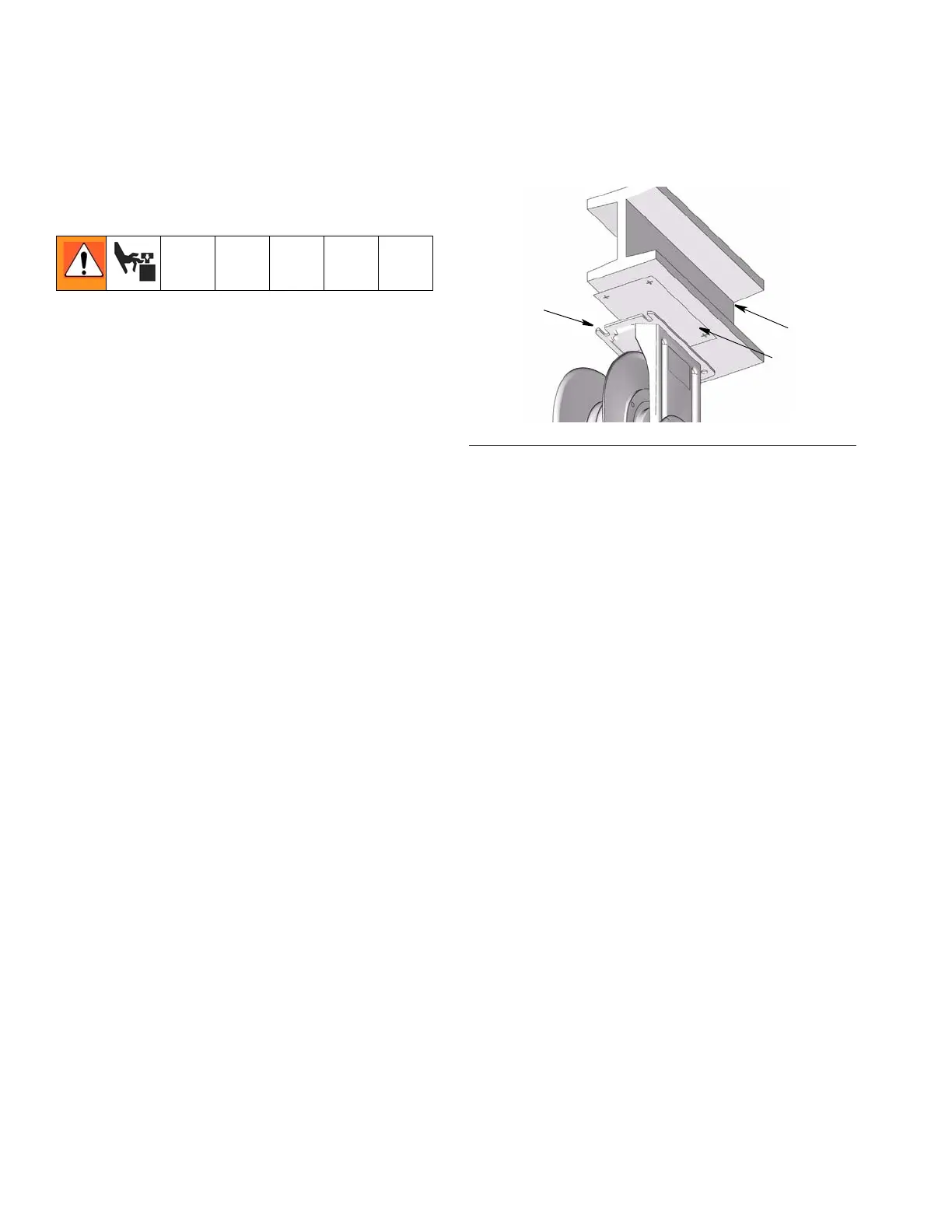

FIG. 7
A
B
C
ti13186
