Other Mounting Options
Ceiling Mounting Without an I-Beam - Open Channel (All Models)
(For HR and HP Model Reels Order Mounting Kit: 24A934, 24A935, 24A936, 24A937, 24A938 or 24A939. For HS
Model Reels Order Mounting Kit: 24A219, 24A220, 24A221, 24A222.)
1. Install the mounting channel (105) and (HR & HP
Models) base plate (104) as shown in F
IG. 6.
2. Slide hose reel into the base plate (104) and install
the hold-down plate (101), washer (103) and cap-
screw (102). Tighten the screw firmly (F
IG. 6, page
11).
3. If you are installing permanent supply lines, drill 1.5
in. (38 mm) diameter holes through the ceiling
toward the inlet side of the reels.
4. Continue installation following steps 5 - 10 of Over-
head Installations instructions, beginning on page 9.
HR and HP Models: Open Channel Mounting Kits HS Models: Mounting Kits
FN Description
24A934
1 Reel
24A935
2 Reels
24A936
3 Reels
24A937
4 Reels
24A938
5 Reels
24A939
6 Reels
24A219
1 Reel
24A220
2 Reels
24A221
3 Reels
24A222
6 Reels
101PLATE, hold down123456
102
SCREW, cap, hex
head
5 1015202530 4 8 1224
103WASHER, lock 5 1015202530 4 8 1224
104
BASE, reel (HR & HP
Models Only)
111111
105 BASE, reel, channel 111111
1111

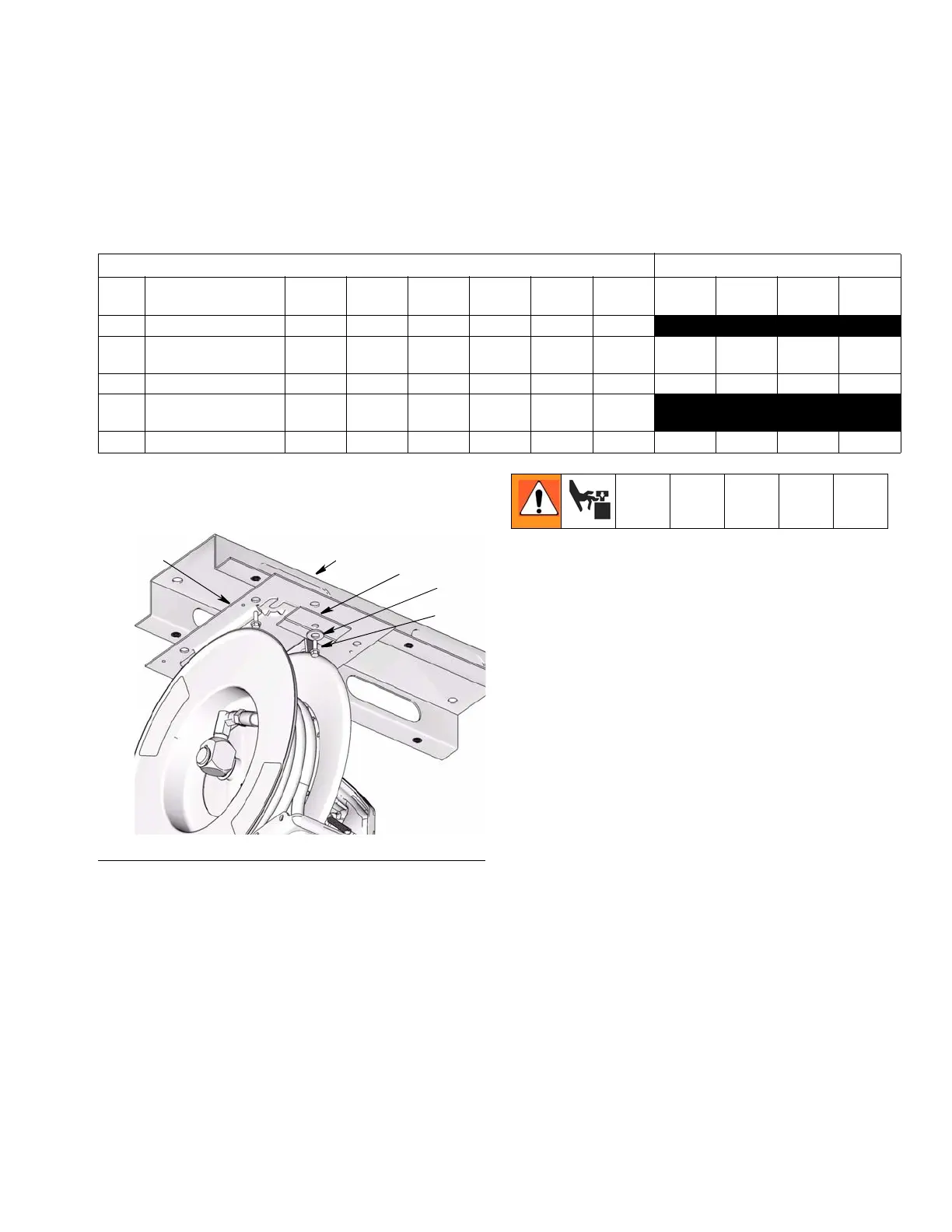

FIG. 6
105
103
102
101
104
ti13185
