7309404
Battery/Light Regulator
Regulator
The regulator is located under the seat and converts the
engine-generated ac voltage into a dc voltage for the bat-
tery and light.
Removal
1. Fig. 5. Unplug light cord (59) and disconnect leads
(A, B).
2. Remove bolt (77) and nut (76) and regulator (126).
Installation
1. Fig. 5. Install regulator (126) with bolt (77) and nut
(76).
2. Connect leads (A, B) and plug in light cord (59).
Battery Kit
The battery is located under the seat and stores the con-
verted dc voltage for the battery and light.
Use only Graco Battery 115753. Install according to
Manual 309406.
Important: Do not install other 12 Volt equipment without
first installing Graco Battery Kit 245343.

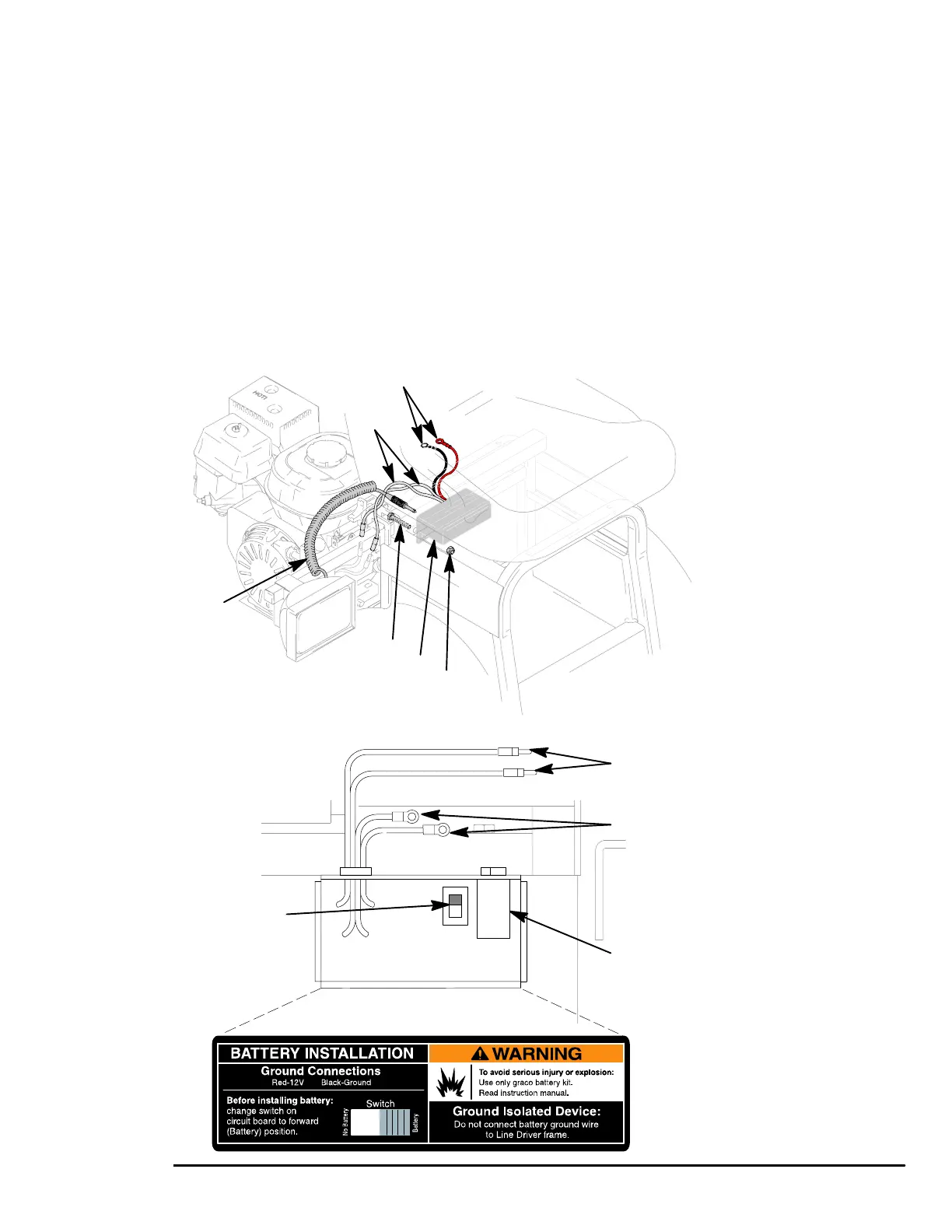

Fig. 5
A To Battery
(optional)
B
59
77
126
76
(126) Bottom View
(59) Light Jack
(A) Use Only for Graco
Battery Kit 245343
(B) Connects to Honda
Engine Alternator (70 Watt)
Switch
(no battery)
position
ti1656a
