Graco Magnum LTS 15 Repair Manual

Parts
38 332695C

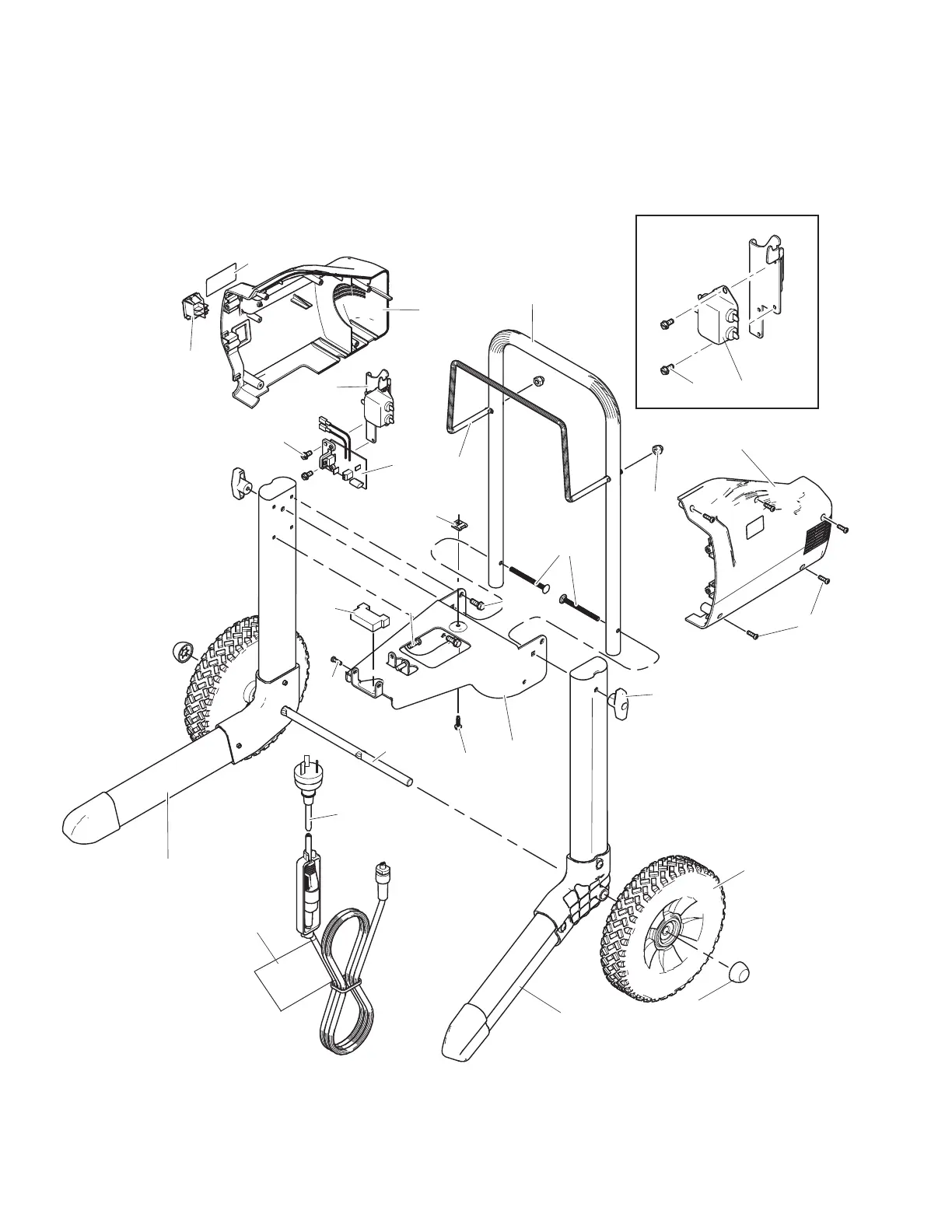

Magnum LTS 17 Frame
Model 16W121
53
21
10
1111
54
56
52
20
22
51
6
61
57
60
10
59
202
12
28
109
11
54
55
55
4
64
107
58
71
65
65
ti22522a

Graco Magnum LTS 15 Specifications

General

Type	Airless Paint Sprayer
Maximum Tip Size	0.015 inches
Maximum Pressure	3000 psi
Power Source	Electric
Voltage	120V
Maximum Hose Length	75 feet
Flow Rate	0.27 GPM
Application	Interior and Exterior
Spray Tip	515
